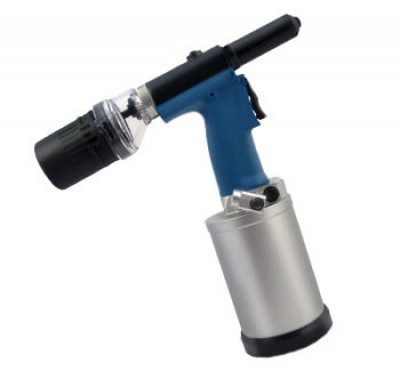

Blue Pneumatic Riveting Tool BP-4V

Add to Wishlist
Part# 12-03385
MFR Model# BP-4V


Meet the new generation of riveting tools. The BP-4V riveter is a combination of all the most useful features. The BP-4V riveting tool has the best weight to power ratio in the industry, boasting 3500lbs of pulling force.

It can set 1/8,5/32, 3/16 and 1/4 rivets in all Alloys, including Monobolt and Magna-lok structural rivets, most in one stroke.The BP-4V Rivet Gun is super light weight, allowing the rivet gun to be operated continually with great comfort. The rivet tool is expertly designed too. Look no further for the best in ergonomics, balance and comfort. This tool has a convenient, thumb-operated on/off vaccum control switch to control compressor air consumption while it holds the rivet in place in the nose tip. Rivet tool comes complete with nose tips for 1/8, 5/32, 3/16 and 1/4. Also included are wrenches for service and oil applicator. Recommended operating air pressure is 80-95psi. Weight 3.6 lbs.


The sucking for the stems works well. Sometimes you must pull the trigger a couple of times to get the rivet set. Other times, one pull of the trigger and the rivet is set. Not sure why the difference. The gun works upside down and all positions I have put it in. There are no instructions on use, maintenance or repairs, only an exploded parts diagram. This is my only complaint and loss of a star.

Blake J
August 14, 2020


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this Blue Pneumatic BP4V work with cherryMax rivets?

Per vendor: Yes, it will.
