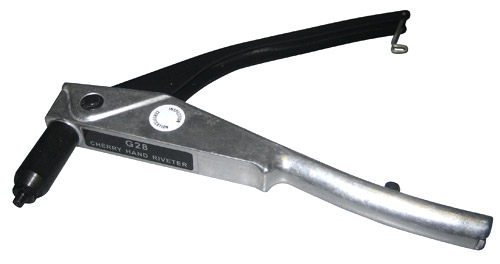

|The Cherry® G-28 is a lightweight (13 oz.) ruggedly compact hand tool designed to efficiently set a broad range of Cherry® commercial rivets. A unique torsion spring keeps the lever arm in place, ready to accept rivet after rivet. The G-28 comes with two popular size nosepieces, 728A9-4 (to set Cherry® N Rivets - 1/8" dia. & Cherry® Q Rivets - 1/8" dia.) and 728A9-6 (to set Cherry® N Rivets - 5/32" & 3/16" dia. & Cherry® Q Rivets - 5/32" & 3/16" dia.), one of which is stored securely out of the way in the riveter handle.|
Vans had indicated that you dont really need to buy the expensive Cherry rivet puller to set the CherryMax rivets on an RV-12 if you use good technique and a cheap riveter from the hardware store. Maybe, I did both and was VERY unhappy with the 4-8 rivets on the important center section in the fuselage. At $1 apiece, you dont want to mess up CherryMax rivets, especially if youre a perfectionist. Having done so, however, I caved and bought this tool. Every rivet was PERFECT. Not just good or within tolerances. PERFECT.
Internal part of the head cracked in half after pulling about 4 cherry Max rivets. Ordered a second G28 hoping for better luck. Will try to return the broken one. Worked great for the first 3 rivets.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, this G28 gun can not be used for inistalling Cherrymax rivets. You will need to get a hydraulic gun like p/n 12-03004 to install these 3/16" Cherrymax rivets, CR3242-6-02.
Our Part# 12-03000 is the G-28 model.
This is for Cherry commercial rivets. The G27 puller will set 1/8 diameter Cherrymax rivets.
This will only pull commercial rivets. Normal "Pop" style and non structural Cherry brand. It will not pull CherryMax rivets.
None of these pullers will pull that rivet. You will need a G704B with a H701B-456.
N rivets are break mandrel rivets and Q rivets are structural self plugging rivets.
