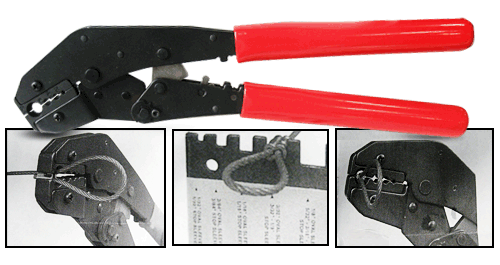

Locococ #1-3-SBHS Hand Swager – This tool is an outstanding small hand tool, and it does a great job of swaging small sleeves. This is a (4) cavity tool, swaging sleeve sizes 1/32”, 3/64”, 1/16”, 3/32” and #12 SEISMIC.
Ratchet mechanism will not release until swage is complete. Swages copper and aluminum sleeves only. Usage instructions and swage gauge included in each tool. Each LOCOLOC Swager is supplied with a gauge. Application: Copper Oval Sleeves, Copper Oval Plated Sleeves and Aluminum Oval Sleeves
WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov
Solidly built and works well just be sure the screws, holding each jaw insert, are tightened securely to avoid slippage and a sub-standard crimp.
1-3SBHS HANDSWAGER TOOL
This is an excellent tool. It has been producing perfectly on cable and electrical terminals and is going to last for many years. Absolutely worth the investment to get good work done quickly and correctly the first time.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The dimensions of the holes when closed are:
3/32 Sleeve hole = .235"
1/16 Sleeve hole = .17"
3/64 Sleeve hole = .142"
1/32 Sleeve hole = .09"
No, this tool cannot swage the MS20664C-3 cable terminal.
