Cherry Nut - Plate Riveter G702A

$1779.00/Each
Quantity
Add to Wishlist
Part# 12-02985
MFR Model# G702A

Overview

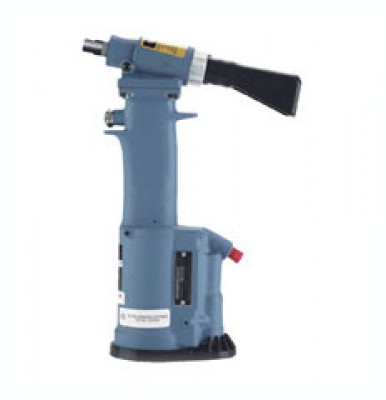

The G702A is a pneumatic-hydraulic tool designed specifically for installation of nut plate rivets. Its durable, all metal housing makes this tool ideal for use in rugged shop environments.

The H702-3NPR pulling head fits directly on the tool to install -3, -4, 2.5 mm & 3mm nut plate rivets.

10° angled head allows user to work using a natural hand position. A comfortable grip for one handed operation in any position.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Air Pressure: 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.
  • Cycle Time: approximately one second
  • Noise Level: 71 dB (A)
  • Vibration: less than 2.5 m/s2
  • Air Consumption: .09 SCF / cycle (2.55 L / cycle)
  • Stroke: 3/4"
  • Pulling Force: 1,100 lbs (499 kgs)
  • Weight: 3.5 lbs

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the Cherry G702A nut plate riveter come with a pulling head included?

The G702A does not come with any pulling heads, they are to be purchased separately.
