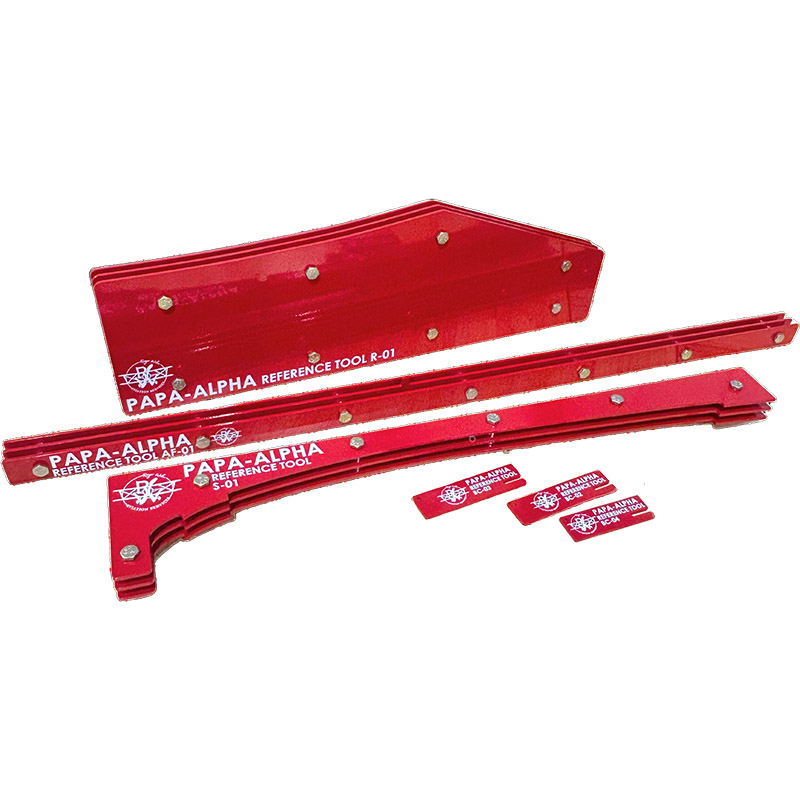

Roger Wilco Aviation Services - Papa-Alpha Rigging Kit
From $264.95 to $1464.00
| Kit Number | Kit Components | PN | Price | Buy |
|---|---|---|---|---|
| KT-01 | R-01, BC-01, S-01 | 13-26294 | $579.00 | |
| KT-02 | R-02, BC-01, S-02 | 13-26295 | $699.00 | |
| KT-03 | R-02, BC-01, S-01 | 13-26296 | $669.00 | |
| KT-04 | BC-02, S-03 | 13-26297 | $264.95 | |
| KT-05 | BC-02, S-04 | 13-26298 | $279.95 | |
| KT-06 | R-03, BC-03, S-05, AF-01 | 13-26299 | $999.00 | |
| KT-07 | R-04, BC-06, S-05, AF-1 | 13-26300 | $999.00 | |
| KT-08 | R-04, BC04, S-05, AF-1 | 13-26301 | $999.00 | |
| KT-09 | R-05, BC-04, S-05, AF-01 | 13-26302 | $999.00 | |
| KT-10 | R-10, BC-06, S-05, AF-01 | 13-26303 | $999.00 | |
| KT-11 | R-04, BC-05, S-05, AF-01 | 13-26304 | $999.00 | |
| KT-12 | R-06, BC-07, S-05, AF-01 | 13-26305 | $1175.00 | |
| KT-13 | BC-02, S-03, A-01 | 13-26306 | $469.00 | |
| KT-14 | BC-02, S-06, A-01 | 13-26307 | $469.00 | |
| KT-15 | R-07, BC-08, AE-01 | 13-26308 | $1149.00 | |
| KT-16 | R-07, BC-08, AE-01, RT-01 | 13-26309 | $1464.00 | |
| KT-17 | R-07, BC-08, AE-01, RT-02 | 13-26310 | $1423.00 | |
| KT-18 | R-03, BC-04, S-05, AF-01 | 13-26311 | $999.00 | |
| KT-19 | R-03, BC-05, S-05, AF-01 | 13-26312 | $999.00 | |
| KT-20 | R-08, BC-03, S-05, AF-01 | 13-26313 | $1175.00 | |
| KT-21 | R-09, BC-03, S-07, AF-01 | 13-26314 | $1197.00 | |
| KT-22 | R-09, BC-09, S-07, AF-02 | 13-26315 | $1197.00 | |
| KT-23 | R-08, BC-06, S-05, AF-01 | 13-26316 | $1175.00 |
- JUMP TO
- Overview
- Reference Chart
- Reviews
- Q&A
Overview
|
Everything you need for professional Piper control surface rigging packaged in one streamlined kit. This set includes all currently available Papa Alpha tools to your applicable airframe: aileron bellcrank rigging tools, rudder alignment tools, and stabilator rigging fixtures, and rudder and elevator trim tools if applicable. Each tool is CNC-machined from aircraft-grade aluminum, powder coated for durability, and built using critical measurements from original Piper drawings, with modern enhancements for improved usability and accuracy.
Every tool features thoughtful upgrades like steel plates for digital protractor compatibility and weight-reducing design modifications, all tested and trusted by real working shops. Note: Kit contents do vary depending on aircraft model applicability. Please refer to our chart for airframe-specific tool coverage. Kit contents are at the bottom of the chart. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reference Chart
| Aircraft | S/N | KIT |
|---|---|---|
| PA-23-160 | 23-1 thru 23-2046 | N/A |
| PA-23-235 | 27-1 thru 27-504 | KT-01 |
| PA-23-250 | 27-2000 thru 27-4916 | KT-01 |
| PA-23-250 | 27-7304917 thru 27-7554168 | KT-01 |
| PA-23-250 | 27-7654001 thru 27-7954121 | KT-02 |
| PA-23-250 | 27-8054001 thru 27-8154030 | KT-03 |
| PA-23-250 | 27-505 thru 27-622 | KT-01 |
| PA-24-180/250 | 24-1 thru 24-3687 | KT-04 |
| PA-24-260 | 24-4000 thru 24-5041 | KT-04 |
| PA-24-400 | 26-3 thru 26-148 | KT-05 |
| PA-28-140 | 28-20002 thru 28-26946 | KT-06 |
| PA-28-140 | 28-7125001 thru 28-7725290 | KT-06 |
| PA-28-150 | 28-1 thru 28-4377 | KT-06 |
| PA-28-151 | 28-7415001 thru 28-7715314 | KT-07 |
| PA-28-160 | 28-1 thru 28-4377 | KT-06 |
| PA-28-161 | 2841001 thru 2841364 | KT-07 |
| PA-28-161 | 2816001 thru 2816109 | KT-07 |
| PA-28-161 | 28-7716001 thru 28-8616057 | KT-07 |
| PA-28-161 | 2842001 thru 2842420 | KT-07 |
| PA-28-161 | 2816110 thru 2816119 | KT-08 |
| PA-28-180 | 28-671 thru 28-5859 | KT-06 |
| PA-28-180 | 28-7110001 THRU 28-7710089 | KT-06 |
| PA-28-181 | 2843001 thru 2843999 | KT-08 |
| PA-28-181 | 2881001 and up | KT-08 |
| PA-28-181 | 28-7690001 thru 28-8690056 | KT-09 |
| PA-28-181 | 2890001 thru 2890205 | KT-09 |
| PA-28-181 | 2890206 thru 2890231 | KT-09 |
| PA-28-181 | 28020001 and up | KT-08 |
| PA-28-201T | 287921001 thru 287921095 | KT-07 |
| PA-28-235 | 28-10003 thru 28-11378 | KT-06 |
| PA-28-235 | 28-7110001 thru 28-7710089 | KT-06 |
| PA-28-236 | 2811001 thru 2811050 | KT-06 |
| PA-28-236 | 28-7911002 thru 28-8611009 | KT-06 |
| PA-28R-180 | 28R-30005 thru 28R-31270 | KT-06 |
| PA-28R-180 | 28R-7130001 thru 28R-7130013 | KT-06 |
| PA-28R-200 | 28R-35001 thru 28R-35820, and 28R-30482 | KT-06 |
| PA-28R-200 | 28R-7135001 thru 28R-7635462 | KT-06 |
| PA-28R-201 | 2837001 thru 2837061 | KT-11 |
| PA-28R-201 | 28R-7737001 thru 28R-7837317 | KT-11 |
| PA-28R-201 | 2844001 and up | KT-07 |
| PA-28R-201 | 28R-7918002 thru 28R-8218026 | KT-12 |
| PA-28R-201T | 2803001 thru 2803015 | KT-11 |
| PA-28R-201T | 28R-7703002 thru 28R-7803372 | KT-11 |
| PA-28RT-201T | 2831001 thru 2831038 | KT-12 |
| PA-28RT-201T | 28R-7931002 thru 28R-8631004 | KT-12 |
| PA-30 | 30-2 thru 30-901, less 30-853 | KT-13 |
| PA-30 | 30-853 and 30-902 thru 30-1744, less 30-1717 | KT-13 |
| PA-30 | 30-1717 and 30-1745 thru 30-2000 | KT-14 |
| PA-31-300 | 31-228 thru 31-511 | KT-15 |
| PA-31-310 | 31-5 thru 31-900 | KT-15 |
| PA-31-310 | 31-7300901 thru 31-7512072 | KT-15 |
| PA-31-325 | 31-7512006 thru 31-8312019, and 31-7400990 | KT-15 |
| PA-31-350 | 31-5001, 31-5002, 31-5003 | KT-15 |
| PA-31-350 | 31-7305005 thru 31-8452021 | KT-15 |
| PA-31-350 T1020 | 31-8253001 thru 31-8453021 | KT-16 |
| PA-31P | 31P-3 thru 31P-80 | KT-17 |
| PA-31P | 31P-7300110 thru 31P-7730012 | KT-17 |
| PA-31P-350 | 31P-8414001 thru 31P-8414050 | KT-16 |
| PA-31T | 31T-7400002 thru 31T-7720069 | KT-16 |
| PA-31T | 31T-7820001 thru 31T-8120104 | KT-16 |
| PA-31T1 | 31T-7804002 thru 31T-8104101 | KT-16 |
| PA-31T1 | 31T-8304002 thru 31T-1104017 | KT-16 |
| PA-31T2 | 31T-8166002 thru 31T-1166008 | KT-16 |
| PA-31T3 T1040 | 31T-5575001 | KT-16 |
| PA-31T3 T1040 | 31T-8275001 thru 31T-8275017, 31T-8275025 | KT-16 |
| PA-31T3 T1040 | 31T-8375001 thru 31T-8375003, 31T-8375005 | KT-16 |
| PA-31T3 T1040 | 31T-8475001 | KT-16 |
| PA-32-260 | 32-1 thru 32-1297 | KT-06 |
| PA-32-260 | 32-7100001 thru 32-7800008 | KT-06 |
| PA-32-300 | 32-40000 thru 32-40974 | KT-06 |
| PA-32-300 | 32-7140001 thru 32-7940290 | KT-06 |
| PA-32-301 | 3206001 thru 3206098 | KT-18 |
| PA-32-301 | 32-8006003 thru 32-8606023 | KT-18 |
| PA-32-301FT | 3232001 thru 3232074 | KT-19 |
| PA-32-301XTC | 3255001 thru 3255051 | KT-19 |
| PA-32R-300 | 32R-7680003 thru 32R-7880068 | KT-06 |
| PA-32R-301 | 3213042 thru 3213103 | KT-19 |
| PA-32R-301 | 3246001 thru 3246244 | KT-19 |
| PA-32R-301 | 3213001 thru 3213041 | KT-19 |
| PA-32R-301 | 32R-8013001 thru 32R-8613005 | KT-19 |
| PA-32R-301T | 3257001 thru 3257493 | KT-19 |
| PA-32R-301T | 3229001 thru 3229003 | KT-19 |
| PA-32R-301T | 32R-8029001 thru 32R-8629006 | KT-19 |
| PA-32RT-300 | 32R-7885002 thru 32R-7985106 | KT-20 |
| PA-32RT-300T | 32R-7887002 thru 32R-7987126 | KT-20 |
| PA-34-200 | 34-7250001 thru 34-7450220 | KT-21 |
| PA-34-200T | 34-7570001 thru 34-8170092 | KT-22 |
| PA-34-220T | 3433001 thru 3448035 | KT-22 |
| PA-34-220T | 34-8133001 thru 34-8633014 | KT-22 |
| PA-34-220T | 3447001 thru 3447029 | KT-22 |
| PA-34-220T | 3448038 thru 3448079 | KT-22 |
| PA-34-220T | 3449001 thru 3449514 | KT-22 |
| PA-36-285 | 36-7360001 thru 36-7660135 | N/A |
| PA-36-300 | N/A | |
| PA-36-375 | 36-7802001 thru 36-8302025 | N/A |
| PA-38-112 | 38-78A0001 thru 38-82A0122 | N/A |
| PA-39 | 39-1 thru 39-155 | KT-14 |
| PA-42 | 42-7800001, 42-7800002, 43-7801003, and 42-7801004 | N/A |
| PA-42 | 42-8001001 thru 42-8001106 | N/A |
| PA-42-1000 | 42-5527001 and up | N/A |
| PA-42-720 | 42-5501003 thru 42-5501023 | N/A |
| PA-42-720 | 42-5501025 thru 42-5501027 | N/A |
| PA-42-720 | 42-5501029 thru 42-5501031 | N/A |
| PA-42-720 | 42-5501033, and 42-5501039 | N/A |
| PA-42-720 | 42-8301001 and 42-8301002 | N/A |
| PA-42-720 | 42-5501040 thru 42-5501060 | N/A |
| PA-44-180 | 44-7995001 thru 44-8195026 | KT-23 |
| PA-44-180 | 44-8107001 thru 44-8207020 | KT-23 |
| PA-44-180 | 44-95001 thru 4495013 | KT-23 |
| PA-44-180 | 44-96001 thru 4496571 | KT-10 |
