G84-Ls Split Power Riveter

$5945.00/Each
Quantity
Add to Wishlist
Part# 12-03014
MFR Model# G84-LS

Overview

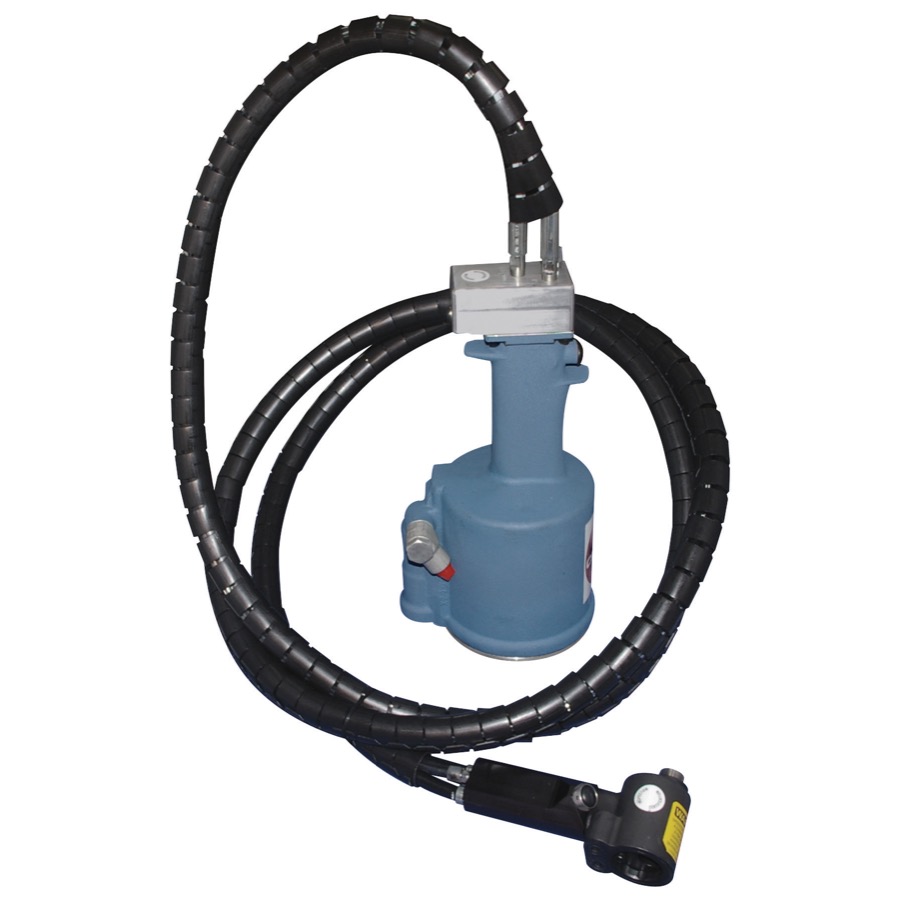

The G84-LS pneumatic-hydraulic installation tool is a heavy duty production tool designed for high-speed, reliable installation of the most popular sizes of blind rivets, lockbolts and blind bolts. The base unit transmits it power through 10 feet of hose to a lightweight head cylinder. This facilitates fastener installation in many limited access areas and also reduces operator fatigue.

The trigger is incorporated in the head cylinder, providing comfortable, one-handed operation. Furthermore, the head cylinder can be configured for straight (inline) or pistol grip operation. The recoil absorbing design reduces shock transmitted to the user.

In combination with Cherry pulling heads and adapters, this tool installs all Lockbolt, blind bolts and blind rivets to 1/4" diameter, as well as Cherry rivetless nut plate in all sizes.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Air Pressure: 90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.
  • Noise Level: 66.5 dB (A)
  • Vibration: 4.0 m/s2
  • Air Consumption: .34 SCF / cycle (9.63L / cycle)
  • Stroke: 0.53"
  • Pulling Force: 5700 lbs (2608 kgs)
  • Weight: 11.8 lbs (5.4 kgs)
