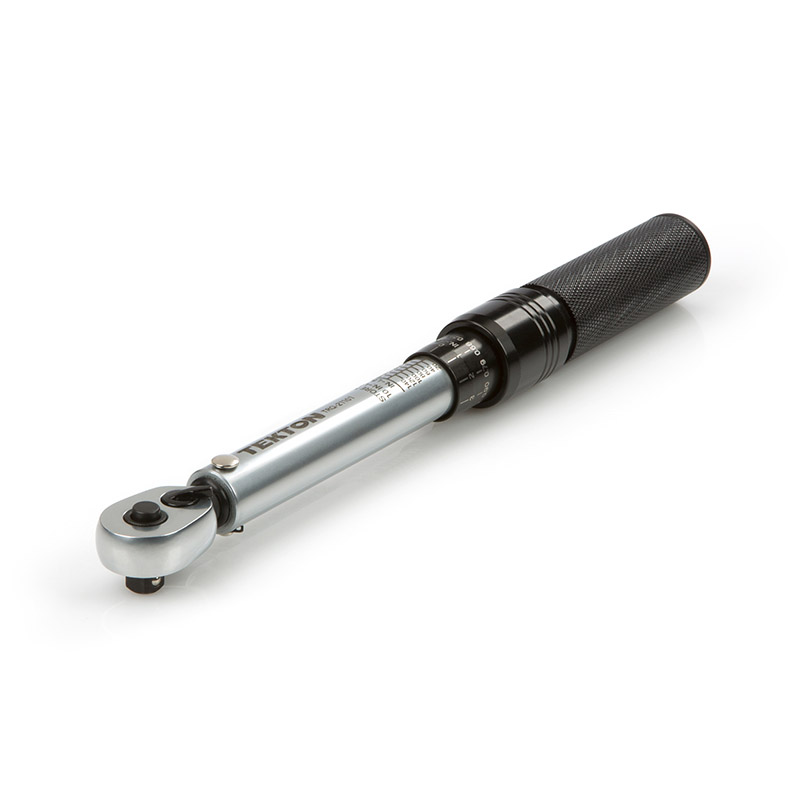

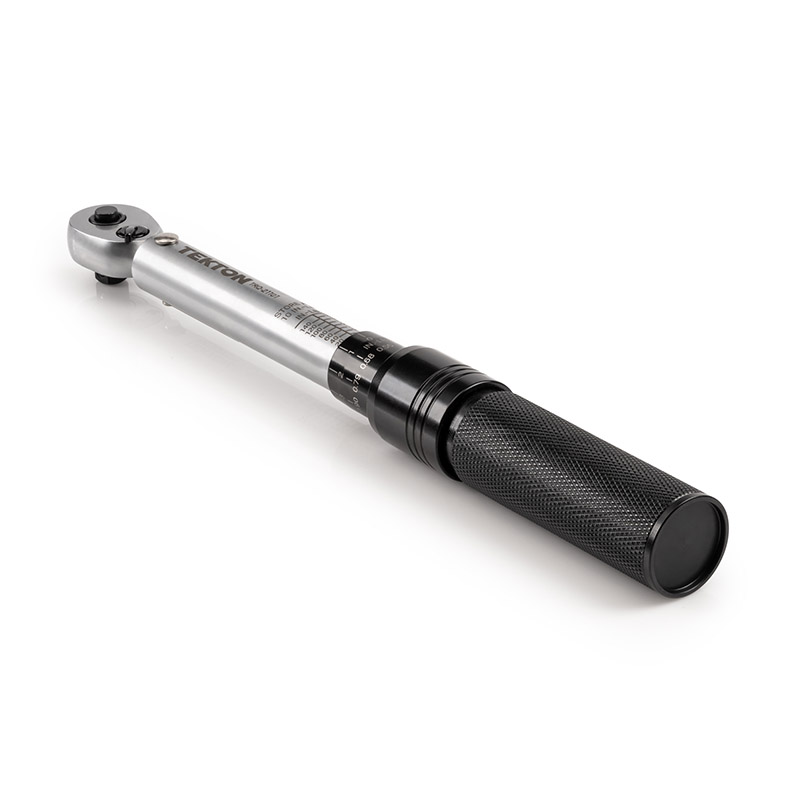

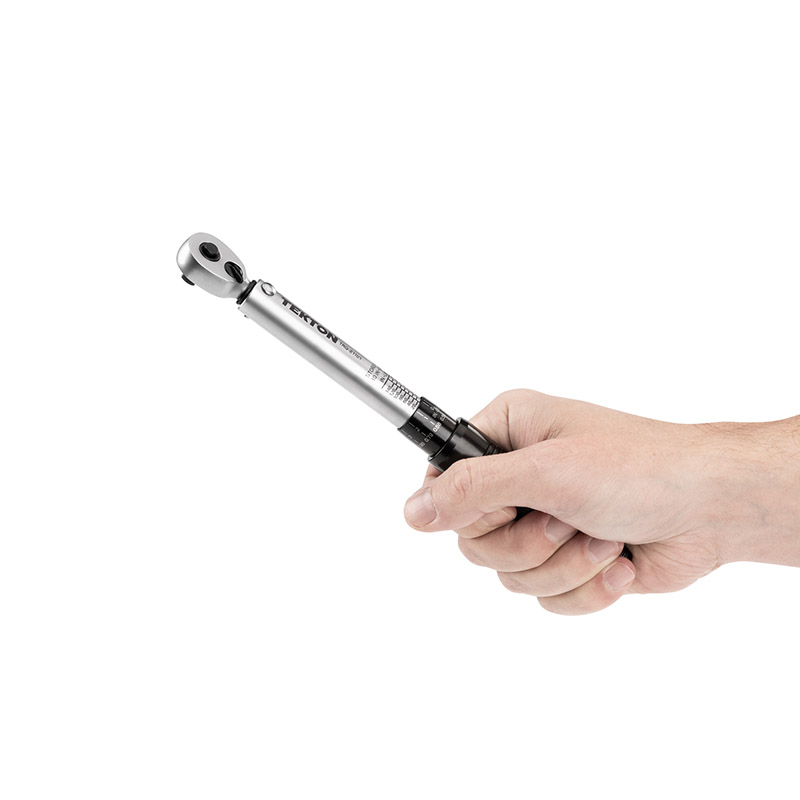

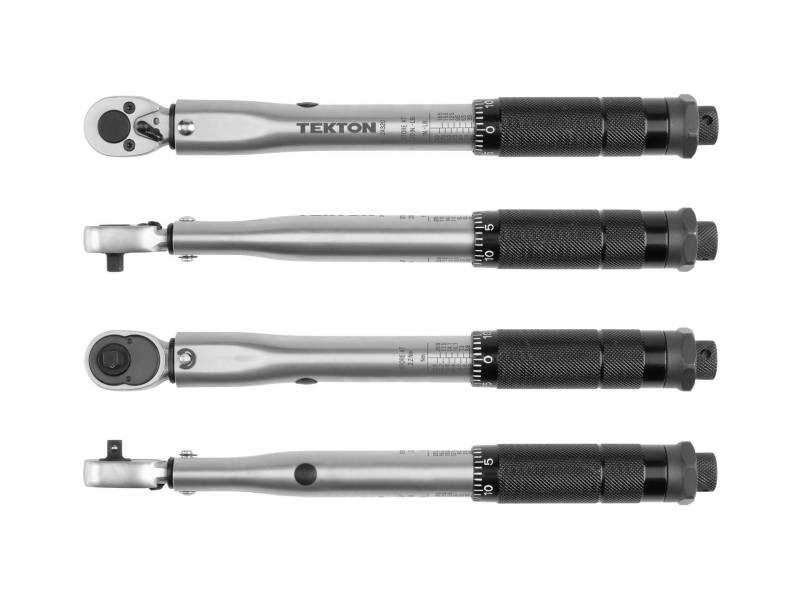

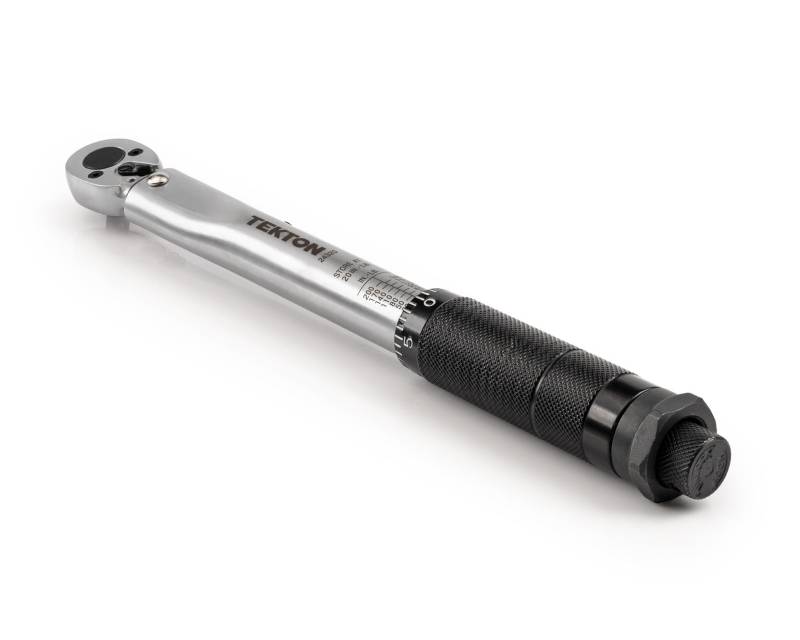

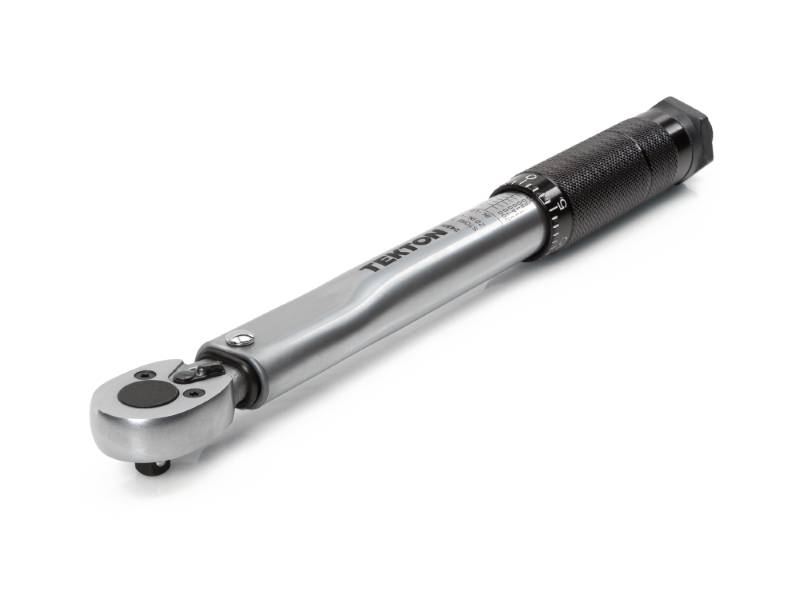

Tekton 1/4 Inch Drive Micrometer Torque Wrench (20-200 in-lb)

$52.00/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 12-06842
MFR Model# 24320

Overview

Tekton 1/4 Inch Drive Micrometer Torque Wrench (20-200 in-lb)

±4% Accuracy
Calibrated according to the ASME B107.300-2010 standard, each wrench is evaluated at three set points along its full range—20%, 60%, and 100%—with three test measurements at each set point.

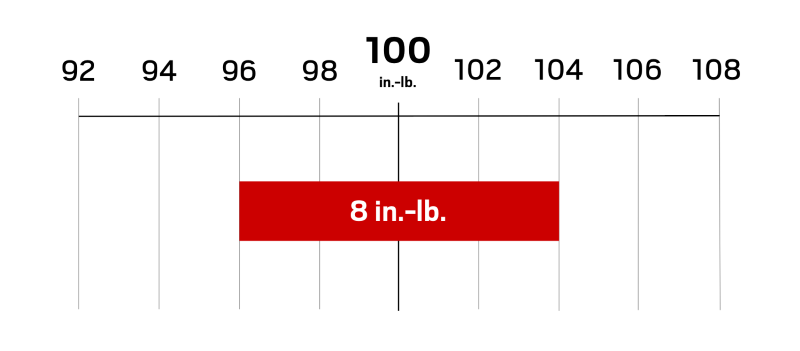

Maximum Expected Error
Accuracy: the maximum expected error between the torque value on the wrench’s dial and the actual force the wrench exerts on a fastener

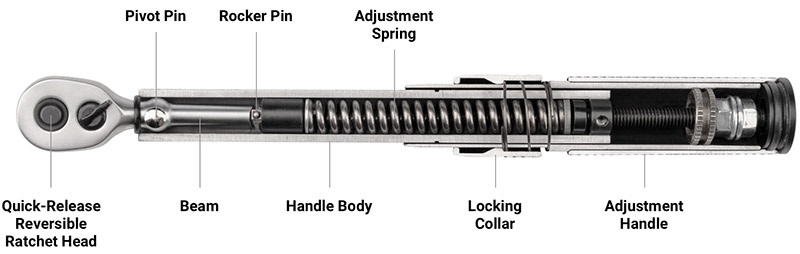

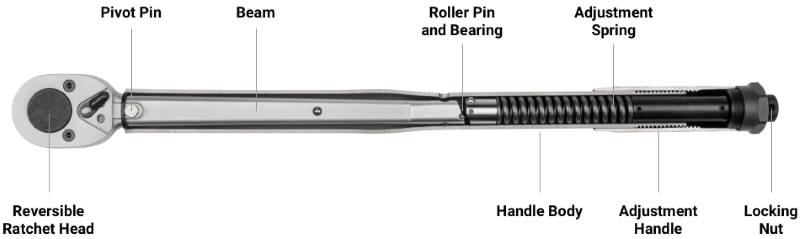

Micrometer Design and Operation

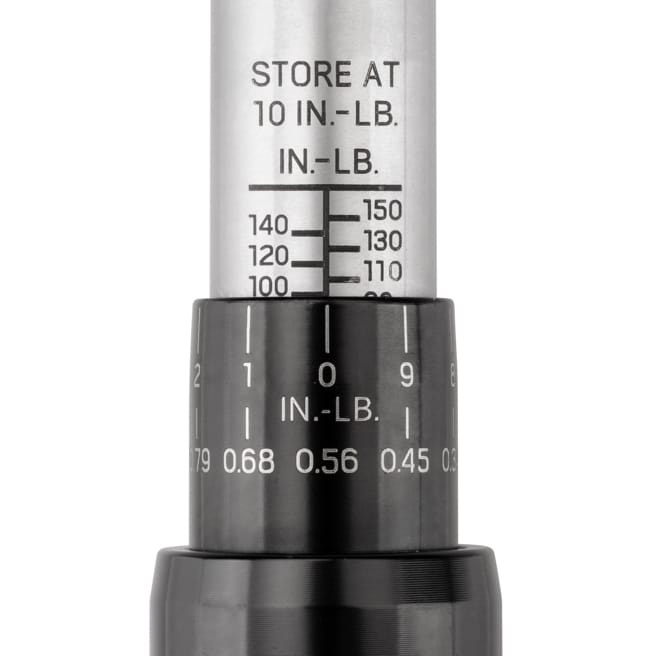

Proper storage: To maintain calibration, store micrometer-style wrenches at their lowest setting. Tekton's TRQ21101 should be stored at 10 in.-lb.

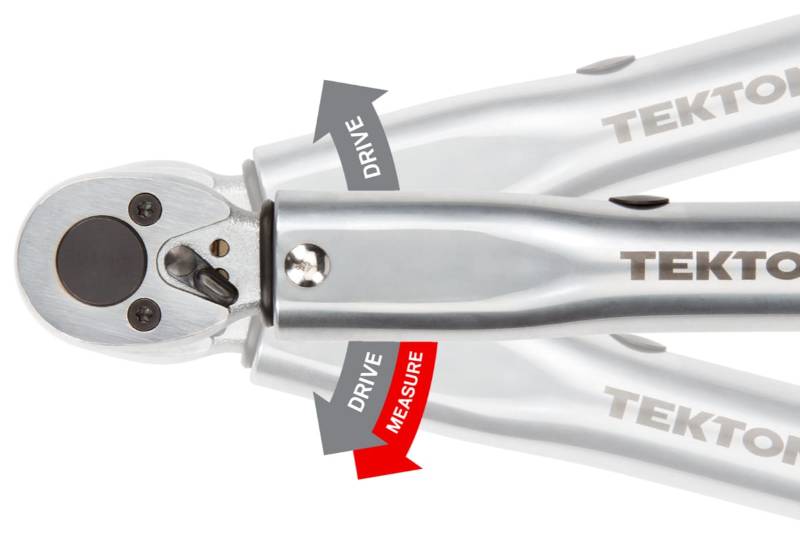

Clockwise Measurement
Drives in both directions and measures torque in the clockwise direction

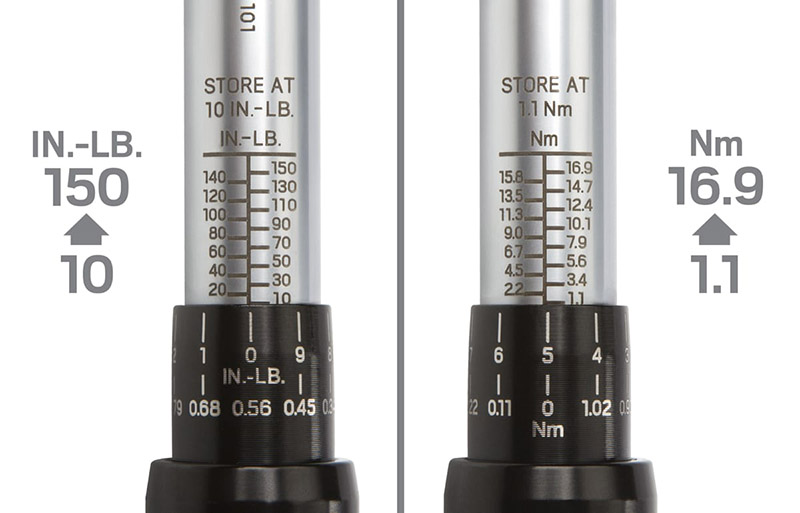

Dual-Range Scale
High-contrast, easy-to-read scale is marked with in.-lb. and Nm units

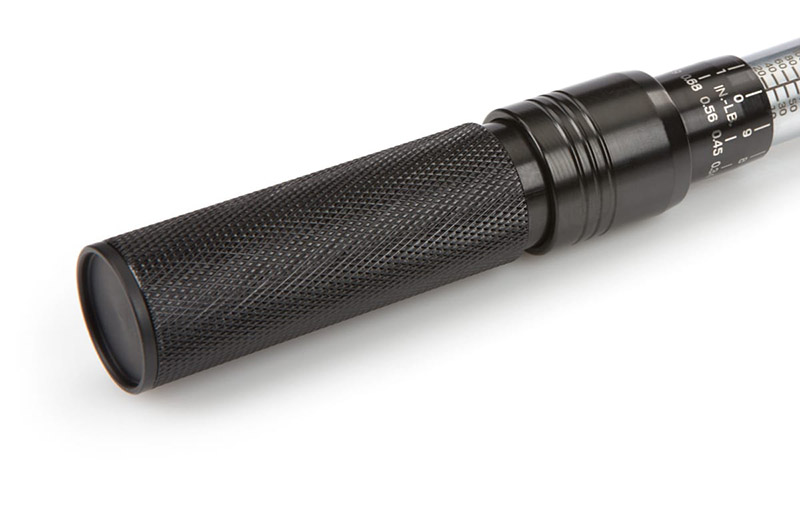

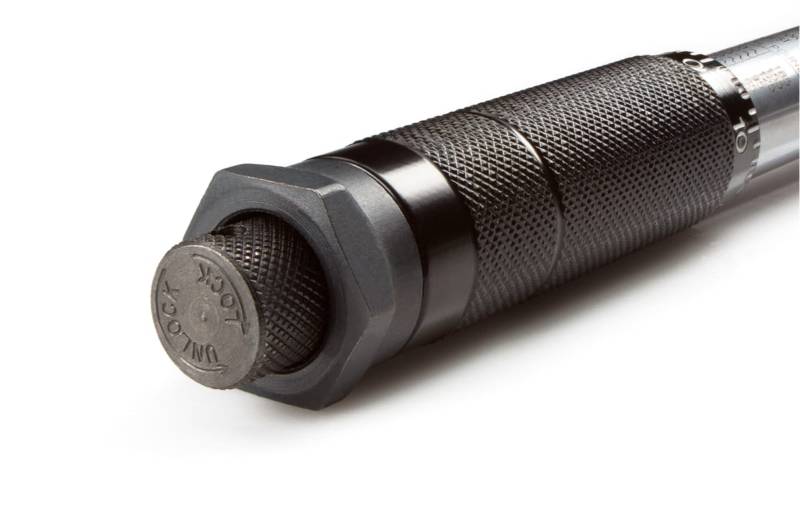

Locking Nut
Locks the torque setting in place while you are using the wrench


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Torque Range: 20 - 200 in-lb
  • Torque Range N-m: 2.2-22.6 Nm
  • Scale Increment: 1.0 in.-lb. ; 0.11 Nm
  • Accuracy: ±4%
  • Tooth Count: 24
  • Country of Origin: Taiwan
  • Item Weight: 1.3 lb.
