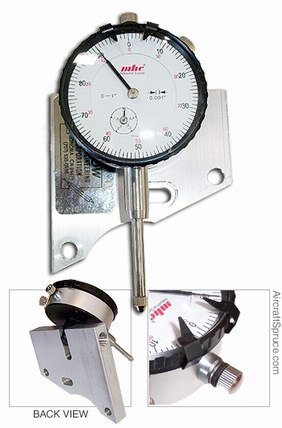

Valve Wobble Test Fixture

From $233.95 to $259.00
Description Part Number Price Buy
VALVE WOBBLE TEST FIX W/O INDI
12-21500
$233.95
Quantity
VALVE WOBBLE TEST FIX. W/INDIC
12-21505
$259.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The Valve Wobble Test Fixture for parallel valve Lycoming engines is used to comply with Lycoming SB­388a. Quality made of aluminum and alloy steel, it is easy to use with no set screws or feeler gauges required. Allows direct reading of wobble from dial indicator.

Note: Will work on a angle valve engines as well.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Dear all, If it possible, please provide me information about the next item: 12-21505 VALVE WOBBLE TEST FIXTURE (INDICATOR). I need to know the accuracy of this device. If it possible please send me the User Guide, Manual or any other document that reflects the metrological characteristics for this device. Thank you in advance!

Anatolii
May 25, 2017

Missing hardware

Russell P Verified Purchase

VALVE WOBBLE TEST FIX W/O INDI

January 10, 2022

Might work better on parallel valve engines, but I couldnt get it to line up right on the valve stem on my angle valve IO-540-K1G5D. Maybe there should be some instructions with the tool.

Doug
May 30, 2021

The fixture itself is ok. Attaches with only one screw on angle valve cylinders, but good enough. The valve extension is included and makes this worth buying. Do not buy the gauge however. The one I received was defective, and took months to get a replacement. Meanwhile I purchased one for less than half the cost elsewhere, and it was better quality.

Brian B
January 27, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: It is described as a tool for parallel valve engines. However, there is a note saying: can be used on angle valve engines. Is this correct or should the note mean that it cannot be used on angle valve engines. Best regards Ole Petter Syvertsen

The note is correct. This tool is good for parallel valve and angle valve engines.

Q: How does the dial indicator attach? I already have a central dial indicator with another tool. Trying to decide if I need with or without dial indicator.

Per supplier: It depends on the position of the mounting lug and whether or not the lug is plastic or steel. The indicator is clamped by the lug on back of the indicator, so if it's a plastic lug, that could present a problem. It the orientation is wrong and the lug/backing plate can be rotated to the correct position, that can resolve one issue.

Q: Does the kit come with the adapter that attaches to the valve stem?

Per the supplier: Yes, it comes with the adapter that attaches to the valve stem.

Q: Does this include the valve extension?

This comes with the following: INDICATOR BASE | SPLIT GAUGE ROCKER BUSHING (2) | MOUNTING SCREWS
