IN LINE FUEL VALVE

$11.65/Each
Quantity
Add to Wishlist
Part# 15-05420
MFR Model# 11834

Overview

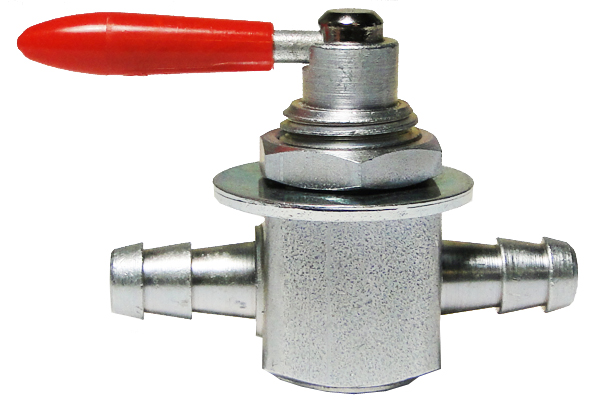

7031 Fuel Shut-off Valve. In Line Fuel Valve for fuel shut off. Ideal for use on panel to cut off fuel flow in a single line. All barbs accept any 1/4 i.d. fuel line. Requires only 1/4 turn to off. Installs in panel thru 1/2 hole.

Documents

Reviews

This valve was perfect for my application. Compact and well made.

David C
November 21, 2019

Nice neat valve. Useful in that attachment thread is included - the other similar product is difficult to firmly attach to the cockpit

Andrew P
November 15, 2019

I used this fuel valve on a generator to replace a cheap Chinese piece of junk valve that started leaking. This valve worked fine with some adaptation. If the stem was an 1/8 longer, it would have been the perfect replacement, but Im using it in a non standard application.

Ken K
November 1, 2019

Worked great in our 65 Sunbeam Tiger

Johnnyb
August 3, 2019

Although I do have a pilots licence, I just needed a fuel valve for my lawn tractor and couldnt find anything that shipped from Canada that I could mount properly. This valve did the trick and is now installed and looks great.

Chris S
June 2, 2019

Nice quality ball valve. No complaints... as mentioned in one review, a flat would be nice to mount but thats easily fixed with a file. Aircraft Spruce was super fast to ship... Thanks!

Ken
August 21, 2018

Works perfectly. Exactly as advertised.

John
February 24, 2018

just what the dr ordered

Ronald
February 1, 2018

This is a good quality non-rebuildable 1/4 fuel shutoff valve. Its easy to mount by drilling just one hole, inserting the valve, nut and washer, then tightening the hardware. The cast-on hose barbs are aluminum and wont break off like plastic ones -- or leak either. The lever is made from a 1/8 roll pin and the valves easy to rotate. The reason I didnt give a 5 star rating is because the threaded portion is completely round and allows for valve rotation in the hole (and the resulting nut loosening) when opening/closing the valve. A flat spot on the threaded area would stop this. Sure wish ACS would carry one with a handle made for remote installation!

Gary C
March 12, 2017

Q&A

Q: Regarding In Line Fuel Valve Part # 15-05420: What is the internal diameter?

The ID of the internal ball needle and the ID is consistent with the barb at .185 diameter.

Q: Will this fit 5/16 hose on a lawn mower?

This valve has 1/4 barb fittings, so it should work on 5/16 hose, but we cannot guarantee it.
