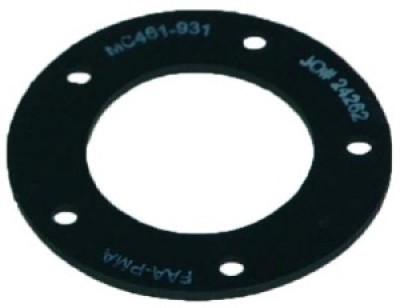

Piper Gasket Viton Fuel Transmitter - MC461-931 PA28-151 / 161 / 181

$14.85/Each
Quantity
Add to Wishlist
Part# 05-04871
MFR Model# MC461-931

Overview

Approved fuel-proof gaskets to replace the original cheapy cork gaskets. The gasket is used under the fuel quantity transmitter, generally with the rubber bladder type tanks. Made of Viton rubber for longer life.

Application Chart

Model Beginning S/N Ending S/N
PA-28-151 28-7415001 28-7415703
PA-28-151 28-7615002 28-7615435
PA-28-151 28-7515001 28-7515449
PA-28-151 28-7715001 28-7715314
PA-28-161 28-7816001 28-7816680
PA-28-161 28-8016001 28-8016373
PA-28-161 28-8216007 28-8216007
PA-28-161 28-8216017 28-8216017
PA-28-161 28-8216021 28-8216021
PA-28-161 28-7716002 28-7716323
PA-28-161 28-7916001 28-7916598
PA-28-161 28-8116001 28-8116268
PA-28-161 28-8216014 28-8216014
PA-28-161 28-8216019 28-8216019
PA-28-181 28-7690001 28-7690467
PA-28-181 28-7890001 28-7890551
PA-28-181 28-8090001 28-8090372
PA-28-181 28-8290017 28-8290017
PA-28-181 28-8290028 28-8290028
PA-28-181 28-8290036 28-8290036
PA-28-181 28-7790001 28-7790607
PA-28-181 28-7990001 28-7990589
PA-28-181 28-8190001 28-8190279
PA-28-181 28-8290018 28-8290018
PA-28-181 28-8290033 28-8290034

Reviews

Great fast service!

Robert C
May 21, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the ID and OD?

ID is 1.50" and OD is 2.54"

Q: What is the inside diameter of the screw holes in this gasket?

0.163" id.
