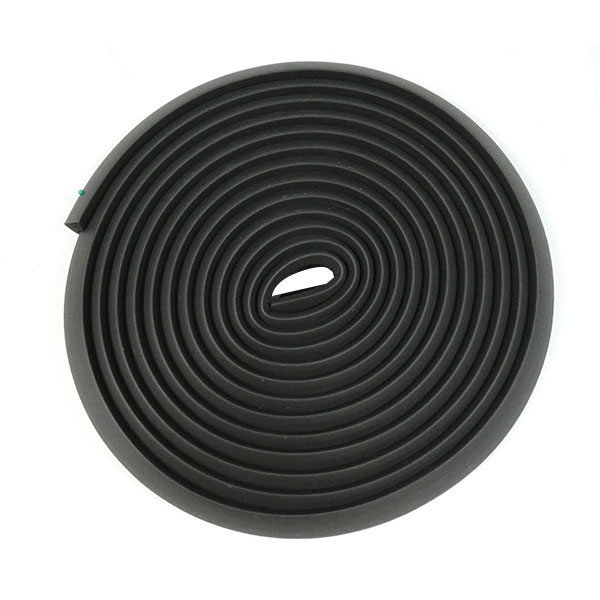

FAA-approved revolutionary seal design!
Intense development and testing went into creating this revolutionary Entry Door Seal for Cessna. Custom extruded from a special hybrid rubber compound, this seal is superior to any seal on the market.
FAA-PMA certified in February, 2008 for Cessna un-pressurized aircraft (with reciprocating engines), the kit includes door seal, seal lube, installation instructions, engineering drawing, and Instructions for Continued Airworthiness (ICA).
These seals need to be glued into place. It is recommended for high utilization carry many passengers and is designed to be less likely to become torn or damaged than the fuselage mounted sea.
Available at a fraction of the cost of OEM seals, provide an airtight and water tight fit, and greatly reduce noise in the cabin for even more enjoyable flying!
Note: Sold as each (per door).
Seal went in very well. Durable product and applied with contact cement. Both doors closed and sealed with ease.
installed on the copilots door of my 1961 C182D. It was a very tight fit at first after three days with the doors closed and latched it fit great with no leaks.
The seals will be initially too thick. You need to let the doors sit CLOSED for 48 hours or more if its cold. They will compress and form a custom tight seal.
Its a good seal. When I ordered it, I thought it was enough to cover both doors. It does not, only one door for an expensive price.
This material is much too thick for the 172 door. Weve had it installed for almost two years and all it has done is cause undue stress on the hinges and latch mechanism which has lead to a broken door latch linkage. Go to the hardware store and purchase something cheaper that will also fit better.
I attempted to install these door seals on a Cessna 152. They were much too thick and the cabin door would not close. I removed the seals and installed the Cessna door seals (PN R581573). The Cessna seal fit well. I wasted more than eight hours installing and removing and than reinstalling the Cessna seals. The most time consuming part was removing the adhesive. I gave the product one star because the seal was well made.
The door seals are very high quality but do not fit our 1967 T-41B (R172E) Our doors fit perfectly but the seals are simply to thick and too wide to allow the doors to close. We followed the directions carefully and the seals were correctly oriented. We now have a big mess in trying to remove the seals on the one door we did.
not a good fit on Cessna 172L INNER LEG DOES NOT FIT BETWEEN DOOR AND FRAME AROUND THE FULL DOOR AND SEAL SITS PAST THE DOOR EDGE IN SOME AREAS OF DOOR. ENDED UP SCRAPPING BOTH SEALS
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the suppier: Our C1401 seal is a new design.
Yes, you would have to order two of them if you wish to replace the left and right door seals. They are sold as each (per door). The kit will come with seal lube, installation instructions, engineering drawing, and continued airworthiness. The adhesive is not included in the kit. The manufacturer recommends for you to use the 3M Super Weather Strip Adhesive which we carry. P/N# 09-27200. One 5oz tube should just be enough for your application.
Yes, this kit can be used for both the left and right side entry doors.
Its just under 1 inch wide.
No it is not approved for this aircraft.
