PIPER AIRCRAFT FRONT MOUNTED DOOR SEAL P301-1

$129.95/Each
Quantity
Add to Wishlist
Part# 05-03628
MFR Model# ADS-P301-1

Overview

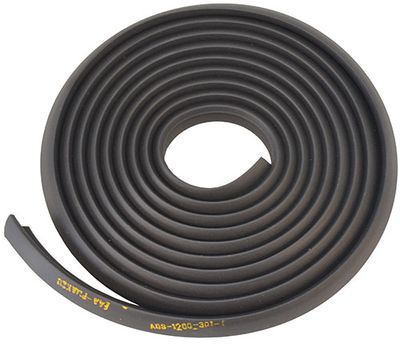

Piper Aircraft Front Mounted Door Seal P301-1.

Nearly a year of development and testing went into creating this revolutionary new Entry Door Seal for aircraft. Custom extruded from a special hybrid rubber compound, the new seal is superior to any seal on the market.
The thick leg of the P301-1 is just under 1/4" thick. The thin leg is tapered.

Application Chart

Aircraft Model Aircraft S/N
PA28-140 28-20002 thru 28-7625029
PA28-150, PA28-160, PA28-180 28-1 thru 28-7505260
PA28-151 28-7415001 thru 28-7615001
PA28-235 28-10003 thru 28-7610020
PA28R-180, PA28R-200 28R-20005 thru 28R-7635017
PA32-260 32-1 thru 32-76300001
PA32-300 32-40000 thru 32-764029
PA32R-300 32R-7680001 thru 32R-7680013
PA34-200 34-7250001 thru 34-7670063

Documents

  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Works Great on PA28s. A little on the pricey side, but a very worthwhile upgrade. Be sure a install new clevis pins and eyebolts and ensure the door is fitting correctly Prior to new seal installation. Door will be snug at first, but will eventually Break In really quieting down the cabin, as well as preventing water intrusion. (4 out of 5 starts for price)

Westwood A
March 8, 2018

Q&A

Q: I am going to instal new door seal 05-03628. 1) Is glue / adhesive included with seal or is it self stick? 2) If I need to buy glue separately, what type is recommended?

We have added the installation instructions to the web page in the "Documents" tab which should help clear up the install procedure. 1) You will need to use adhesive during installation, it is NOT self stick. 2) The install instructions recommend using 3M EC1300L or 3M Super Weather and Gasket Adhesive 08001 (yellow or black).
