West Coast Kit Planes G3 Boot Abrasion
Select Length:
53 Inch68 Inch
FREE Shipping
Overview

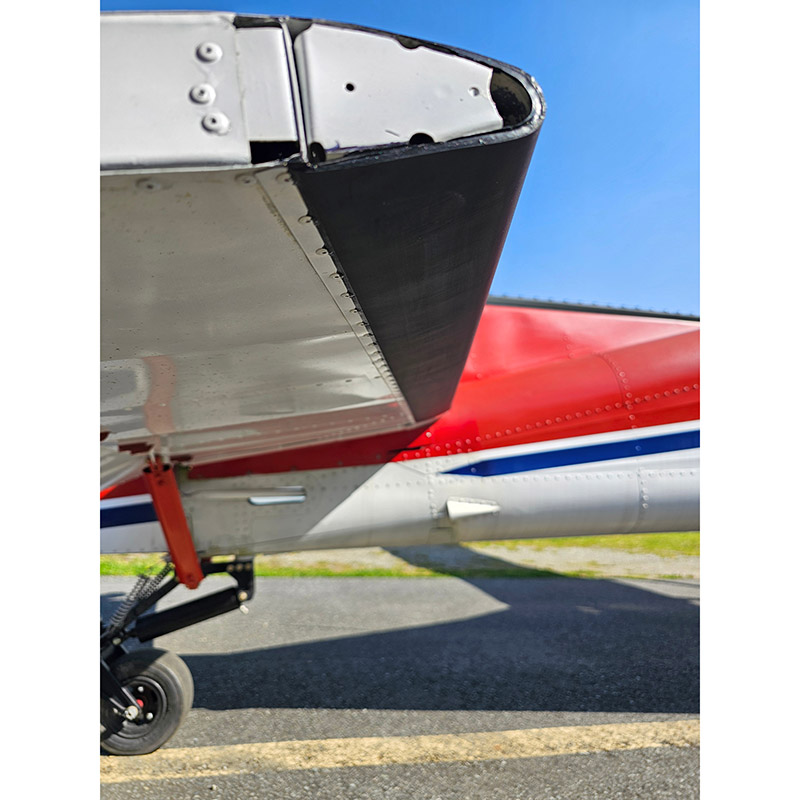

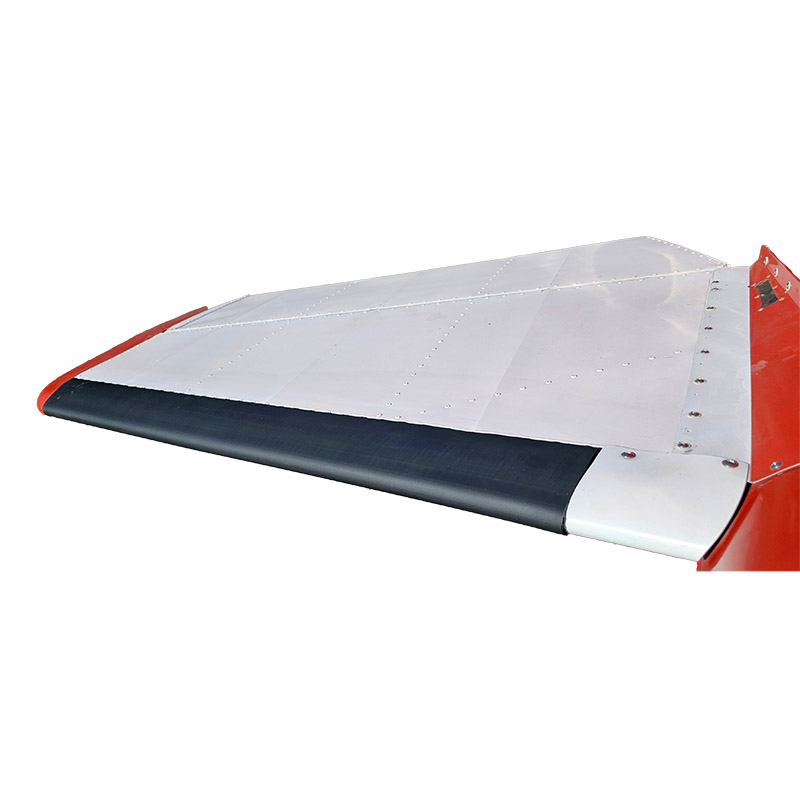

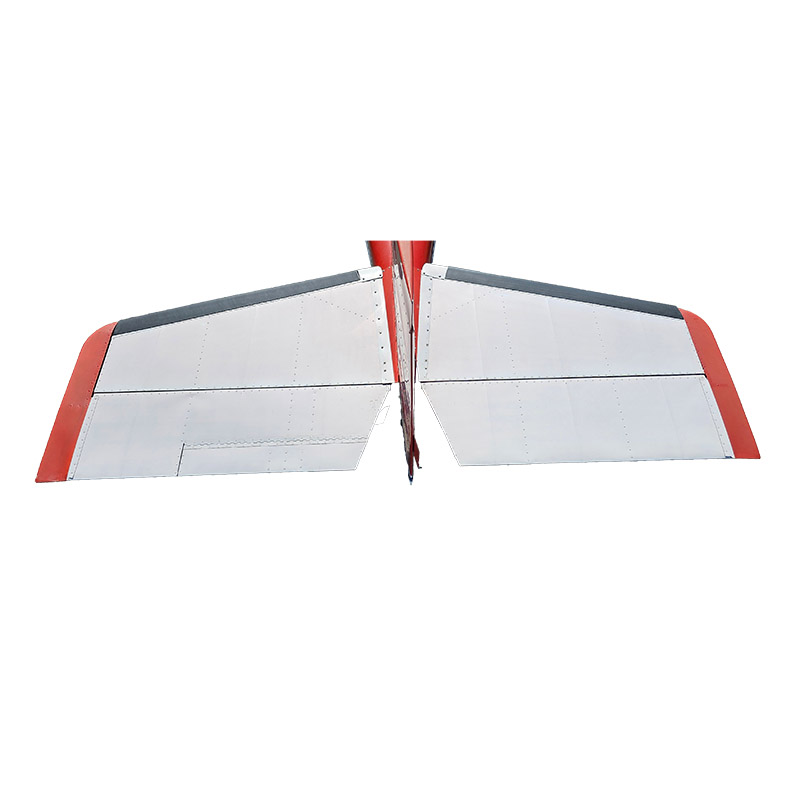

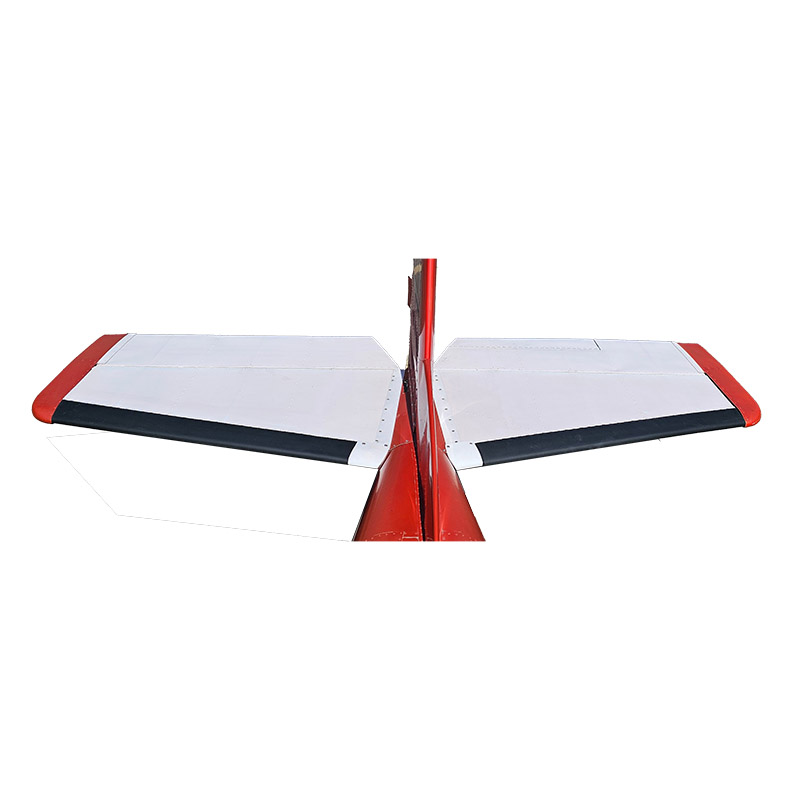

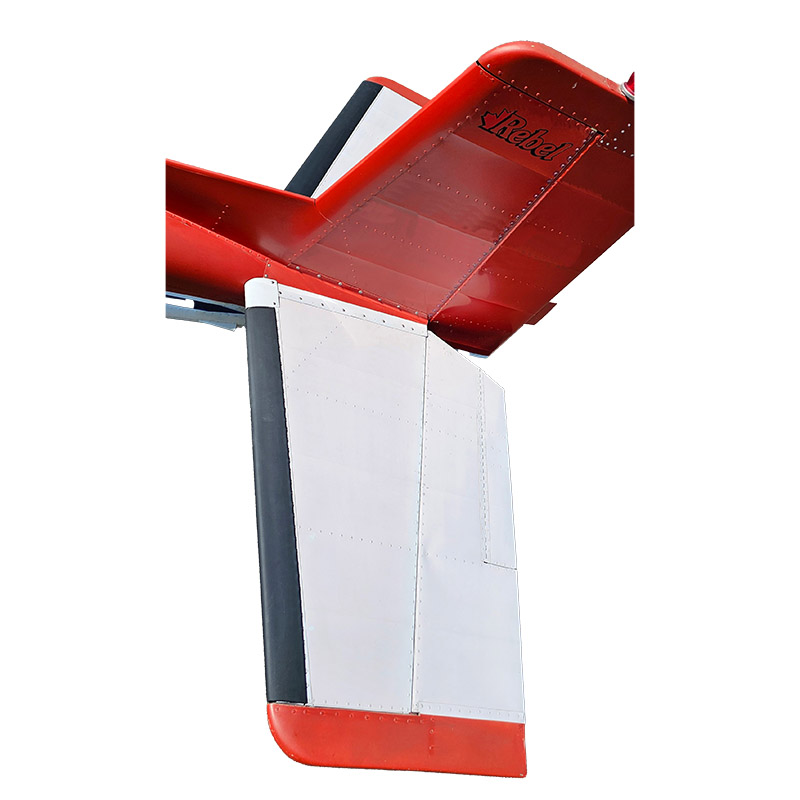

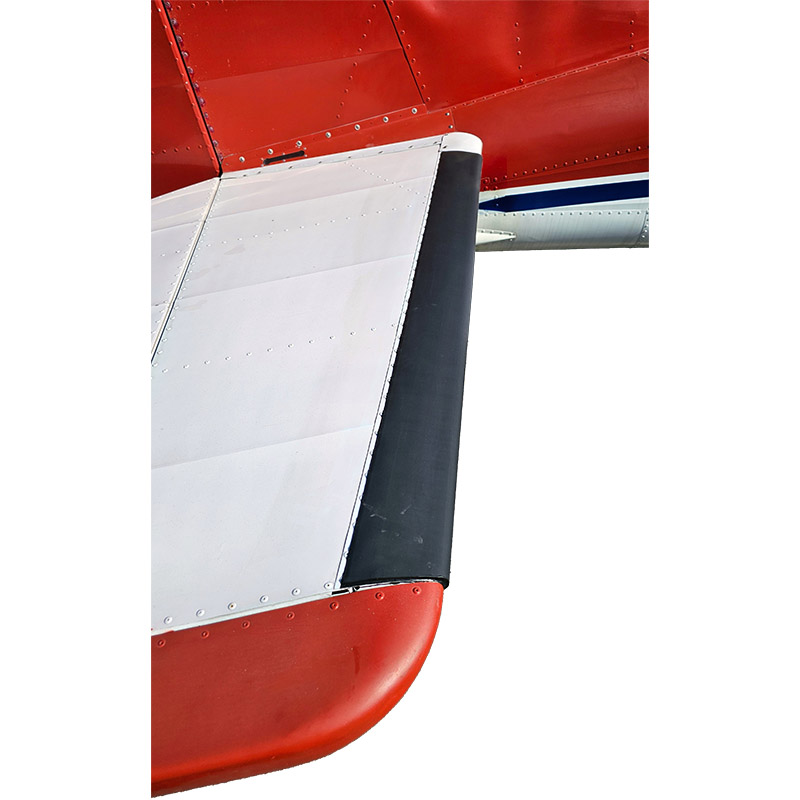

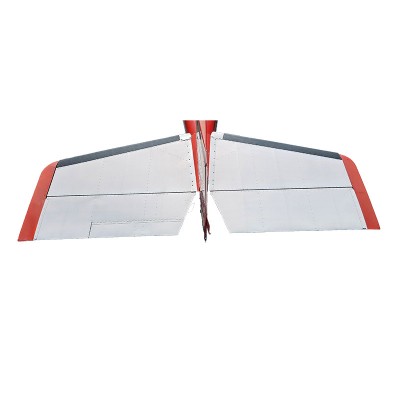

| The G3 Abrasion Boot. Designed specifically to safeguard the leading edge of your aircraft’s Horizontal Stabilizer, the G3 Abrasion Boot is a notable change for aviators who demand both performance and durability |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Tapered Form Fit – Our designers have meticulously crafted the G3 Abrasion Boot to seamlessly conform to the contours of your horizontal stabilizer. Say goodbye to bulky or too-thin, ill-fitting protection—this boot hugs the leading edge like a second skin.
- Rock and Debris Defense – The aviation world can be unforgiving, with rocks, gravel, and debris often kicked up during takeoff and landing. The G3 Abrasion Boot acts as a shield, preventing damage and extending the life of your horizontal stabilizer
Specifications
- Material: High Performance Elastomer
- Thickness: The leading edge measures 3/16", tapering down to 1/16" approximately.
- Coverage: Approximately 3.3" width of Stabilizer on both top and bottom.
- Non-PMA’d
Benefits
- The G3 Abrasion Boot is available in two lengths to accommodate different aircraft models:
- - 53-inch length – Product Code G3-MUR-53, compatible with Murphy Rebel, Elite, Yukon, Super Rebel, and Murphy Moose.
- - 68-inch length – Product Code G3-STAB-68, compatible with Cessna 170B, 170E, 180K, Piper PA-28R-180, PA-28-140, and similar type aircraft.
- For the best fit, it is recommended to measure the leading edge of the stabilizer to select the correct size. The G3 Abrasion Boot can be trimmed for a precise fit.
- Adhesive Recommendation - We recommend 3M™ 1300L or Industrial Adhesive 4799 for securely bonding the G3 Abrasion Boot to the stabilizer, ensuring a dependable attachment and lasting protection.
