INSULATOR - BY THE FOOT - 4 FT WIDE

From $3.90 to $5.90
Description Part Number Price Buy
Insulator - single side foil, single layer # 6014, 4 ft wide
09-06014
$3.90
Quantity
Insulator - double side foil, single layer # 6016, 4 ft wide
09-06016
$5.90
Quantity
Subtotal $0.00
Add to Wishlist

Overview

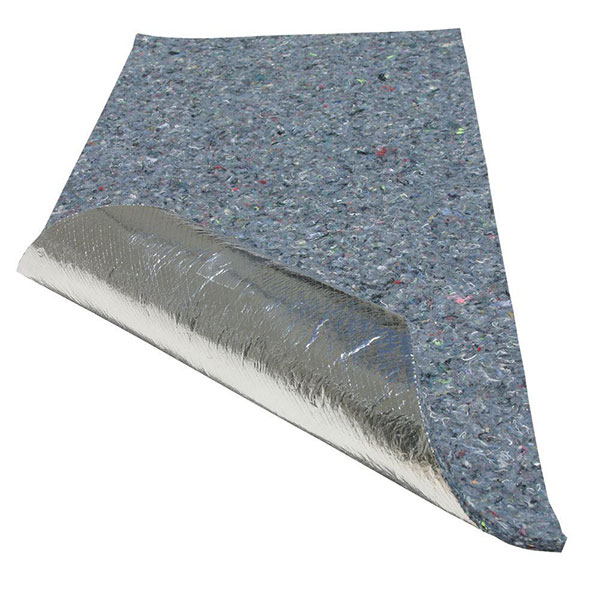

The Insulator is one of the finest sound proofing and thermal insulation materials available, and will last the life of the aircraft. The single and dual sided Insulator materials are ideal for installation on interior skin, floor, engine covers, doors, headliners, and bulkheads. The Insulator uses multi - layered fiber plys bonded to reinforced high performance foil to provide optimum barrier to acoustics, radiant heat, thermal heat, and moisture. Insulator is available in 4x 6 panels or by the lineal foot (4 wide). Install Insulator with Sticky Stuff spray adhesive and Insul-Tape. Not FAA approved.

Max Temp: 200F

Documents

  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

This insulation matt is an excellent material to work with and provides good quality sound proofing and insulating factor. I recommend the double sided foil material and foil tape the open ends.

Tim
December 24, 2018

This is the absolute best bang for the buck for keep noise, heat and even fumes outside the car. I used that wax paper backed aluminum tape that comes in rolls and is sold for taping ducting to seal the seams of this stuff. The floor section of my car is made up of at least a dozen separate sections so that it follows the contours of the floor. Once taped, it acts like one form fitted sheet of Insulator. Highly recommended!

John
March 13, 2014

Excellent product easy to install, reduce the noise and the heat.

Sylvain A Verified Purchase

INSULATOR SINGLE FOIL 48" WIDE

October 9, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is it self-extinguishing?

Yes, this material is self-extinguishing.

Q: What do you mean by double sided? Is there aluminum foil on both sides?

Yes, that is exactly right. It is a single layer of the insulation mat with foil on both sides.

Q: The last comment is not FAA approved. Does this mean the insulation, the glue, the tape, or all of it?

All of it. These insulators do not have any FAA approval. Experimental aircraft only.

Q: Regarding the foil backed insulation: When installed, can it be painted?

It can be painted, although this will not allow the product to reflect the heat.

Q: What is the approximate thickness of this product (part # 09-06016)?

This insulator is approximately 3/8" thick.

Q: What is the thickness of the aluminum foil? Is it durable enough to be used directly on the floor where it can resist tearing?

You would not want to use this as a flooring without covering it with a carpet or other material. The product is 3/8" thick over all and the foil is very thin and would tear if stepped on repeatedly.

Q: What kind of material can I used as a thin padding that can be used to sew to leather or vinyl for a quilting affect for door and wall panels

Per the manufacturer: We have not tested this material for this application, and we are not confident that it would work.
