Cessna Wing Tip Hoerner Style 11004

Add to Wishlist
Part# 05-94000
MFR Model# 11004PR


The most popular aircraft in the world should have the product with the best performance record in the world. That, of course, is Met-Co-Aire’s Hoerner style wing tip.

Designed from military research and applied to civilian aircraft, the Hoerner wing tip is one of the best modifications you can make to your aircraft. Their wing tip gives improvements in all of the important areas of aircraft performance, and usually costs less than a replacement part.

Their design reduces drag while smoothing the airflow along the wing and control surfaces. By minimizing the vortices caused by the wing and actually having them start later, their tip gives performance increases without the usual penalties. They CAN get increases in climb and in cruise. They CAN reduce stall without adversely affecting handling. You may not think you’re taking off from a carrier, but you may think you are flying a new plane.

Typical Improvements are:
• Increase cruise 3-6 mph
• Increase rate of climb 75-100 ft./min.
• Increase stability with more positive aileron control
• Decrease stall speed 4-5 mph
• Decrease distance for take-off
• Gives a modern, more aerodynamic profile

All Met-Co-Aire products are constructed of hand laid up, aircraft grade fiberglass in a polyester resin matrix. They come covered with a white gel-coat that serves as a primer for painting. Their Cessna tips come with both FAA STC and PMA approvals.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -

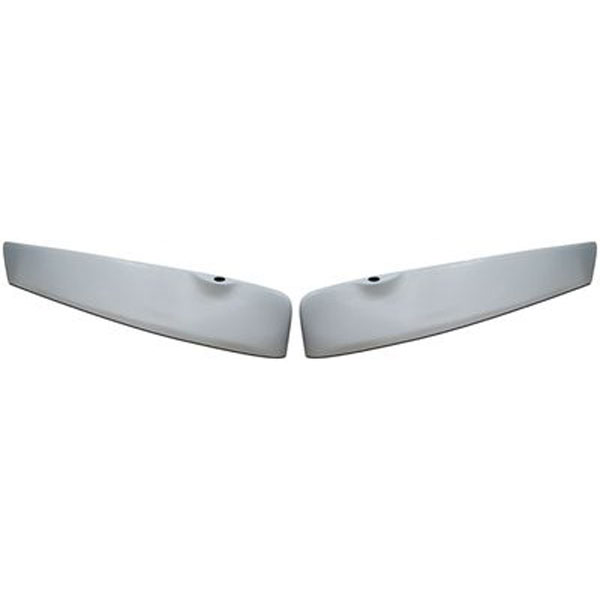

  • Set of two wing tips

  • White primer, ready for paint

  • These wing tips have a flat nav pad for a standard navigation or navigation strobe assembly. If you choose to use your existing navigation light you will need to replace the aluminum cover that holds the navigation strobe assembly in place.
  • Eligible Aircraft

    Make Series Model Beginning S/N Ending S/N
    Cessna 150 150 17001 59018
    Cessna 150 150A 15059019 15059350
    Cessna 150 150B 15059351 15059700
    Cessna 150 150C 15059701 15060087
    Cessna 150 150D 15060088 15060772
    Cessna 150 150E 15060773 15061532
    Cessna 150 150F 15061533 15064532
    Cessna 150 150G 15064533 15067198
    Cessna 150 150H 15067199 15069308
    Cessna 150 150J 15069309 15071128
    Cessna 150 150K 15071129 15072003
    Cessna 150 150M 15075782 15079405
    Cessna 170 170B 20267 27169
    Cessna 172 172 28000 46754
    Cessna 172 172A 46755 47746
    Cessna 172 172B 17247747 17248734
    Cessna 172 172C 17248735 17249544
    Cessna 172 172D 17249545 17250572
    Cessna 172 172E 17250573 17251822
    Cessna 172 172F (T-41A) 17251823 17253392
    Cessna 172 172G 17253393 17254892
    Cessna 172 172H (T-41A) 17254893 17256512
    Cessna 172 172I 17256513 17257161
    Cessna 172 172K 17257162 17259223
    Cessna 175 175 55001 56238
    Cessna 175 175A 56239 56777
    Cessna 175 175B 17556778 17557002
    Cessna 175 175C 17557003 17557119
    Cessna 180 180 30000 32661
    Cessna 180 180A 32662 50355
    Cessna 180 180B 50356 50661
    Cessna 180 180C 50662 50911
    Cessna 180 180D 18050912 18051063
    Cessna 180 180E 18051064 18051183
    Cessna 180 180F 18051184 18051312
    Cessna 180 180G 18051313 18051445
    Cessna 180 180H 18051446 18052284
    Cessna 182 182 33000 33842
    Cessna 182 182A 33843 51556
    Cessna 182 182B 51557 52358
    Cessna 182 182C 52359 53007
    Cessna 182 182D 18253008 18253598
    Cessna 182 182E 18253599 18254423
    Cessna 182 182F 18254424 18255058
    Cessna 182 182G 18255059 18255844
    Cessna 182 182H 18255846 18256684
    Cessna 182 182J 18256685 18257625
    Cessna 182 182K 18257626 18258505
    Cessna 182 182L 18258506 18259305
    Cessna 182 182M 18259306 18250055
    Cessna 182 182N 1820056 18260825
    Cessna 185 185 185-0001 185-0237
    Cessna 185 185A 185-0238 185-0512
    Cessna 185 185B 185-0513 185-0653
    Cessna 185 185C 185-0654 185-0776
    Cessna 185 185D 185-0777 185-0967
    Cessna 185 185E 185-0968 185-1149
    Cessna 210 210 57001 57575
    Cessna 210 210A 21057576 21057840
    Cessna 210 210B 21057841 21058085
    Cessna 210 210C 21058086 21058220
    Cessna 210 210D 21058086 21058220
    Cessna 210 210E 21058511 21058715
    Cessna 210 210F 21058716 21058818


    Great product made out of fiberglass. The parts fit right in, however, I did have to remove the power pack that supplied power to the nav lights, since it was too bulky and did not let the wing tips fit properly. I also bought the LED nav lights which don’t require a power supply. Wingtips fit right in once this was done.

    Nick P Verified Purchase


    February 12, 2023

    I got these wingtips for a 1968 Cessna 150F. I had already purchased SkyBeacon ADSB out but it wouldnt fit onto my original wingtips. I needed a flat mounting surface to bolt on the ADSB system. These worked great for mounting the SkyBeacon. The fit left a little gap from the wing surface so I caulked them to fill the gap. As far as performance, as soon as I bolted the wingtips on I noticed the airplane was wanting to jump out of the hanger so I had to keep it tied down. After I finally took off and knocked out a couple Lomcovaks I could really tell what a difference these products made. Between this and all the other products promising a 5 knot increase in speed, I should be cruising at Vne all day long on 5GPH. Now I am just trying to save up about $500 so I can afford a strobe anti-collision marker for the other side since my old factory lamps no longer fit with my new speed mods.

    Dustin D
    February 4, 2019

    I would not purchase these for the promised increase in performance. We chose them because we replaced the stock tip lights with LEDs and would have had to do considerable fairing of the original tips to make the lights look integrated. These are expensive, but still cheaper than the stock Cessna tips. Installing them was relatively easy and the fit is good on our 172L.

    David F
    March 22, 2018

    I didnt notice any performance difference, but they look better.. Not sure they are worth the price.

    Jeff M
    July 18, 2017


    Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

    Q: What nav light assy can be installed with these wing tips? (ex: Cessna 150H)

    Per manufacturer: This has a flat nav pad for standard navigation or navigation strobe assembly. The Whelen 660's would be a good option if you wanted to go LED.
