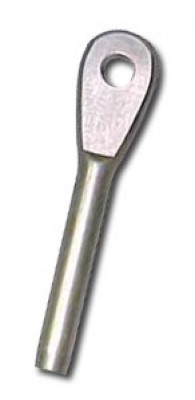

MS20668 Eye End

From $7.50 to $19.60
PN Cable Strength Hole Dia Eye Width Price Buy
MS20668-2
1/16480.190.088$7.50
Quantity
MS20668-3
3/32920.190.103$7.55
Quantity
MS20668-4
1/82000.190.190$9.75
Quantity
MS20668-5
5/322800.250.197$13.55
Quantity
MS20668-6
3/164200.313.255$19.60
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The MS20668 Eye End Fittings are manufactured from stainless steel in accordance with the requirements of MIL-DTL-781 and are certified to those standards.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Simply product was exactly what was described Worked perfectly

Kenneth M Verified Purchase

Eye End MS20668-2

November 14, 2023

Lynann B Verified Purchase

Eye End MS20668-3

March 2, 2023

Lynann B Verified Purchase

Eye End MS20668-3

February 7, 2023

Lynann B Verified Purchase

Eye End MS20668-4

February 7, 2023

OK

Larry R Verified Purchase

Eye End MS20668-4

August 3, 2022

Product received as ordered

Bob H Verified Purchase

Eye End MS20668-2

December 22, 2021

Kimberly H Verified Purchase

Eye End MS20668-5

June 12, 2021

Correctly advertised. Worked fine.

Gary
June 7, 2019

Quality of this product is great. I needed these as replacements for an existing application that was done incorrectly. Once again, AS has great CS and shipping is always super fast.

Robert M
May 16, 2019

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How do these MS20668 cable eyes attach to the cable, are they crimped on or can they be sodered on?

This would need to be swaged onto a cable with a high pressure swaging unit like a Kearney Swager P/N# 12-01188.

Q: What is the length of this item and does it come with a pin to go through the hole, if not say where I can get them?

The length from hole center to the end is 1.631 inch. These do no use pins, you would loop the cable through them and then swage it. You would want a "Pin eye" if using pins.

Q: There is a discrepancy between what you state here (see first question) and what is printed in your catalogue for this part number (MS20668) regarding the pin hole. Possibly you have confused this part with the AN165 or the MS21254 fitting.

MS20668-3 is a swaged fitting for stainless or galvanived cable. MS21254 and 165 are for turnbuckle assemblies, the MS21254 uses the cable clips and the AN165 will need to be safety wired.
