Elevator Bushing Kit For Cessna EBC-KT-5

$114.75/Each
Quantity
Add to Wishlist
Part# 05-04580
MFR Model# EBC-KT-5

Overview

These kits include two bushing sizes for each hinge location. This allows a selective fit and solves the common Cessna fit and interference problems.

  • Hardened corrosion
    resistant stainless steel.
  • Cessna models 120 thru 177
  • Convenient kits include all bushings, sintered bronze bearings, and hardware
    for one aircraft.
  • All components are also available separately.

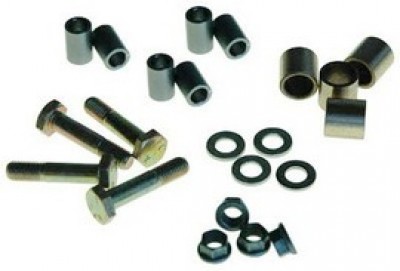

Elevator Bushing Kit Components
EBC-KT-5
  • 4 ea MCS1003-29A Bearing
  • 4 ea MC0532104K Bushing
  • 4 ea AN4-11A Bolt
  • 4 ea NAS1149F0463P Washer
  • 4 ea MS21042L4 Nut

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reference Chart

Model
Elevator
Bushing Kit
Rudder
Bushing Kit
120, 140, 140A (Bushing)
MC0422215
MC0431119K
120, 140, 140A (Bushing)
-
MCS1003-11A
150, 150A, B, C, D, E
EBC-KT-1
RBC-KT-1
150F, G, H, J
EBC-KT-1
RBC-KT-2
150K*, A150K*
Eligibility Note 1
(150K S/N 15071129 THRU 15071621;
A150K S/N A1500001 THRU A1500129)
EBC-KT-1
RBC-KT-3
150K*, L,M, A150K*, L,M
Eligibility Note 2

(150K S/N 15071622 THRU 15072003;
A150K S/N A1500130 THRU A1500226)
EBC-KT-2
RBC-KT-3
A-150L, A-A150L
EBC-KT-2
RBC-KT-3
F150F,G,H,J
EBC-KT-1
RBC-KT-2
F150K,L*, FA150K*
Eligibility Note 3

(F150L S/N 15000659 THRU F15000699;
FA150K S/N FA1500001 THRU FA1500039)
EBC-KT-1
RBC-KT-3
F150L*, M, FA150K*,L,M
Eligibility Note 4

(F150L S/N 15000700 THRU F15001143;
F150K S/N FA1500040 THRU FA1500081)
EBC-KT-2
RBC-KT-3
FRA150L, M
EBC-KT-2
RBC-KT-3
152*, A152*
Eligibility Note 5

(152 S/N 15279406 THRU 15285833;
A152 S/N A1520735 THRU A1521025)
EBC-KT-3
RBC-KT-3
152*, A152*
Eligibility Note 6

(152 S/N 15285834 THRU 15286033;
A152 S/N A1521026 THRU A1521049)
EBC-KT-4
RBC-KT-3
F152*, FA152* Note
Eligibility Note 7
(F152 S/N 15201429 THRU F15201943;
FA152 S/N FA1520337 THRU FA15203879)
EBC-KT-3
RBC-KT-3
F152*, FA152*
Eligibility Note 8
(F152 S/N F1501944 THRU F15201980;
FA152 S/N FA1520388 THRU FA1520425)
EBC-KT-4
RBC-KT-3
172, 175
EBC-KT-5
RBC-KT-4
172A,B,C* 175A,B,C*
Eligibility Note 9

(172C S/N 17248735 THRU 17249085;
175C S/N 17557003 THRU17557064)
EBC-KT-5
RBC-KT-5
172C*,175C*
Eligibility Note 10
(172C S/N 17249086 THRU 17249544;
175C S/N 17557065 THRU 17557119)
EBC-KT-5
RBC-KT-6
172D,E,F,G,H,I,K,L,M,N,P*
Eligibility Note 11

(172P S/N 17274010 THRU 17275963)
EBC-KT-5
RBC-KT-6
172P*,Q,R,S
Eligibility Note 12
(172P S/N 17275964 THRU 17276654)
EBC-KT-5
RBC-KT-7
172RG, ,P172D, R172K
EBC-KT-5
RBC-KT-6
F172D,E,F,G,H,K,L,M,N,P*
Eligibility Note 13

(172P S/N F17202040 THRU F17202208)
EBC-KT-5
RBC-KT-6
F172P* Note
Eligibility Note 14

(172P S/N F17202209 THRU F17202254)
EBC-KT-5
RBC-KT-7
F172, FR172E,F,G,H,J,K
EBC-KT-5
RBC-KT-6
177,177A,B,177RG,F177RG
-
MC0532104K
Unless otherwise noted, approval is for all serial numbers for each model listed. The eligibility for the kits also applies to the component bushings and bearings.
