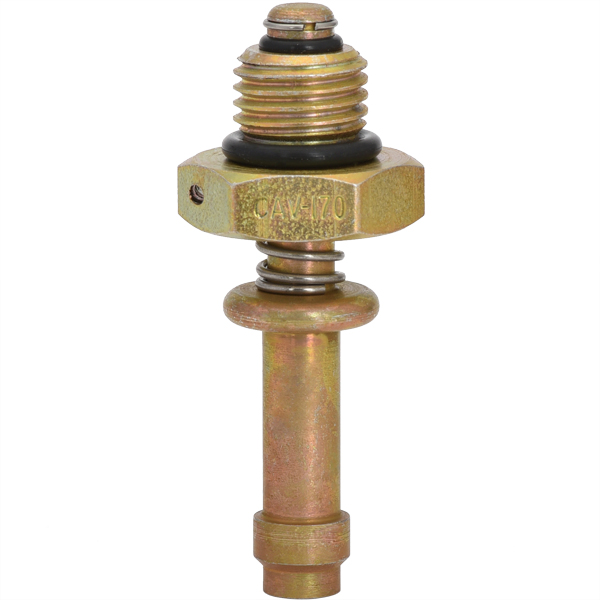

Saf-Air CAV-170H-4 Pushtype Fuel Drain Valve

Part# 05-00967
MFR Model# CAV-170H-4


SAF-AIR push type fuel drain valves are close tolerance valves of simple design. These valves provide the most trouble free operation of any other line valves in the industry. SAF-AIR valves are manufactured with an o-ring placed on the stem to seal against a flat seat on the body. This design eliminates an area where dirt can gather, thus putting an end to the main cause of fuel drain valve drip. FAA PMA APPROVED.

Note: Aircraft applications are for general reference only. Verify correct valve for your aircraft before ordering.

MODEL CAV-170 7/16-20 NF-3
- For all Cessna late 140A models, 150, 170, 170A, 170B, 172 and 175.

Comes with 1/4" hose end.
California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov


  • Eight models in two styles with or without 1/4" hose adapter
  • All Valves can be rebuilt
  • Standard fuel resistant o-rings
  • Simple operation - just push to sample fuel


  • MATERIAL: 360 Brass
  • FINISH: Natural
  • TEMPERATURE: -60 to +260F (-51 to +127C)
  • O-RINGS: All valves M83248/1 Size -006 CAV-170 Size -012, CAV-180 Size -011
  • PRESSURE: 60 PSI max
  • MODEL CAV-170 7/16-20 NF-3 - For all Cessna late 140A models, 150, 170, 170A, 170B, 172 and 175.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items



Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the thread size on the CAV-170H-4?

The thread sizes on the CAV-170h-4 is 7/16-20 NF.
