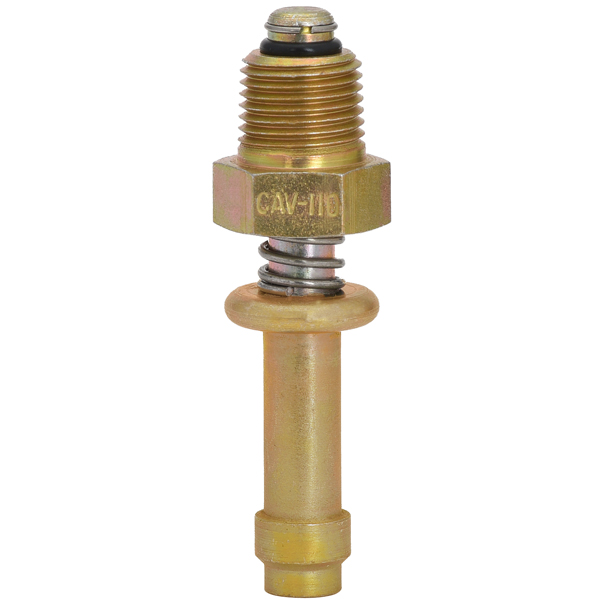

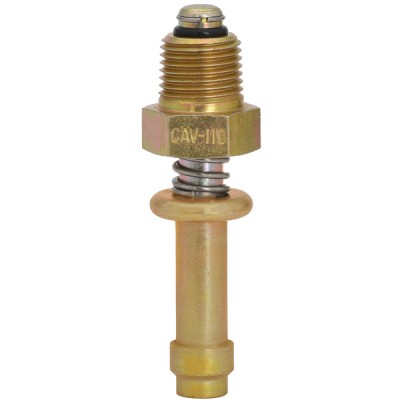

Saf-Air CAV-110H-4 Pushtype Fuel Drain Valve

$21.75/Each
Part# 05-01934
MFR Model# CAV-110H4

Overview

SAF-AIR push type fuel drain valves are close tolerance valves of simple design. These valves provide the most trouble free operation of any other line of valves in the industry. SAF-AIR valves are manufactured with an o-ring placed on the stem to seal against a flat seat on the body. This design eliminates an area where dirt can gather, thus putting an end to the main cause of fuel drain valve drip. FAA & PMA APPROVED.

Note: Aircraft applications are for general reference only. Verify correct valve for your aircraft before ordering.

MODEL CAV-110 1/8 NPT
- For Cessna 310 tip tanks; Mooney Mark 20 and 20A; all Ercoupe models; Bellanca, Taylorcraft model B; Stinson 108, 108-1, 108-2, 108-3; Voyager model 10 and 10A; Navion; Waco VK series and UPF; and Sea Bee. Fits all standard gascolators.

Comes with 1/4" hose end

Features

  • Eight models in two styles with or without 1/4" hose adapter
  • All Valves can be rebuilt
  • Standard fuel resistant o-rings
  • Simple operation - just push to sample fuel

Specifications

  • MATERIAL: 360 Brass
  • FINISH: Natural
  • TEMPERATURE: -60 to +260F (-51 to +127C)
  • O-RINGS: All valves M83248/1 Size -006 CAV-170 Size -012, CAV-180 Size -011
  • PRESSURE: 60 PSI max
  • MODEL CAV-110 1/8" NPT For Cessna 310 tip tanks; Mooney Mark 20 and 20A; all Ercoupe models; Bellanca, Taylorcraft model B; Stinson 108, 108-1, 108-2, 108-3; Voyager model 10 and 10A; Navion; Waco VK series and UPF; and Sea Bee. Fits all standard gascolators.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Wm. T Verified Purchase

SAF-AIR CAV-110H-4 DRAIN VALVE W/EXT

October 27, 2022

Worked fine

Jeffrey G Verified Purchase

SAF-AIR CAV-110H-4 DRAIN VALVE W/EXT

May 31, 2022

Tom S Verified Purchase

SAF-AIR CAV-110H-4 DRAIN VALVE W/EXT

January 5, 2022

Perfect for my application and excellent quality.

Joseph N Verified Purchase

SAF-AIR CAV-110H-4 DRAIN VALVE W/EXT

September 1, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the weight of this Saf-Air CAV-110H-4 part?

Approx 0.04 lbs.

Q: Regarding the Saf-Air CAV-110H-4 valve: What is the length from the nut to the end of the shaft? what is the diameter of the shaft?

It is 1-3/16" long and the diameter is 1/4".

Q: Which O rings are used with the SAF-AIR CAV-110H-4 PUSH-TYPE fuel drain valve?

You would need qty 1 of part number 05-22191 per valve.
