|Artex Model No.||Part No.||Description||Price||Buy|
|Artex ELT 100 HM - Helicopter version of the basic ELT 110-4 System.||$5832.00|
|C406-N ELT Kit|
|C406-N Kit- Includes Transmitter, 5-year Battery Pack, High-Speed Rod Antenna (350 Knots), Remote Switch, Horn/Buzzer, Mounting Bracket, Coax Cable, Install Hardware and Manual||$7687.00|
|C406-N with Blade Antenna|
|C406-N ELT with HSB Antenna (110-340)||$8399.00|

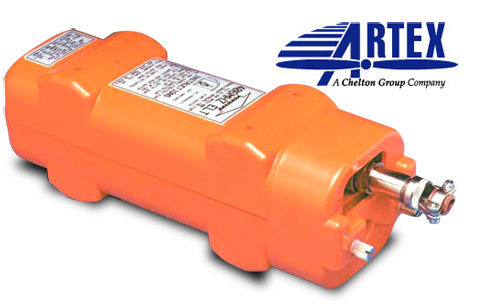

The Artex C406N is a single output ELT that incorporates latitude/longitude information from the aircraft navigation system. By use of an optional programming adapter, the ELT can also be programmed with the aircraft's 24-Bit address for fleet operators as well as other custom programming. All 3 emergency frequencies (121.5/243.0 and 406.028 MHz) utilize the same RF output, which requires only 1 coax cable to connect to the new series of Artex single input antennas.
The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 and 243.0 MHz. Every 50 seconds for 520 milliseconds (long message protocol) the 406.028 MHz transmitter turns on and transmits an encoded digital message to the Cospas/Sarsat satellite system. Also available is the Artex C406-N HM, which is equipped with a 6 axis "G" switch for helicopter installations.
Click here to download the Specifications Sheet PDF
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
11-06503 C406-N with blade antenna comes with: ELT, rack, remote switch, audio buzzer, blade antenna, coax cable and install manual/kit. The only item that is missing is the wire from the ELT to the remote switch we recommend shielded wiring which we sell.
