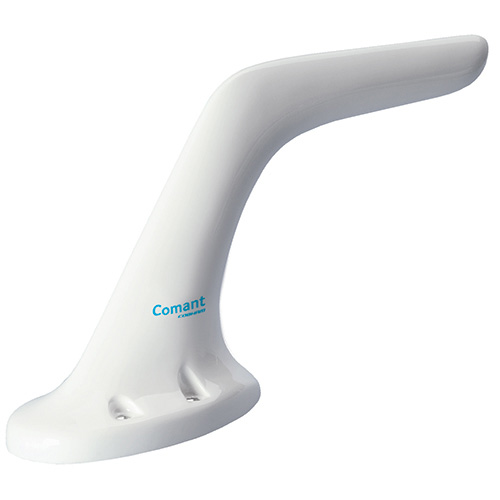

Comant VHF Comm Antenna CI-211
MFR Model# CI-211
FREE Shipping
Overview
|
Frequencies Covered Optimum antenna for large twins and medium jet aircraft. Only 8.25 inches high, yet provides good performance without the added drag of a taller blade-type communication antenna. Skydrol and rain erosion resistant. The CI 211 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to137 MHz frequency associated with DO-186A MOPS. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. Applications |
Click here to go to Cobham Rebate Website for full Terms and Conditions. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
MODEL- CI 211 VHF BLADE ANTENNA | |
Electrical | |
Frequency | 118-137 MHz |
VSWR | 2.9:1 Maximum |
Polarization | Vertical |
Radiation Pattern | Omnidirectional |
Impedance | 50 Ohms |
RF Power | 30 Watts C.W. |
Mechanical | |
Weight | 1.6 lbs. Max. |
Height | 8.25 inches Max. |
Material | High Density Polyurethane |
Finish | Polyurethane Enamel |
Connector | BNC(female) |
Environmental | |
Temperature | -55ºC to +85ºC |
Altitude | 50,000 ft. |
Airspeed | 573 KTAS or .88 Mach at 45,000 ft. |
Federal Specifications | |
FAA TSO | C37d, C38d |
Environmental RTCA | DO- 160D |
Gasket | |
C21104 | C2114 Cork Neoprone |

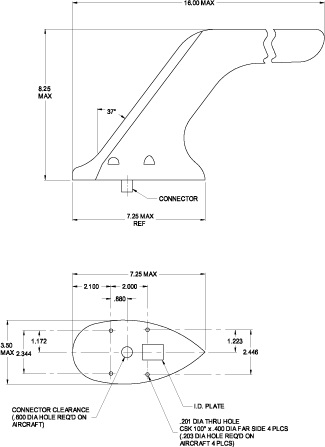

Drawing
Documents
Q&A
Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, it does not come standard with certs. Manufacturer C of C can be furnished. Please check the box in the shopping cart if you require certs (additional paperwork fees may apply)
