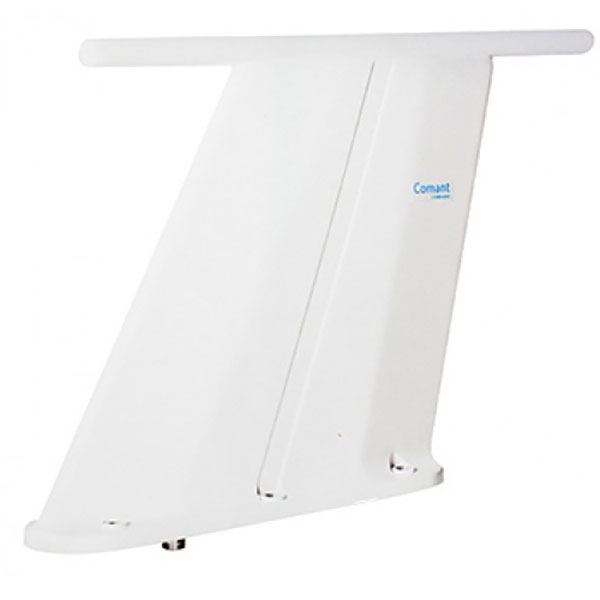

Comant Sar Tri-Band Single Port Blade Antenna - VHF/Uhr - White

$1633.00/Each
Quantity
Add to Wishlist
Part# 11-18308
MFR Model# CI-295-300

Overview

Frequency • 136 - 174 MHz, 380 - 520 MHz, and 764 - 870 MHz


The CI-295-300 tri-band, single-port, airborne SAR blade antenna is designed to provide frequency coverage to Search and Rescue teams using Motorola's APX® architecture. For maximum effectiveness and connectivity, the CI 295-300 operates within P25 standards.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Helicopter, fixed-wing turbine powered aircraft, and some light jet applications
  • Rated for the toughest vibration environments
  • Works within the public service spectrum
  • VHF/UHF
  • Tri-band
  • Single port design
  • Space-saving
  • Blade style antenna

Specifications

  • Weight: 2 lb
  • Frequency: 136 - 174 MHz, 380 - 520 Mhz, and 764 - 870 MHz
  • VSWR: 3.0:1, maximum
  • Polarization: Vertical
  • Radiation Pattern: Omni directional
  • Impedance: 50Ω
  • Power Rating: 10 watts CW, maximum
  • RTCA: DO-160G
  • Connector: J1 TNC (F)
  • Finish: Polyurethane white paint (standard)
