Home / Pilot Supplies / Fire Extinguishers / H3R /H3R Aviation Fire Extinguishers
Main Image

H3R Aviation Fire Extinguishers

52 Reviews 4 Answered Questions
From $168.00 to $12394.00
Main Image
Model Part No. Weight Classification Price Buy
A344T
13-01993
1.25 lb2B:C$294.00
Quantity
A344TC
13-02546
1.25 lb2B:C$359.00
Quantity
C352TS
13-01966
2.5 lb5B:C$452.00
Quantity
C352TSC
13-02547
2.5 lb5B:C$468.00
Quantity
C354TS
13-02548
3.0 lb5B:C$524.00
Quantity
B355T
13-02545
5.0 lb10B:C$684.00
Quantity
B369
13-02557
9.0 lb10B:C$1174.00
Quantity
B371
13-02558
13 lb2A:40B:C$1606.00
Quantity
B674
13-02562
150 lb10A:120B:C$12394.00
Quantity
B394TS
13-02549
5.5 lb5B:C$704.00
Quantity
337TS
13-24405
1.92 lb2B:C$1378.00
Quantity
351
13-24406
12.5 lb2A:10B:C$8176.00
Quantity
347TS
13-23573
3.75 lb5B:C$2496.00 Add to cart for current price
Quantity
349TS
13-23574
3.75 lb5B:C$2496.00
Quantity
A384T
13-24491
1.4 lb1B:C$168.00 Add to cart for current price
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The FAA recommends and/or requires Halon fire extinguishers on aircraft. H3Rs Halon fire extinguishers are the extinguishers of choice in the aviation industry. They cause no mess or damage, and do not require taking a plane out of service for clean-up; a costly process for both the aircraft owner and insurance carrier. The heat-seeking quality of the Halon gas makes it a superior fire fighting agent.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Articles

Click here to download the Putting Out the Flames article from the EAA Sport Aviation magazine.
Click here to download the “Fire Extinguishers: Halon is Worth the Cost” article from the Aviation Consumer Magazine

Shelf Life

The inspection and maintenance requirements for gauged fire extinguishers such as model C354TS, C352TS and A344T per NFPA 10 call for a 6-year maintenance and a 12-year hydrostatic test calculated from the month and year of manufacture. As long as the extinguisher undergoes the maintenance and passes the test it can remain in service.

H3R Aviation calculates the remaining shelf life of its gauged fire extinguishers by comparing the timing of the 6-year maintenance to the month and year of manufacture per the following formula.

(72 months - Months elapsed from manufacture date) / 72 months = Shelf life remaining

For example, if an extinguisher was manufactured in February of 2009 and the current month is June 2009, it has a remaining shelf life of 94%.

(72 months - 4 months) / 72 months = 94%

H3R Shelf-Life Documentation (PDF)

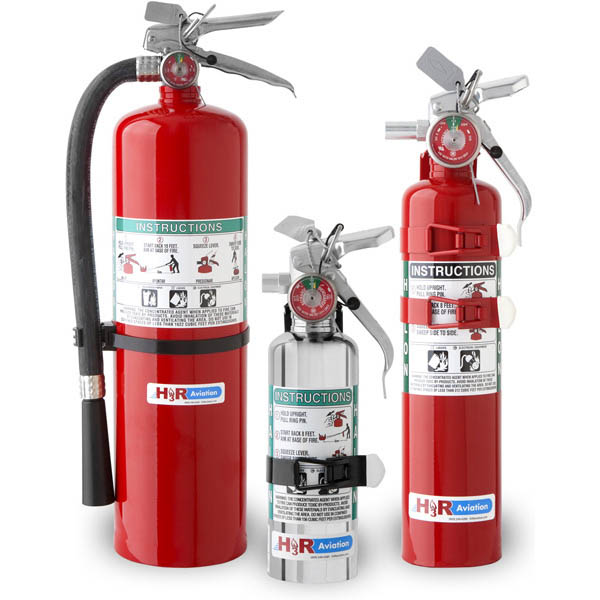

Model Differences

DISPOSABLE, LOW-MAINTENANCE
HALON 1211-1301 BLEND

These effective fire extinguishers contain a proprietary blend of the "liquid streaming agent," Halon 1211, and the gaseous "total flooding agent," Halon 1301. The blend's power lies in the Halon 1301, which is both a firefighting agent and a propellant. These compact, lightweight extinguishers are low maintenance and non-rechargeable. Fire extinguishers include a mounting bracket.
  • Lightweight aluminum canister
  • Disposable
  • Low maintenance - no recharging, servicing or pressure gauge
  • Tested to ANSI/UL 711 and UL 1093
  • Meets DOT requirements
  • Meets the requirements in Advisory Circular 20-42C , "Hand Held Extinguishers for Aircraft" and/or NFPA 408, "Standard for Aircraft Hand Portable Fire Extinguishers"
  • 12-year shelf life
RECHARGEABLE, STURDY
INDUSTRY-STANDARD HALON 1211
Hand-held Halon 1211 fire extinguishers are required on commercial transport aircraft, and for good reason. Although classified a "liquid streaming agent," Halon 1211 also performs remarkably well as a "total flooding agent," seeking out and extinguishing fires in inaccessible places. A 6-year maintenance and 12-year hydrostatic test are required. Fire extinguishers include a mounting bracket or a wall hook.
  • Rugged steel cylinder and all metal valve construction for exceptional durability
  • Pressure gauge enables easy confirmation of charge
  • Tested to ANSI/UL 711 and UL 1093
  • Meets DOT requirements
  • Meets the requirements in Advisory Circular 20-42C , "Hand Held Extinguishers for Aircraft" and/or NFPA 408, "Standard for Aircraft Hand Portable Fire Extinguishers"
Click on Model for more details
P/N 13-01993
P/N 13-02546
P/N 13-01966
P/N 13-02547
P/N 13-02548
P/N 13-02545
P/N 13-02557
P/N 13-02558
RECHARGEABLE, DURABLE
EPA-APPROVED HALOTRON 1™

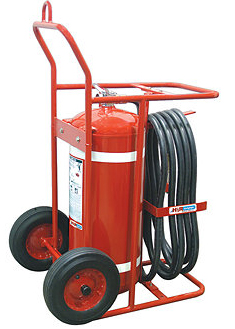

While it is less powerful pound for pound than Halon 1211, Halotron 1 offers all of Halon 1211's clean agent benefits, and Halotron 1 is less damaging to the ozone layer. H3R Aviation offers two Halotron 1 fire extinguishers: one FAA-approved unit for aircraft use and one wheeled unit for the flight line/ramp. These rechargeable extinguishers have pressure gauges and require a 6-year maintenance and a 12-year hydrostatic test.
  • Rugged steel cylinder and all-metal valve construction for exceptional durability
  • Pressure gauge enables easy confirmation of charge
  • Tested to ANSI/UL 711 and UL 2129
  • Meets DOT requirements
Click on Model for more details
P/N 13-02562

FIRE EXTINGUISHER BRACKET
845
845
817S
P/N 13-06170
P/N 13-06171
P/N 13-06172
for the A344T Fire Extinguisher
for the A344TC Fire Extinguisher

for the C352TS, C352TSC, C354TS Fire Extinguisher

Documents

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Good size to fit Under neath the co-pilot seat of my Grumman Traveler.

Dino C Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +
August 1, 2023

Renewing a 12 year old unit with the same type.

Gardaflug I Verified Purchase

HALON FIRE EXT 1211 CHROME
July 20, 2023

Pilot I Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +
July 14, 2023

Very happy with the Halon Fired extinguisher. Halon is the go-to for aircraft. The extinguisher is sturdy and compact.

Marc T Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +
June 1, 2023

Identical replacement for RV-4. Good service. Ground shipping only.

Eric B Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +
May 24, 2023

Clarens C Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +
April 18, 2023

Five stars,

Brent B Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +
April 7, 2023

Good replacement extinguisher for what I needed.

Tom F Verified Purchase

HALON FIRE EXT C352TS 2.5 GAUGE +
April 4, 2023

Delivered as advertised. The aircraft hasnt caught on fire yet so I cant comment on product performance. Ill post an update after the fire 🔥

Ferguson A Verified Purchase

HALON FIRE EXT 1211 CHROME +
March 29, 2023

A bit expensive but looks of good quality. Small enough to easily fit my RV6 cockpit

Jean G Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +
December 7, 2022

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the H3R fire extinguisher part # 13-01993 (A344T) come with a mounting bracket?

Yes, it does come with a mounting bracket.

Q: Are there 8130-3/FORM1 documents available for all the Halon H3R Fire Extinguishers?

An 8130 / FORM1 is not required for new fire extinguishers. If you were to get your extinguisher serviced, then it does require an 8130.

Q: Is part # 13-02547 HALON FIRE EXT 1211 CHROME extinguisher rechargeable?

Yes, this is a rechargeable unit.

Q: What is the weight of A344T Extinguisher?

2 lbs. 4 oz. Gross Weight
