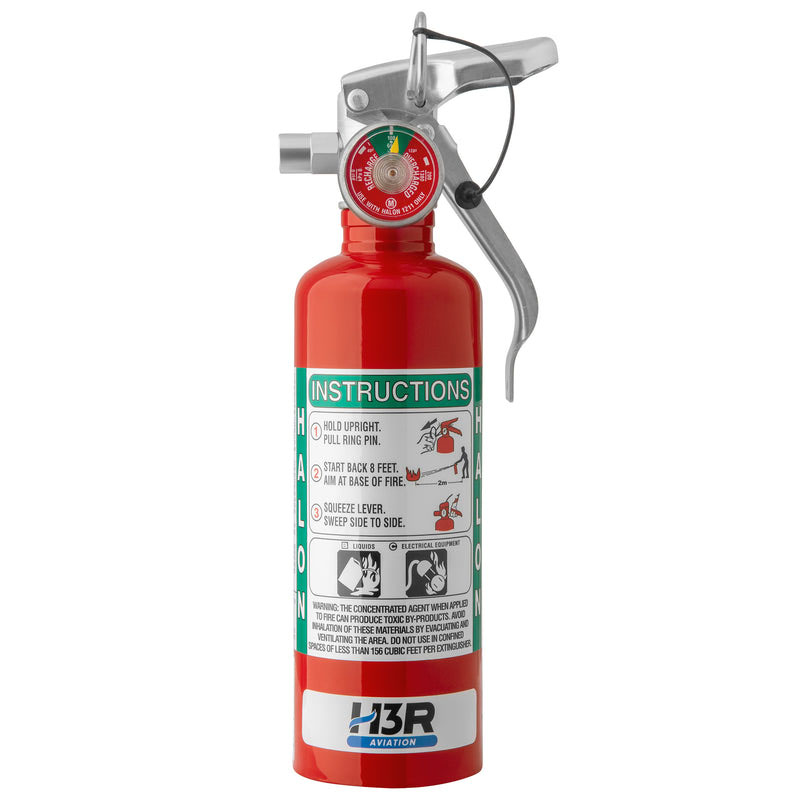

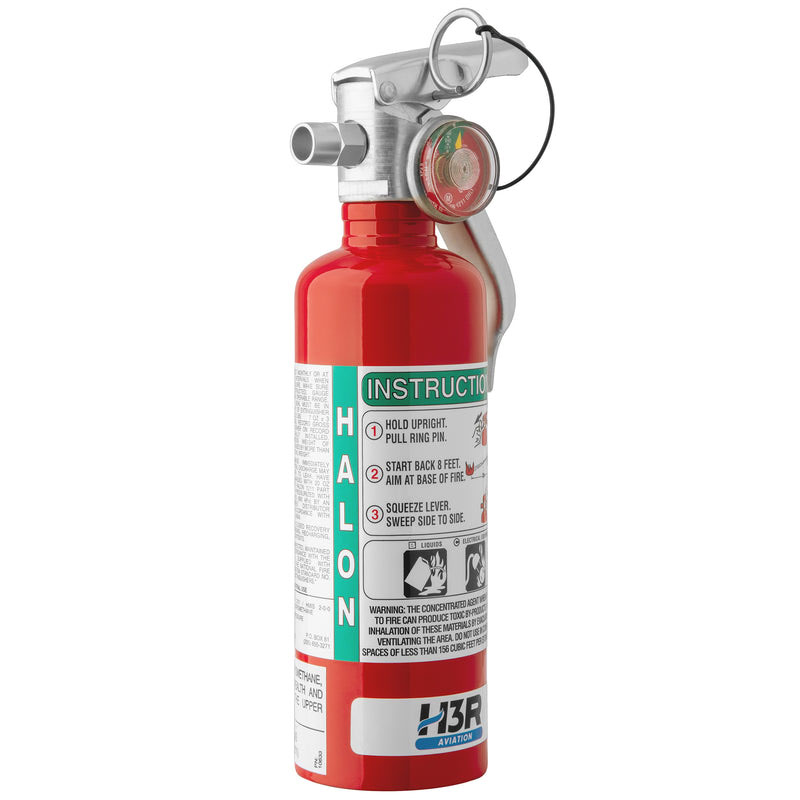

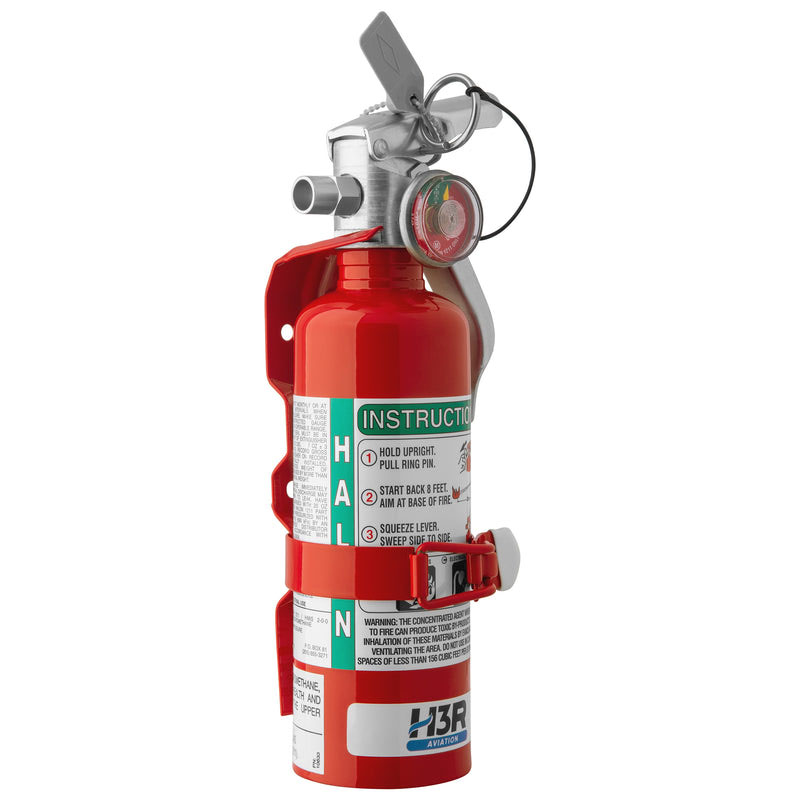

H3R Fire Extinguisher Model A344T

$237.00/Each
Part# 13-01993
MFR Model# A344T

Overview

MODEL A344T
Typical use: Cockpit/Cabin

H3R's smallest extinguisher with a gauge. Recommended for a 1-4 person aircraft, including the pilot.

Click here for complete listing of H3R Aviation Fire Extinguishers

Specifications

  • Agent weight 1.3 lb. / 0.567 kg
  • Gross weight 2.3 lb. / 1.021 kg
  • Discharge range 9-12 ft. / 2.7-3.7 m
  • Discharge time 10 sec.
  • Height 10.0 in. / 25.4 cm
  • Width 3.6 in. / 9.1 cm
  • Cylinder diameter 2.6 in. / 6.6 cm
  • UL rating 2B:C

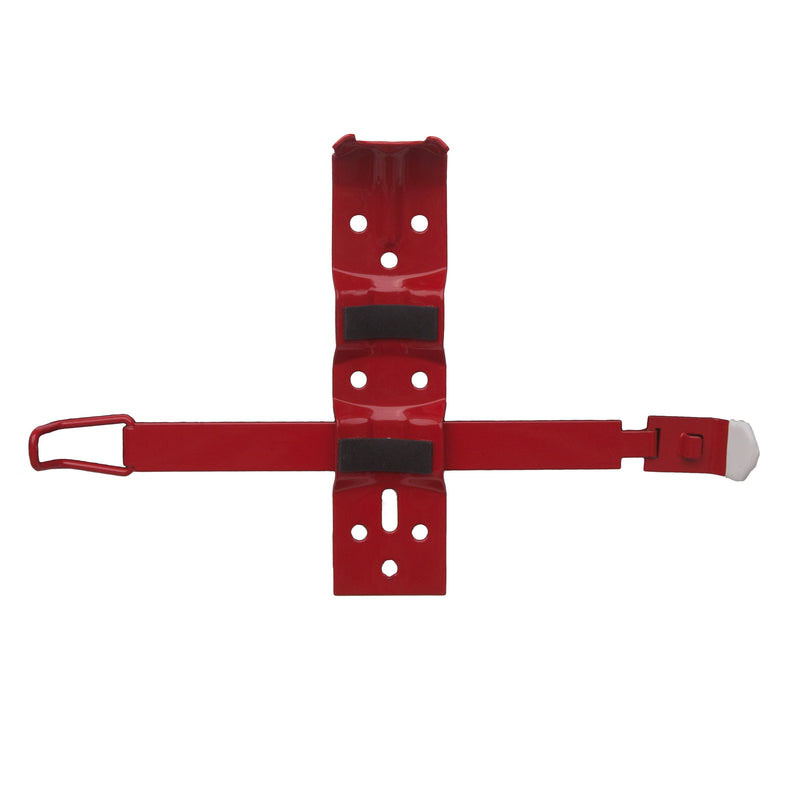

  • Bracket Single Strap (Standard)

Shelf Life

The inspection and maintenance requirements for gauged fire extinguishers such as model C354TS, C352TS and A344T per NFPA 10 call for a 6-year maintenance and a 12-year hydrostatic test calculated from the month and year of manufacture. As long as the extinguisher undergoes the maintenance and passes the test it can remain in service.

H3R Aviation calculates the remaining shelf life of its gauged fire extinguishers by comparing the timing of the 6-year maintenance to the month and year of manufacture per the following formula.

(72 months - Months elapsed from manufacture date) / 72 months = Shelf life remaining

For example, if an extinguisher was manufactured in February of 2009 and the current month is June 2009, it has a remaining shelf life of 94%.

(72 months - 4 months) / 72 months = 94%

Reviews

extinguisher does not fit well in bracket. Had to grind some material from bracket to make it fit.

Bob M Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +

January 16, 2022

Just what we were looking for. Hopefully no need for it.

Sheriff M Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +

January 6, 2022

It’s a fire extinguisher. Here’s hoping I never have to review its performance. As far as Aircraft Spruce’s performance goes, it’s like I thought “I need to replace my fire extinguisher,” and the new unit showed up on my doorstep before I put down the phone I was using to place the order. That’s an exaggeration for emphasis, but delivery was ridiculously fast, despite the pandemic.

Jack P Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +

December 15, 2021

Quality product with great processing.

Michael P Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +

December 10, 2021

Great product, keeps its weight for 6 years at minimum

Panther H Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +

November 20, 2021

Perfect size for my Tri Pacer forward of right seat. Like it having a gauge. Wouldnt fly without a extinguisher.

Marshall B Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +

November 19, 2021

Looks great. Wish it was shorter. Hope I never have to use it.

Mark E Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +

November 16, 2021

Panther H Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +

October 29, 2021

Compact & easy to carry

Mehrdad F Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +

September 16, 2021

The product is just what I need it.

Leonardo M Verified Purchase

HALON FIRE EXT1.25LB W/GAUGE +

August 23, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the A344T fire extinguisher come with the bracket or does it have to be purchased separately?

The A344T extinguisher does come with the bracket.

Q: Are the H3R extinguishers charged and ready to use or empty?

The H3R extinguishers are charged and ready to use out of the box.

Q: Do you know what the life time of the A344T extinguisher is in years?

Per the supplier: There is no defined timetable for this extinguisher as long as it is serviced properly and maintained.

Q: Can the H3R Fire Extinguishers, spefically model A344T, be shipped with the manufacturer's certificate of conformance?

Yes, they can be shipped with manufacturer's certs but they must be requested at the time of order.

Q: Is the A344T H3R extinguisher rechargeable?

Yes, these are rechargeable.

Q: Is the a344t equivalent to a Halon extinguisher?

Yes. The description of this product is HALON FIRE EXTINGUISHER 1.25LB WITH GAUGE +.

Q: Is the hole pattern on the A344T bracket interchangeable with the RTA600 and RTA1200 brackets?

No. The hole patterns are not interchangable as they do not share the same hole pattern.

Q: Does it matter if this fire extinguisher is mounted in a horizontal or inverted position, or must it be mounted upright and vertical?

It can be mounted in either orientation, but while in use it must be held in the vertical position.

Q: Can the model A344T extinguisher bracket be purchased separately? Existing bracket broke, need new.

Yes, see Part# 13-06170 for the bracket.

Q: How do I have the extinguisher refilled and serviced after its been used?

If an 8130 is required it would need to be refilled at an FAA repair station that offers that service. If an 8130 is not required a local fire service company should be able to fill it. Depending on the extinguisher it may be more cost effective to replace rather than refill.
