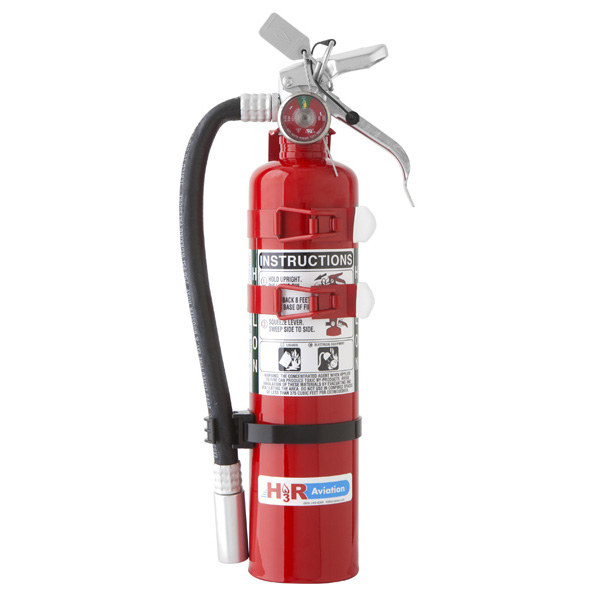

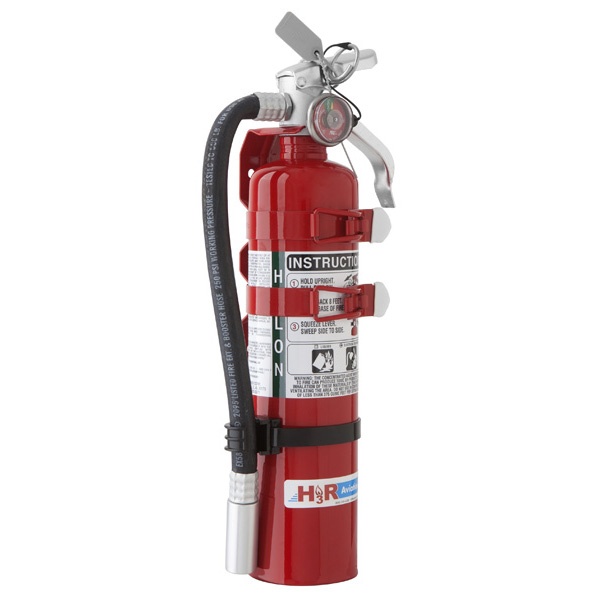

H3R Fire Extinguisher Model C354TS

Part# 13-02548
MFR Model# C354TS


MODEL C354TS - Halon 1211
Typical use: Cockpit/Cabin

Smallest model with a discharge hose (to facilitate proper upright use). Twenty percent more Halon 1211 than model C352TS, is the same size and uses the same mounting bracket.

Click here for complete listing of H3R Aviation Fire Extinguishers
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


  • Agent weight 3.0 lb. / 1.361 kg
  • Gross weight 5.6 lb. / 2.523 kg
  • Discharge range 9-15 ft. / 2.7- 4.6 m
  • Discharge time 12 sec.
  • Height 14.4 in. / 36.6 cm
  • Width 6.3 in. / 15.9 cm
  • Cylinder diameter 3.0 in. / 7.6 cm
  • UL rating 5B:C
  • Bracket Double Strap (Standard)

Shelf Life

The inspection and maintenance requirements for gauged fire extinguishers such as model C354TS, C352TS and A344T per NFPA 10 call for a 6-year maintenance and a 12-year hydrostatic test calculated from the month and year of manufacture. As long as the extinguisher undergoes the maintenance and passes the test it can remain in service.

H3R Aviation calculates the remaining shelf life of its gauged fire extinguishers by comparing the timing of the 6-year maintenance to the month and year of manufacture per the following formula.

(72 months - Months elapsed from manufacture date) / 72 months = Shelf life remaining

For example, if an extinguisher was manufactured in February of 2009 and the current month is June 2009, it has a remaining shelf life of 94%.

(72 months - 4 months) / 72 months = 94%

H3R Shelf-Life Documentation (PDF)

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed



Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the shelf life for the H3R C354TS Fire Extinguisher? P/N 13-02548

Per H3R: As long as it is maintained and serviced properly, there is NO shelf life.
