Comant VOR/GS Antenna CI-205-3

0 Reviews 2 Answered Questions
$2398.00/Each
Quantity
Add to Wishlist
Part# 11-17985
MFR Model# CI-205-3

Overview

Frequency 108-118 MHz (VOR/ LOC) 329-335 MHz (Glide Slope)

VOR/ Glide Slope High Performance Navigation Antenna Set is designed for mounting on the aircraft vertical stabilizer or helicopter tail boom. Features low weight/ drag, tubular structure to minimize helicopter rotor "down wash" forces, wide band/high efficiency electrical performance and DC grounding for lightning protection.

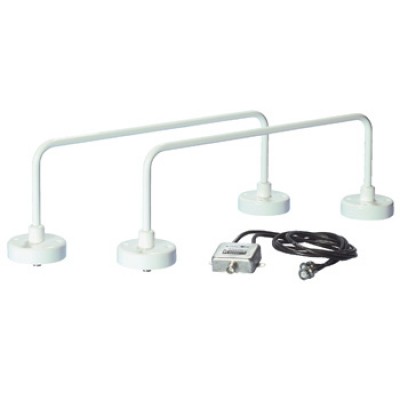

Set includes a pair (2) of "towel bar" sensor elements each with a single BNC output connector and a one-piece dual coax interconnect signal combiner harness with a single BNC connector output. Provides for a single cable routing to the avionics location.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Applications
Single and twin engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.

Approved for light helicopter installations.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

MODEL CI 205-3 TOWEL BAR SET
Electrical
Frequency

108-118 MHz (VOR /LOC)
329-335 MHz (Glide Slope)
VSWR
5.0:1 108-118 MHz (VOR /LOC)
5.0:1 329-335 MHz (Glide Slope)
Polarization
Horizontal
Radiation Pattern
Omnidirectional
Impedance
50 Ohms Nominal
Power
Receive Only
Mechanical
Weight
1.75 lb.
Height
5.25 in.
Material
Derlin Mounts / Aluminum "Towel Bar"
Finish
Polyurethane Enamel
Connector
BNC (Female)
Enviromental
Temperature
-55C- +85C
Altitude
50,000 ft
Airspeed
300 Knots TAS @25,000 ft.
Federal Specifications
RTCA Environmental
DO-160C
FAA TSO
C34c, C36c, C40c
RTCA MOPS
DO-196

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I require a new VOR antenna. The one that is fitted is the CI-205-1. Is CI-205-3 a compatible antenna?

Yes, the -3 shows the same foot print as the CI-205-1. The one main difference is the -3 has both VOR and GS where the -1 only had VOR ability.

Q: What type coax is used with the CI-205-3 antenna?

This can use either RG400 or RG142.
