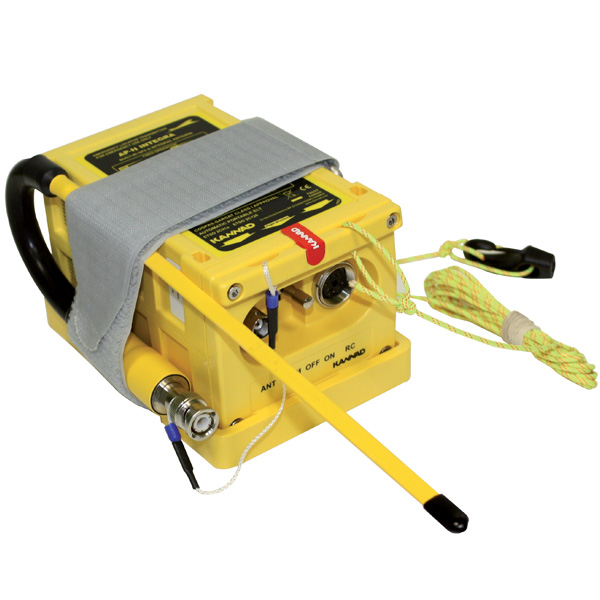

Kannad Integra AP-H Portable ELT For Helicopters

$10972.00/Each
Quantity
Add to Wishlist
Part# 11-15224
MFR Model# S1854501-03

Overview

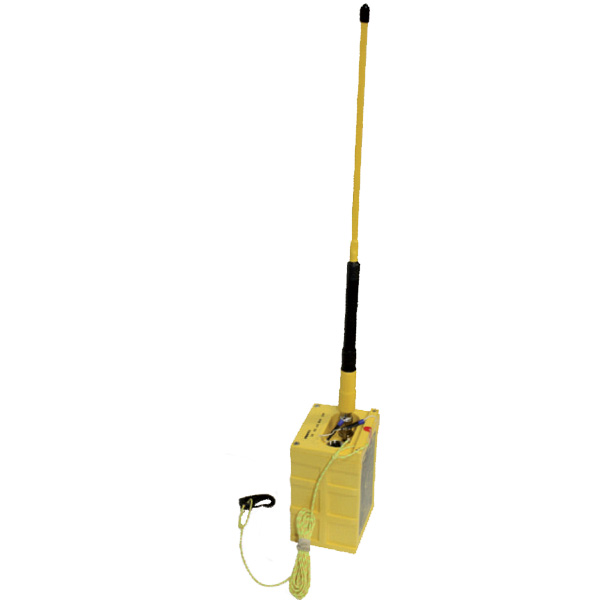

The Safran Kannad Integra AP-H is the helicopter-specific version of the portable Safran Kannad Integra ELT. It is designed for fixed installation, but can be used as a portable ELT by deploying the supplied portable antenna.

The Safran Kannad Integra AP-H has all the features of the compact plus GPS and internal 406MHz antenna. Sending a distress message with GPS coordinates enables rescuers to come directly to you, rather than search the area.

Once activated the Safran Kannad Integra AP-H transmits continuously for over 24 hours on 406MHz (distress) signal and over 48 hours on a 121.5MHz (homing) signal, alerting international rescue services to the emergency and your location via the global Cospas-Sarsat Search and Rescue satellite system.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Industry Leading 10 Year Warranty (Must Register Unit in First 24 Months)
  • Automatic Portable ELT: Type ELT(AP)
  • Specially designed for helicopters
  • Two frequency transmitter (121.5 / 406MHz)
  • 6 year battery life-time
  • Short Circuit protection
  • Weight: 1290g (max)
  • Transmitter Dimensions: 172 x 82 x 82mm
  • Overall Dimensions: 290 x 115 x 95mm

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do you also sell the airplane version of the Integra AP?

Yes. See part # 11-09928.
