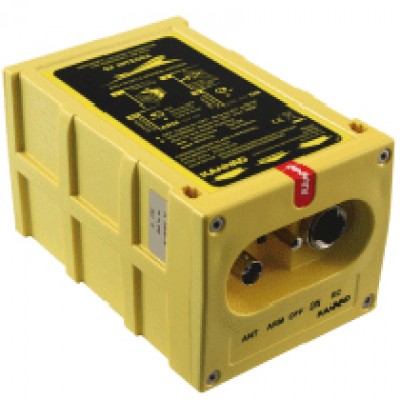

Kannad Integra 406Af ELT For Fixed Wing Aircraft - Complete Kit

Select Country
Select Antenna
Rod AntennaWhip Antenna
Add to Wishlist


The new INTEGRA 406 GPS ELT is a major step forward in the development of ELT technology and aircraft safety equipment. The INTEGRA is the only ELT in the world which operates on the international 406MHz satellite search and rescue system and includes an internal GPS and 406MHz antenna, plus an internal battery.

As a result of this technological breakthrough the INTEGRA offers the international flying community a number of major benefits over the standard ELT models available on the market today.

These include:

  • A fail-safe system which in the event of ditching the aircraft or a crash landing resulting in considerable damage, allows the INTEGRA, through its automatic activation, to still have the ability to transmit and send both the unique identification and GPS position through its clever design.

  • The ability for the pilot or crew to remove the ELT from the downed aircraft, as it will continue to transmit its lifesaving message even once removed from the airframe.

  • The INTEGRA ELT can also be installed on certain models of aircraft without having to fit an expensive external antenna (national authorities’ rules and regulations permitting) and additional external GPS interface. This will reduce cost and complexity for the aircraft owner when choosing to install the all-important life saving device.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


  • Integrated internal 406MHz antenna
  • Unique built in GPS
  • Compact size
  • Operates at temperatures as low as -20 degree C, with 24 hour certified transmission on 406MHz (distress) signal and over 48 hours on 121.5MHz (homing) signal
  • No external power supply required
  • Choice of Remote Control Panels with 3-wire and 2-wire installation options
  • Minor change approval available for most common aircraft
  • 6 year replacement battery
  • Optional programming dongle, perfect for fleet operators


  • Weighing in at just 1.873lb and measuring just 6.89 x 3.90 x 3.40 inches the INTEGRA boasts a number of new and innovative features in a very small easy to install package.
  • The INTEGRA transmits on both the international 406MHz satellite search and rescue system and on 121.5MHz for local direction finding.
  • The minimum operating temperature of the unit is -20°C.
  • The internal battery life of the INTEGRA is 6 years and the transmission on 406MHz when activated is a minimum of 24 hours.

In The Box

  • Integra ELT AF
  • Universal Mounting Bracket
  • RC200 Remote Control Switch
  • DIN-12 ELT Connector
  • QTY 1 Selected Antenna (Whip, Rod, or Blade)
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed


Nice, compact unit. Good instructions, easy to install. RC200 under-panel installation with supplied tray is chintzy. Chose in-panel mtg. despite being more laborious.

Uli R Verified Purchase


April 21, 2022

I installed the Integra 406 fixed wing unit with the aid of an A&P in my experimental aircraft in September 2014. The unit is built solidly and provides confidence in its look and feel. The instructions were straight forward and well documented. The unit was installed and passed its self test per the installation manual. I registered the unit the previous night. The next day I removed the unit to work on the mounting bracket and unknown to me, I inadvertently switched the unit from ARM to ON, instead of OFF. About ten minutes later I received a call from the SARSAT unit which monitors 406 transmissions. They inquired as to the status of my aircraft. I assured them that the aircraft was okay, and advised them that I had removed the unit from the aircraft and turned it off. The patient Sargent requested that I check it and call him back as it registered with them 10 minutes ago (which by the way, aligned with the removal of the unit). I agreed and checked the unit to find I had indeed turned it on. I turned it off and called the Sargent at SARSAT back to advise him and apologize. He understood and was very gracious. I asked him to provide the location they had on the aircraft and they had it within 100 yards of my hangar. Very impressive indeed, when you consider that the unit was 1. Out of the aircraft (no whip attenna), 2. The aircraft was in a metal hangar with the door closed. The reason that I didn’t give the unit 5 Stars was due to the poor quality of the connectors supplied with the unit which made soldering the wires very difficult.

Ed R
October 21, 2014

I recently installed an Integra AF in my RV-6A. The installation went well although you need to supply coax cable and connectors for the antenna, as well as the wiring for the remote control panel. I like the idea of the internal GPS as it simplifies wiring. Also like the idea of the internal antenna and the 10 year warranty. However i could not believe the price of a replacement battery. It is only $150 less the purchasing a complete ELT new install package. The battery is $1272, MORE THAN THE COST OF A NEW ELT! I do not understand this. YOU WILL BASICALLY HAVE TO REPLACE THE ELT EVERY 6 YEARS WHEN THE BATTERY EXPIRES.

Kimbull M
December 3, 2019

To ensure that this replacement kit would actually replace the Ameriking device I have, I checked the measurements of the RC103 Remote Control Panel which is part of the kit - the size suggests it clearly does not fit. I entered into correspondence with Kannard to clarify and after many exchanges, they answered This product was designed a long time ago, and we no longer have the details relating to which model of ACK Ameriking Remote control is to be replace. (excuse their spelling error). The issue is that this product DOES NOT FIT the hole in the panel left by the Ameriking remote, which I would have thought was critical and the whole point of a plug-and-play kit, so perhaps it works for some of the Ameriking models, but certainly does not work for all of them - check the measurements against the one you have before you buy it, or you will be patching-up your panel to fit the Kannard remote.

Trevor D
October 26, 2021


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: My Citabria has the ELT mounted on the baggage compartment floor behind the rear seat, with no external antenna as the ELT whip mounts directly to the transmitter. Can I mount the Kannad Integra in a similar manner or will I have to install an external antenna?

Yes the external antenna is required for this ELT as listed in the manual. If you have a composite or wood/fabric frame you can mount the ELT antenna inside the airframe (still need a ground plane for the antenna).

Q: What is the part number for the replacement battery for the Kannad Integra?

We added P/N 11-06297 to the accessories tab on this page which is the replacement battery for the Integra.

Q: Just purchased the Kannad Integra and did not see a TSO-C126 approval in the paper work, is EASA approval equal to the FAA's TSO-C126. And if not, is a 337 needed?

EASA approval is acceptable, and the Kannad Integra is built to TSO standards, however you still need a 337 form.

Q: Does this Kannad Integra 406AF ELT unit comply with TSO126 and TSO91A?

The full TSO information can be found in the installation manual under the Documents tab. Please download and review it there.

Q: How does this Kannad Integra 406AF ELT unit view the GPS system?

This unit can receive GPS data through a GPS source connected to an RS-232 port on the GPS.

Q: The info states that this unit has internal GPS, so is an external GPS source necessary or just an option?

An external GPS source is not necessary but highly recommended.

Q: This lists the rod antenna kit as USA & the whip antenna kit as Canada, can I use the whip antenna in the US? This is for an experimental-AB installation.

Yes, whip antenna kit can be ordered for the USA.

Q: Does this come with the TSO C126b compliant mounting bracket, your part number 11-18849, or the non-TSO compliant bracket 11-07900?

This would include the TSO compliant bracket.

Q: Does the Integra continually monitor the External GPS source as it may be dead after a crash? If you use only the internal GPS, does it have to find satellites after a crash or is it continuously searching?

Yes, once the ELT is alerted from the crash, the ELT will send the GPS info in minutes using 121.5/406 mhz. It will send the signal continuously. You may also use the dongle to activate the signal.
