LONE STAR 12/24 VDC BLOWER KIT

Select Voltage:
12 Volt24 Volt
Quantity
Add to Wishlist

Overview

FAA/PMA APPROVED

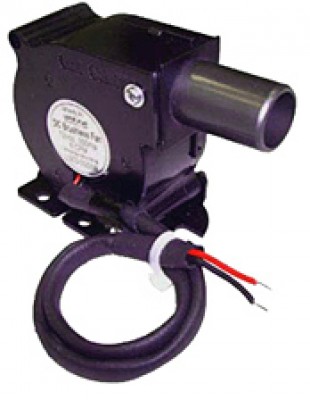

Lone Star Aviation's new 1 port blower is the smallest (1 x 2 x2 ), most efficient (brushless dc motor), and the most versatile avionics cooling fan in our industry today.

This New blower’s universal mounting bracket makes it easy to set-up and install on a verity of aircraft Install immediately on experimental, sport and soon on general aviation, business, rotor-craft, commercial class aircraft as well as Land-Mobile, Marine and Military Vehicles.

Specifications

  • Light Weight: 52 grams, 0.115 lbs
  • Enclosure: Aluminum, (powder coated)
  • Vdc, amperage: 12 = 10.2-15.8Vdc, 0.320ma
  • Vdc, amperage: 24 = 18.2-28.5Vdc, 0.300ma
  • 1 port = 5/8 inch x 1.0
  • Max Static pressure: H2O = 0.64
  • Max Air Flow: 6.7 CFM
  • Universal Mounting Bracket: (4)(mt)(h)
  • Operating Temp: -55C to +70C
  • FAA-PMA (pending), 6-30-08
  • Ultra-Small Size: 2.0H x 1.00W x 2.0L
  • Easy Installation: (4 x 6-32)
  • 1 year Limited Warranty

Documents

Reviews

Works fine - quiet and good volume

Les H
August 1, 2019

I needed a cooling fan for my Garmin 796 thats installed in my panel on my RV8. The Garmin mount already had a 5/8 cooling port connection in the rear of it. The mounting face plate on the fan has 2 possible positions to install it to make any angle direction possible. I soldered a longer red wire to reach my 12v bus and soldered a connection to the black (ground) wire. Works perfect.

Douglas R
August 10, 2018

It is light and quiet but the solder joints are very delicate. Both the solder joints for the ground and power wires failed with very little handling.

Tim B
February 14, 2021

The one I received did not have the two screws to fasten the tube to the blower housing. When I test fitted a piece of scat duct the tube came right off when I removed the scat tube with little force. The tube was only glued in with silicone and not fastened with two screws as shown in the picture. In general I think this should sell for $10 bucks to reflect its quality.

Kevin H
February 15, 2018

Q&A

Q: What is the diameter of the air intake opening?

The diameter of the intake opening is 1.25".

Q: What amp circuit breaker should I use when I install the fan?

Per the manual this has a draw of .320mA. A 1 amp should be sufficient.
