MGL Color AHRS / Compass Display Blaze Series

$359.00/Each
Quantity
Add to Wishlist
Part# 11-16581
MFR Model# AHRS-2

Overview

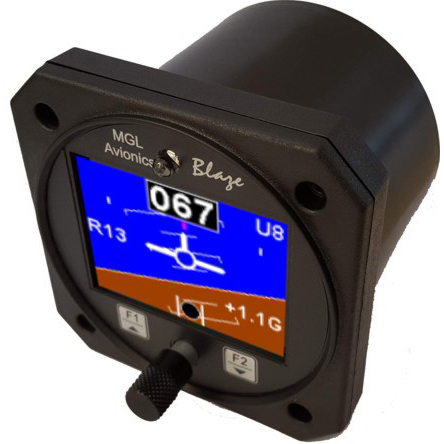

The AHRS-2 / MAG-2 is a 3 1/8 sunlight readable color display instrument providing a display for an artificial horizon reference system (AHRS), an advanced digital compass, or both depending on which sensor packages is connected.

    The AHRS-2 / MAG-2 can be setup to display the following:
Compass with optional slip indicator (requires MGL Avionics SP-6 sensor package)
Horizon with optional slip, turn indicator & G-Force (requires MGL Avionics SP-7/9 sensor package)
Turn and bank indicator (requires MGL Avionics SP-7/9 sensor package)
Combined compass and horizon display with bank indicator, optional slip indicator & G-Force (requires MGL Avionics SP6 & SP-7/9 sensor packages)

Features

  • Large 2.6 high resolution 320x240, IPS (fully viewable in all directions), sunlight readable color LCD display
  • Artificial horizon reference system (AHRS) display unit with slip indication, turn and bank and G-Force indication
  • Advanced magnetic compass with a course steering feature and slip indication
  • Can be setup as an individual compass display, artificial horizon or both
  • The AHRS-2 / MAG-2 is connected to the AHRS / Compass sensor packages by a simple CAN bus interface. This allows for the optimum placement of the sensor packages in the aircraft
  • More then one AHRS-2 / MAG-2 unit can be connected onto the CAN bus. This allows the compass, artificial horizon and the turn and bank indicator to be displayed on different units
  • G-Force indicator (MGL Avionics SP7 required)
  • Standard 3 1/8 aircraft enclosure (can be front or rear mounted)
  • The LED backlight can automatically adjust to the ambient light, or it can be manually adjusted in the menu system
  • Rotary control plus 2 independent buttons for easy menu navigation and user input
  • An external output activates when a high alarm condition has been reached
  • Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection for harsh electrical environments
  • 1 year limited warranty
