MGL XTREME EMS

$950.00/Each
Quantity
Add to Wishlist
Part# 11-10393

Overview

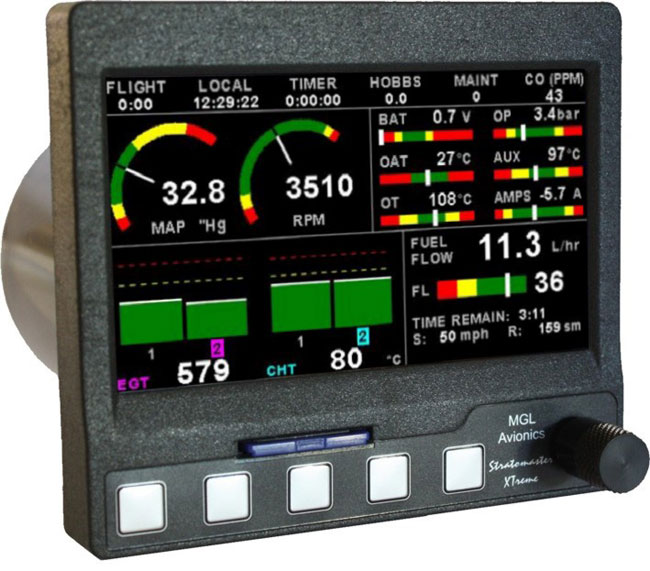

The XTreme EMS is based on a 4.3" sunlight readable, wide viewing angle, high resolution LCD display. It integrates an SD card reader (for software updates and for engine data recorder), 5 function buttons, a rotary control.

It can be connected to standard MGL Avionics RDAC (engine monitor) boxes (required).

The XTreme EMS is designed to fit a standard 3 1/8" round instrument hole. The body is located off-center allowing the unit to replace instruments on the right side of a standard 6-pack configuration or any other location that currently occupies two instruments.

Due to the light weight and very low mounting depth no complicated mounting brackets or trays are needed. Power use is low and operation from much less than 12V to around 28V is fully supported


Hardware Features

  • Powerful ARM processor
  • 4.3 high resolution 480x272, sunlight readable, wide viewing angle, 600 nits TFT LCD display
  • LED backlight (brightness can be adjusted for low light flying conditions)
  • Fits standard 3 1/8 aircraft instrument panel hole
  • SD Card interface for data recording, user splash screens, checklists, graphic information pages, firmware upgrades etc
  • 1x RS232 communication port
  • 1x MGL Avionics Airtalk communication port
  • 1x MGL Avionics RDAC communications port
  • Rotary control plus 5 independent buttons for easy menu navigation and user input
  • External alarm switch output for an external indicator lamp etc
  • Built in 50 Channel GPS receiver with over 1 million effective correlators with high immunity to jamming
  • Built in RTC (Real Time Clock)
  • Wide input supply voltage range of 8 to 30V DC
  • Built in voltage reversal and over voltage protection for harsh electrical environments
  • Light weight design

Engine Monitor Features

  • 1x Engine RPM
  • 1x Rotor RPM (Note 3)
  • 1x Manifold pressure (Note 4)
  • 1x Oil pressure input
  • 1x Oil temperature input
  • 2x Auxiliary analog channels (Pressure/Temperature/Current)
  • 12 Channel EGT/CHT display
  • 2x Fuel Flow
  • 2x Fuel Level
  • Programmable maintenance timer for scheduled routine engine maintenance
  • Engine display screens are automatically configured to optimize screen space depending on what
  • parameters are been displayed
  • Settable Hobbs meter (password protected)
  • Fuel range / endurance
  • Supply Voltage display
  • Current monitor to measure charge/discharge currents. (Note 2)
  • Engine leaning feature
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

One of the more stable EMS products I have used. Bright readable display and monitors engine parameters very precisely. Installed in Pitts S1-C biplane with O-290 and bubble canopy. Fits well due to shallow mounting depth. Once calibrated the fuel flow and totalizer great alternative to hard to see sight gauge.

Jim
July 24, 2015

Bright, easily readable display. Display setup options are good. Alarm functions provide safety. Ability to interface to almost any sensor.

Terry
May 18, 2015

Q&A

Q: Can this MGL product be installed in a certified aircraft?

No, all MGL products do not have a PMA, TSO or STC and are intended to be installed in experimental aircraft.

Q: What do I need to order in addition to the MGL Xtreme EMS for a Rotax 912 ULS engine?

You will need our Rotax 912 kit for the MGL Xtreme EMS, part number 11-11261, which will come with 2 EGT and fuel flow as a single CHT, oil temp and pressure probes come with the 912 ULS.

Q: What do I need to order in addition to the MGL Xtreme EMS for a Rotax 912 ULS engine?

You will need our Rotax 912 kit for the MGL Xtreme EMS, part number 11-11261, which will come with 2 EGT and fuel flow as a single CHT, oil temp and pressure probes come with the 912 ULS.

Q: Is there a sensor kit for an O-470?

There is no kit exactly for an O-470 as you will need to select the individual EGT and CHT probes you will need for your engine.

Q: Does the MGL Xtreme EMS come with respective sensors?

The MGL Xtreme comes with the display unit only.

Q: what is the weight of the MGL Xtreme EMS?

The MGL Xtreme EMS weighs 1 pound.

Q: Can I use the MGL Xtreme EMS to monitor my two cylinder Verner 133 Mk?

Per MGL, this will work.

Q: Hi im just wondering if this would work with a hks 700E engine.

Per MGL, the XTREME EMS will work with the HKS 700E engine.

Q: Where do I buy the sensors for this MGL Extreme EMS?

We have added all MGL senders and probes to the "Accessories" tab of this web page. Please review them there.

Q: What is the weight of a MGL Xtreme EMS with packaging ( box ) ready to post?

The MGL Xtreme EMS (11-10393) weighs 1 lb. including packaging.
