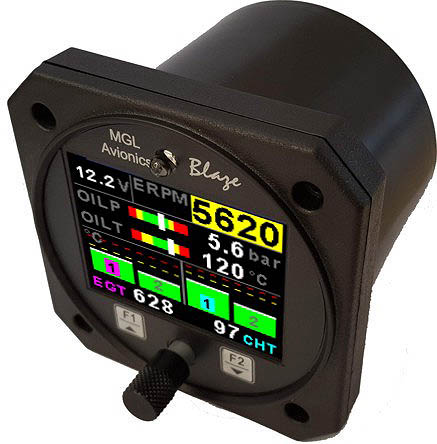

MGL Blaze Series Color Universal Engine Monitor

1 Review 15 Answered Questions
$489.00/Each
Quantity
Add to Wishlist
Part# 11-16722
MFR Model# EMS-2

Overview

The Stratomaster Blaze range consists of fifteen 3 1/8" color display aviation instruments. Using a high-resolution IPS backlit color graphics display, these instruments provide excellent daylight readability, even in direct sunlight. Each instrument includes a rotary control plus 2 independent keys for easy menu navigation and to access specific instrument features.

The Blaze range has a wide supply voltage range of 8 to 30 VDC with built in reverse and over voltage protection. All Blaze instruments that have engine monitoring functions have the ability to interface to an MGL Avionics RDAC unit via CAN bus

Specifications

  • Large 2.6” high-res 320 x 240, sunlight readable, color, wide viewing angle, IPS LCD display
  • Standard 3 1/8” aircraft enclosure
  • Rotary control plus 2 independent buttons for easy menu navigation and control
  • Alarm output
  • Multiple display screens (model dependent)
  • On board voltage reversal and over voltage protection for harsh electrical environment
  • Wide supply Voltage range (8 to 30VDC)
  • Light-weight design
  • Field-upgradeable firmware

Documents

Reviews

Submit a Review

I haven’t used it yet but if you have an engine with more than two cylinders you will need their RDAC, another $200…. So far MGL has been fairly responsive answering questions about how to hook everything up. I. Running a superior O360

Greg M Verified Purchase

MGL COLOR UNIVERSAL ENGINE MONITOR (BLAZE SERIES)
October 2, 2021

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can this MGL Blaze instrument be installed in a Piper PA 28 D?

No, this unit is not FAA Approved for use in certified aircraft. It is intended for experimental or homebuilt installations only.

Q: What sensors and functions are included in the box?

Per Manuf. no sensors come with the unit. Functions include EGT, CHT, RPM, Oil Temp /Oil Pressure

Q: Does this come with a wiring harness?

Per the Manufacturer the MGL Blaze engine monitor (11-16722)comes with a harness for the RPM/Oil Temp/Oil Pressure. The EGT/CHT are not included in the wiring.

Q: Does the Blaze EMS-2 have Fuel Flow capability?

Per the Manufacturer, yes, part # 11-16722 does have fuel flow capability.

Q: Where does the Blaze unit receive its RPM data from?

This unit requires a sensor for the RPM. Please view p/n: 11-05725.

Q: Does this also support differential fuel flow like the FF-5? Im guessing no because it seems to only have one input for fuel flow (rpm 2)

No it does not support differential fuel flow.

Q: Is the lm335 temp probe included?

Per the manufacturer these do not include probes or sensors.

Q: How is engine data saved and downloaded?

The manual does not indicate this can be done.

Q: Is this MGL Blaze engine monitor measure fuel pressure?

Per MGL, this does not display fuel pressure.

Q: This MGL BLAZE unit works without RDAC? Does it work with original Rotax 912 probes?

Yes, it will work without the RDAC, however the available channels will be limited to just four.
