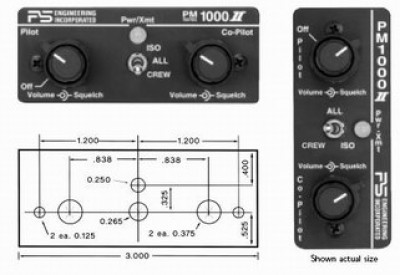

PS Engineering Pm 1000II 4 Place Mono Panel Mount Intercom For Certified Aircraft - Without Crew

Add to cart for current price
Add to Wishlist
Part# 11-11922
MFR Model# 11922


Pilot isolate, crew isolate, and dual entertainment sources allow full flexibility, even giving pilots the option to feed monaural music to the passengers and allow them to chat among themselves without disturbing the front seats. (Note: crew isolate and dual music requires the 11920 model)

  • Soft Mute circuitry is our standard-setting solution for managing the music volume levels against radio reception and transmission.
  • Automatic fail-safe interconnect to the aircraft radio wires the pilot's headset to the aircraft radio in the event of disrupted power or related failure.
  • Separate pilot and copilot transmit capabilities ensures that only the person pressing the PTT will be heard over the radio. A red transmit light is illuminated when a PTT is pressed -- this also serves as a "stuck-mic" indicator.
  • Independent intercom volume settings do not affect radio equipment volume levels, allowing better control over communications.
  • An optional digital recorder can provide up to one minute of storage of radio receptions. A continuous loop recorder, it does not record "dead air time", giving the pilots an option to store up to 16 messages at any one time.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


  • Input power: 13.8 - 27.5 Volts DC
  • Current Drain: < 250 mA (1 Amp Circuit breaker)
  • Headphone Impedance: 150-1000 ohms typical
  • Audio Distortion: <10% @ 75 mW into 150 Ω load
  • Aircraft Radio Impedance: 1000 Ω typical
  • 3 dB Mic Frequency Response: 350 Hz 6000 Hz
  • 3 dB Music Frequency Response: 200 Hz to 15 kHz
  • Unit weight: 12 Ounces (0.342 kg)
  • Dimensions: 1.25" H x 2.60" W x 5.50" D
  • (3.2 x 6.6 x 14 cm)
  • Environmental and technical qualifications: RTCA DO-160B/DO-170
  • Temperature -20C to +55C
  • Altitude 50,000 ft.
  • Frequently Purchased With
  • Customers Also Viewed


Nanotech E Verified Purchase


April 4, 2023

Great product received on time

Jerry H Verified Purchase


October 20, 2022

ordering was easy, delivery was prompt. all good.

Ronnie D
July 20, 2020

This unit was ordered as a replacement for a old PS Engineering intercom that the crew side did not work well after years of good service. Only to Expedite the repair. PS Engineering has a very good return and repair program. Today our local Aircraft radio shops do not do bench work .

Donald E
February 16, 2020

Great intercom, if you already have an audio panel. Wiring this unit is the Saturday project in the EAA SportAir Electricity Workshop ( Have installed in several aircraft. Owners were all pleased.

Dick K
February 3, 2019

Solved a long-standing radio problem.

Bob H
January 24, 2019

Installed in a Piper Tomahawk works as advertised, crystal clear and the volume does not affect the radio volume they work independently. Very easy to install especially if you purchase the harness from Aircraft Spruce.

David K
September 2, 2018

This review is of Aircraft Spruce and the order. The intercom has not been installed as of this review. Aircraft Spruce was very prompt with the order and getting the part in the mail. Arrived promptly from the Georgia East location and was packaged very well for safe handling. I recommend Aircraft Spruce for their promptness and pricing of the parts I have ordered so far. I will continue to look to Aircraft Spruce first for my needs.

Joe M
November 22, 2018


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the PS Intercom system be installed with the Dynon Skyview radio?

Yes, per Dynon, they are compatible.

Q: What is included with the PM 1000 INTERCOM 4 PLACE W/ CREW CUSTOM HARNESS part # 11-12112? How is it custom?

The harness will include all jacks for 4 positions within the aircraft and music input jacks. The ability of specifying the harness lengths versus standard length harnesses makes this part number custom.

Q: Is the PS Engineering PM 1000II intercom TSOd?

Yes, this intercom is TSO approved.

Q: What are the dimensions (L x W x D) and weight of the vertical PM1000 II?

Dimensions: 1.25" H x 2.60" W x 5.50" D. Weight 12 Ounces (0.342 kg).

Q: Just information, A current question on about the PS1000II Intercomm states that the Intercom is TSOd. That is true for all except the model with the recorder, I just called PS Engineering to verify. The recorder version is for non certified aircraft.

Thank you for the information, we will post it for future customers.

Q: Can this intercom be operated only with batteries or does it have to be wired to the aircraft power source?

It must be wired to an aircraft power source.

Q: What is the difference between with crew and without crew versions of the PM 1000II 4 place mono intercom?

The Without-Crew model (PSE P/N 11922) has a center selector switch with a position labeled Iso* that allows the pilot to isolate himself and the radios from the other 3 intercom stations. While the With-Crew model (PSE P/N 11920) has a center selector switch with an additional third position labeled Crew which allows both the pilot and co-pilot positions (collectively the front seat flight crew) to isolate themselves from the back seater allowing the front seaters to converse with each other and transmit on the radios without the distraction or interruption from the back seaters. So it essentially comes down to whether the aircraft owner wants the pilot to be able to isolate himself alone or add the additional option of being able to isolate both front seaters as a Crew. Obviously there would be no reason to have the crew model in a two-seat aircraft. The jack wiring is also different between the two models so the harnesses are not the same.

Q: Do these units include the DB 25 connector that mates with the rear of the unit? If so, are the pins solder or crimp style?

The DB 25 connector is included with the unit and pins are crimp
