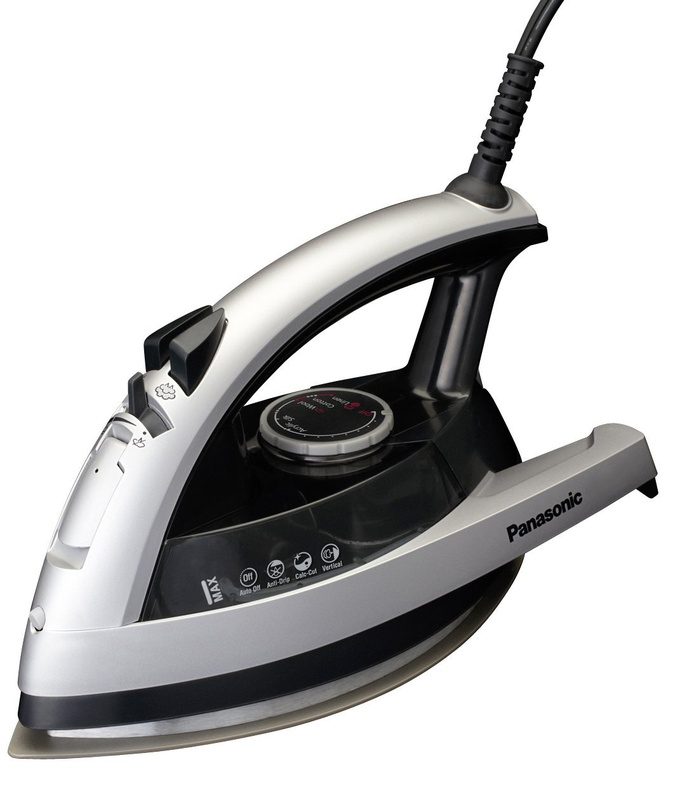

Panasonic Iron Multi Directional 3600

$95.80/Each
Quantity
Add to Wishlist
Part# 09-03785
MFR Model# NI-W810CS

Overview

360° Quick Steam/Dry Iron with Curved Non-Stick Coated Titanium Soleplate, Multi-Directional Design with Added Steam Vents, 3-Way Auto Shut-Off, Adjustable Steam, Dial Temperature Control, "Stay Clean" Steam Vents and Anti-Drip System.

Maximum Temperature 392F (200C)

Controls: Choose Steam or Dry Operation: 4 Button Selector
Select "Extra" Jet-of-Steam: Left Pushbutton
Cool Water Spay or Mist: Right Pushbutton

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Innovative Design
  • Stay Clean Vents
  • Easy-to-use
  • Select the Amount of Steam for the Job
  • Vertical Steam

Specifications

  • Maximum Temperature 392F (200C)
  • Automatic Shut Off Yes
  • Anti-calcium System Yes
  • Ironing Method Steam
  • Height 5.8"
  • Width 4.8"
  • Depth 13.8"
  • Color Silver
  • Features Anti-drip
  • Auto Shutoff
  • Vertical Steam
  • Product Model NI-W750TS
  • Power Consumption 1500 W
  • Input Voltage 120 V AC
  • Minimum Temperature 176F (80C)
  • Spray Yes
  • Sole Plate Coating Titanium
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Heats up quickly and holds calibrated temperature well. Buy an infrared temperature thermometer

Rick C Verified Purchase

360 DEGREE FABRIC IRON

September 6, 2023

I bought two of these irons, only to find that they have a safety feature: it wont heat up if not vertical and it wont heat up if it isnt moved every 15 seconds or so. Theres a little circuit board in the handle. I removed mine completely, but one can bypass easily enough. Remove the single screw at the back of the unit, exposing the entry of the line cord. Youll see a grey, white and green wire coming from up in the handle (thats where the safety lives). 1. Disconnect the black wire attached to the green wire. Thats the hot. 2. Disconnect the white wire. Thats the switched hot, coming from the safety. Connect the black wire from step 1 to the screw. Now the hot isnt switched. 3. Disconnect the grey wire. Now that the green, white and grey wires go nowhere (you could snip them off once youre satisfied the iron is working), and the black hot wire has been moved to the white wire screw, youre done. No more safety. Have fun pulling fabric.

Robert A
June 23, 2020

I was dissapointed with the range of temperature it has between when it shuts off to when it turns on again. About 40* F.

Orville M
March 5, 2018
