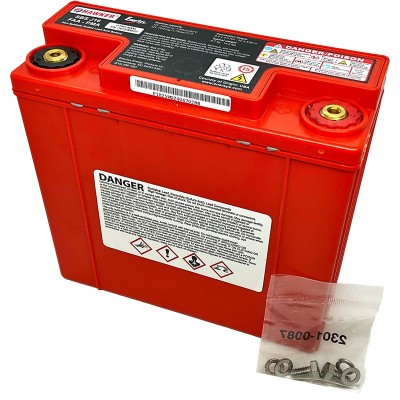

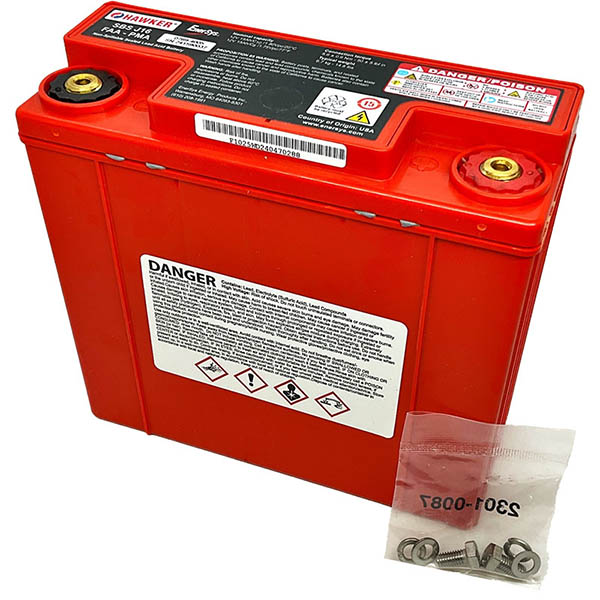

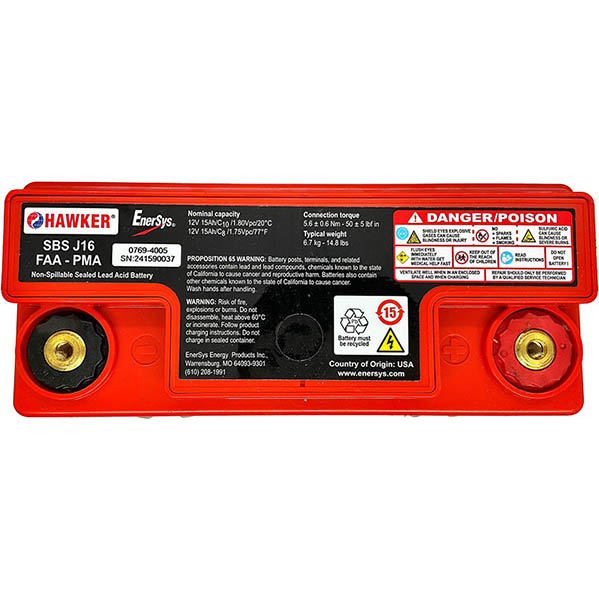

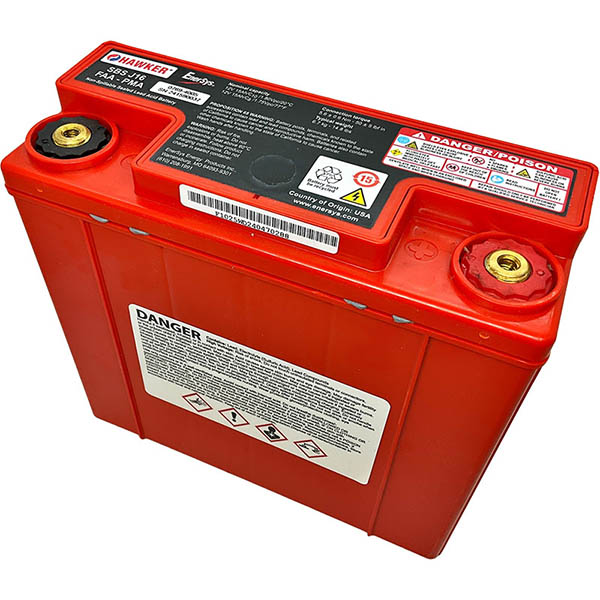

Powersafe Dry Cell Battery Sbs J-16 FAA PMA

$238.00/Each
Quantity
Add to Wishlist
Part# 11-01945
MFR Model# SBSJ16

Overview

Battery Features:
  • Drycell design for mounting in any orientation and fully aerobatic use
  • 2 year storage life to 50% state of charge when stored at 77F (25C)
  • 70% of rated starting power delivered at -4F (-20C)
FAA-PMA Certified Sealed Aircraft Battery For Piper PA-18 and PA-19 Series
STC MUST BE PURCHASED SEPARATELY WITH STCD BATTERY BOX KIT.

FAA-PMA Certified Sealed Aircraft Battery For Cessna C-170, C-180, C-195 Aircraft
STC MUST BE PURCHASED SEPARATELY WITH STCD BATTERY BOX KIT.

337 field approval must be filed for all other aircraft.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Nominal Capacity @ C1: 12.3 Ah
  • Nominal Capacity @ C/10: 16.0 Ah
  • Altitude Rating: -1,500 to 70,000 ft.
  • 5 second 80F (27C) cranking amps to 7.2V: 680 amps
  • CCA @ 0F (-17.8C): 220 amps
  • CA @ 32F (0C): 300 amps
  • HCA @ 80F (27C): 370 amps
  • Reserve Capacity: 25 minutes @25amps
  • Terminals: Brass female for M6 stainless steel bolt
  • Terminal Torque: 50 in-lb
  • Length, in. (mm): 7.15 (181.61)
  • Width, in (mm): 3.01 (76.33)
  • Height, in (mm): 6.61 (167.77)
  • Weight, lb (kg): 15.4 (6.99)
  • Resistance at 1kHz @77F: 7 mOhm
  • Short circuit current: >1,800 amps
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Great battery, lightweight and have gotten 8 plus years out of them. Easily installed using AC43.132B Chapter 10.

Pierce A Verified Purchase

POWERSAFE BATTERY SBSJ16

March 3, 2023

Great experience, had a couple issues with delivery which AC resolved.

Direct A Verified Purchase

POWERSAFE BATTERY SBSJ16

February 17, 2023

David A Verified Purchase

POWERSAFE BATTERY SBSJ16

February 17, 2023

Great battery. I calculated, that with the given charging cycles, this battery should last 3-4 years at the rate I fly. The battery (same make and model) lasted 9 years before dying. To me, that is a very good value.

Dave L Verified Purchase

POWERSAFE BATTERY SBSJ16

January 18, 2023

I replaced my weakening 4-year-old Odessey PC680 with this SBSJ16 battery. The battery is installed in my Vans RV-9A. It is the identical size and shape of the PC680. Both batteries are made by the Enersys company. The SBSJ16 battery has 220 CCA vs 170 on the PC680 and it makes a big difference cranking over on cold winter mornings.

Stephen F Verified Purchase

POWERSAFE BATTERY SBSJ16

December 16, 2022

These batteries only lasts about 5 years, but they have plenty of juice right up until they basically fail outright. Very little warning.

Patrick S Verified Purchase

POWERSAFE BATTERY SBSJ16

October 13, 2022

Great

Smoky M Verified Purchase

POWERSAFE BATTERY SBSJ16

August 21, 2022

Tim B Verified Purchase

POWERSAFE BATTERY SBSJ16

August 2, 2022

Great Battery, My last SBSJ16 lasted 6 years before getting weak.

Brandon O Verified Purchase

POWERSAFE BATTERY SBSJ16

July 5, 2022

Very good service and prompt delivery. Couldnt have been better. Thanks

James P Verified Purchase

POWERSAFE BATTERY SBSJ16

April 23, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do you have a Form-1 or 8130 form for the Odyssey Dry Cell Battery SBS J-16?

For FAA-PMA'd parts an 8130 form can be ordered alongside for an additional fee. Please indicate the request for this form at time of purchase.

Q: Odyssey battery SBS-J16: does the battery come with terminal hardware?

Yes, the SBS-J16 does come with the terminal bolts and washers.

Q: Is the Oddysey SBS J-16 dry cell battery considered hazardous material for shipping purposes?

No, this battery is not considered hazmat for shipping.

Q: Is the SBSJ-16 delivered charged? If not, at what amperage should it be charged?

Yes, this battery is delivered charges. Should read between 12.65 and 12.85 amps.

Q: Which chargers or Battery Minder systems are approved for this Odyssey SBS J-16 battery?

Part # 11-19241 is recommended. This is 128CEC2-AA-S3 charger which is made to work with Hawker/Odyssey batteries which are very similar to this Powersafe battery.

Q: Can you just take the old lead acid battery out of the plane and hook this one in it place being charged from the alternator or do you need a special interface for this battery (SBS J-16)?

The batteries are charged ready to install.

Q: Does this Odyssey battery have a PMA number stamp affixed to it?

It has FAA/PMA stamped on the top of the battery.

Q: You dont mention it on your web page but svenns aviation has an STC to install this battery in the following aircraft. PA-22, PA-20, PA-19, PA-18, PA-16, PA-14 and PA-12 Here is the web page http://svennsaviation.com/ and STC page http://svennsaviation.com/stcs/battery/ I dont work for this company. Just trying to help out fellow piper owners.

Thank you for providing this detail on the battery. It has been posted to the Q+A section for other customers.

Q: What kind of warranty does the Odyseey Dry Cell SBS J-16 battery have?

2 year manufacturer's warranty from purchase.

Q: Is this Powersafe Dry Cell Battery SBS J-16 a 12 volt battery?

Yes, this is a 12v battery.
