SILICON NIPPLE RED MS25171-1S

$1.30/Piece
Part# 11-03913
MFR Model# 06399-5

Overview

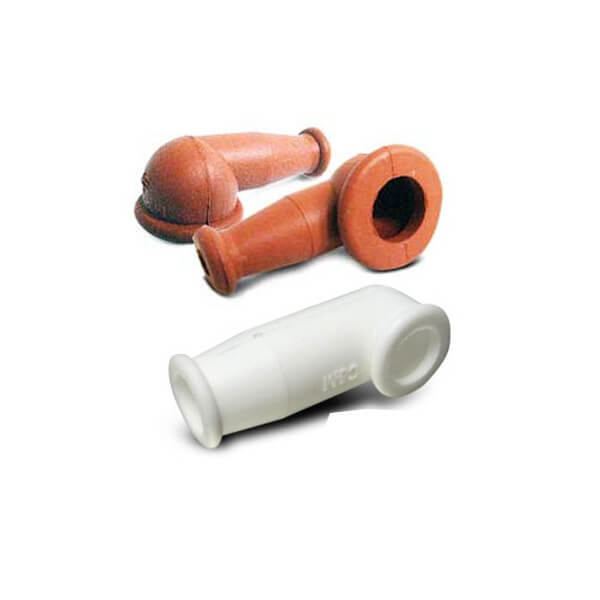

Right angle nipples made of silicone rubber
MIL-R-5847, Class II, Grade 50. A-A-59178B

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

A-A-59178B A B C D E F G H
Dash No. Max. .125 .005 Dia. Dia. Dia. Dia. Dia.
-1 1.38" 0.56" 0.06" 0.4" 0.63" 0.16" 0.41" 0.76"
-2 2.5" 1" 0.06" 0.56" 0.82" 0.31" 0.56" 0.95"
-3 2.5" 1" 0.06" 0.56" 0.82" 0.43" 0.68" 0.95"
-4 2.5" 1" 0.06" 0.56" 0.82" 0.56" 0.82" 0.95"
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Must have

Genavco A Verified Purchase

SILICON NIPPLE RED MS25171-1S

February 14, 2023

Download A-A-59178B from everyspec for a better drawing.

John B
February 2, 2023

These works great. just be sure to measure to get the correct size for the wire and for the lug.

Owl E Verified Purchase

SILICON NIPPLE RED MS25171-1S

January 8, 2023

Daniel D Verified Purchase

SILICON NIPPLE RED MS25171-1S

July 13, 2022

Exactly what I needed

Todd H Verified Purchase

SILICON NIPPLE RED MS25171-1S

March 1, 2022

Keiji K Verified Purchase

SILICON NIPPLE RED MS25171-1S

November 5, 2021

I did not expect all red. A misunderstanding.. Repeat order in white

T R Verified Purchase

SILICON NIPPLE RED MS25171-1S

September 12, 2021

Excellent responsive quoting and support. Thanks!

Lockheed M Verified Purchase

SILICON NIPPLE RED MS25171-1S

July 15, 2021

Easy to order and good selection for our needs. Thanks!

Lockheed M Verified Purchase

SILICON NIPPLE RED MS25171-1S

July 7, 2021

perfect fast shipping

Ham K
May 21, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these widths in inches or cm?

The dimensions listed are in inches.

Q: Any temperature specification? How do they perform inside an engine cowling?

The temp range is from -85 to 4010F, and these are commonly used on engine components.
