Description | Part Number | Price | Buy |
---|---|---|---|
ODYSSEY EXTREME BATTERY ODS-AGM16CL ( PC-625 ) | 11-08080 | $189.00 | |
ODYSSEY EXTREME BATTERY ODS-AGM15L ( PC545 ) | 11-08081 | $149.00 | |
ODYSSEY EXTREME BATTERY ODS-AGM15LMJ ( PC545MJ ) | 11-08082 | $173.00 | |
ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 ) | 11-02233 | $169.00 | |
ODYSSEY EXTREME BATTERY ODS-AGM28L ( PC925 ) | 11-05173 | $249.00 | |
ODYSSEY EXTREME BATTERY ODS-AGM28 ( PC925L ) | 11-17113 | $249.95 | |
ODYSSEY EXTREME BATTERY ODS-AGM28LMJ ( PC925MJ) | 11-01651 | $259.00 |

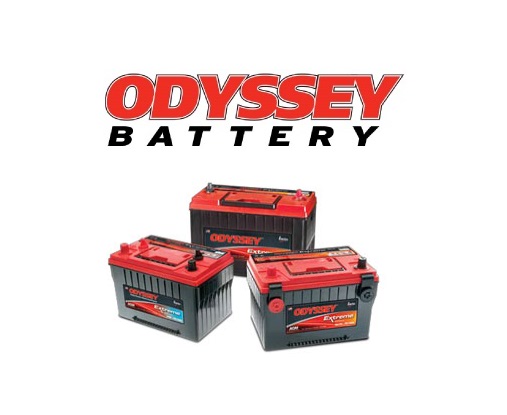

Odyssey batteries, with an eight year design life saves you time and money because you do not have to replace your battery as often. It is also the only battery that is capable of delivering a large number of deep cycles up to 400 when fully discharged or up to 500 when discharged to 80%. Plus, the battery is specially designed for high vibration applications.
Unlike conventional batteries that need to be recharged every six to twelve weeks, the Odyssey battery will maintain up to 50% state of charge after 2 yrs if stored at room temperature (77ºF). At temperatures lower than 77°F, storage times will be even longer. The cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40ºF. Odyssey batteries may be shipped worry free by UPS/Federal Express or air. 2 Year Warranty |
![]() |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
MODEL | Volt | PHCA** 5 sec | CCA* | HCA | MCA | Nominal Capacity | Res Cap Min. | Length In. (mm) | Width In. (mm) | Height In. (mm) | Weight lbs (kg) | Terminal | Torque Spec lbs (max) | Internal Res (mΩ) | Short Circuit Current | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
20HrAh | 10HrAh | |||||||||||||||
PC310 | 12 | 310 | 100 | 200 | 155 | 8 | 7 | 9 | 5.43 (138.0) | 3.39 (86.0) | 3.98 (101.0) | 5.9 (2.7) | M4 - Receptacle | 8.9 (1.0) | 27.1 | 455A |
PC370 | 12 | 425 | 200 | 315 | 270 | 15 | 14 | 25 | 7.9 (200.0) | 3.0 (77.0) | 5.5 (140.0) | 12.5 (5.7) | M6 Stud | 35 (3.9) | 13.5 | 891A |
PC535 | 12 | 535 | 200 | 300 | 265 | 14 | 13 | 21 | 6.70 (170.2) | 3.90 (99.1) | 6.24 (158.5) | 12.0 (5.4) | M6 - Receptacle | 40 (4.5) | 8 | 1000A |
PC545 | 12 | 460 | 150 | 280 | 220 | 13 | 12 | 18 | 7.00 (177.8) | 3.38 (85.9) | 5.17 (131.3) | 11.4 (5.2) | M6 - Receptacle | 50 (5.6) | 10 | 1200A |
PC625 | 12 | 540 | 220 | 420 | 340 | 18 | 17 | 26 | 6.70 (170.2) | 3.90 (99.1) | 6.95 (176.5) | 13.2 (6.0) | M6 - Receptacle | 40 (4.5) | 7 | 1800A |
PC680 | 12 | 520 | 170 | 350 | 280 | 16 | 16 | 24 | 7.27 (184.7) | 3.11 (79.0) | 7.55 (191.8) | 15.4 (7.0) | M6 - Receptacle† or SAE 3/8” Receptacle | 50 (5.6) | 7 | 1800A |
PC925 | 12 | 900 | 330 | 610 | 480 | 28 | 27 | 48 | 6.64 (168.7) | 7.05 (179.1) | 5.83 (148.1) | 26.0 (11.8) | M6 - Receptacle† or SAE 3/8” Receptacle | 60 (6.8) | 5 | 2400A |
PC950 | 12 | 950 | 400 | 600 | 500 | 34 | 32 | 60 | 9.8 (250.0) | 3.8 (97.0) | 6.1 (156.0) | 20.0 (9.0) | M6 Stud | 35 (3.9) | 7.1 | 1700A |
PC1100 | 12 | 1100 | 500 | 800 | 650 | 45 | 43 | 87 | 9.8 (250.0) | 3.8 (97.0) | 8.1 (206.0) | 27.5 (12.5) | M6 Stud | 35 (3.9) | 5.1 | 2450A |
PC1200 | 12 | 1200 | 540 | 860 | 725 | 42 | 40 | 78 | 7.87 (199.9) | 6.66 (169.2) | 7.60 (193.0) | 38.2 (17.4) | M6 - Receptacle† or SAE 3/8” Receptacle | 60 (6.8) | 4.5 | 2600A |
PC1220 | 12 | 1220 | 680 | 960 | 860 | 70 | 64.8 | 135 | 10.94 (278.0) | 6.88 (175.0) | 7.48 (190.0) | 45.6 (20.7) | DIN Lead Post | N/A | 5.7 | 2200A |
75-PC1230 | 12 | 1230 | 760 | 1050 | 815 | 55 | 50 | 110 | 9.46 (240.3) | 7.08 (179.8) | 7.22 (183.4) | 45.5 (20.6) | SIDE 3/8” Receptacle | 60 (6.8) | 2.5 | 3100A |
75/86-PC1230 | 12 | 1230 | 760 | 1050 | 815 | 55 | 50 | 100 | 9.46 (240.3) | 7.08 (179.8) | 7.92 (201.2) | 45.5 (20.6) | Top SAE SIDE 3/8” Receptacle | 60 (6.8) | 2.5 | 3100A |
PC1350 | 12 | 1350 | 850 | 1080 | 960 | 95 | 88.5 | 195 | 13.90 (353.0) | 6.88 (175.0) | 7.48 (190.0) | 60.4 (27.4) | DIN Lead Post | N/A | 4.2 | 2900A |
25-PC1400 | 12 | 1400 | 850 | 1150 | 950 | 65 | 55 | 130 | 9.46 (240.3) | 6.84 (173.7) | 8.69 (220.7) | 50.0 (22.7) | SAE | 60 (6.8) | 2.5 | 3100A |
35-PC1400 | 12 | 1400 | 850 | 1150 | 950 | 65 | 55 | 130 | 9.46 (240.3) | 6.84 (173.7) | 8.69 (220.7) | 50.0 (22.7) | SAE | 60 (6.8) | 2.5 | 3100A |
34-PC1500 | 12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 135 | 10.85 (275.6) | 6.76 (171.7) | 7.88 (200.2) | 49.5 (22.4) | SAE | 60 (6.8) | 2.5 | 3100A |
34R-PC1500 | 12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 135 | 10.85 (275.6) | 6.76 (171.7) | 7.88 (200.2) | 49.5 (22.4) | SAE, Positive Right Terminal | 60 (6.8) | 2.5 | 3100A |
34M-PC1500 | 12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 135 | 10.85 (275.6) | 6.76 (171.7) | 7.95 (201.9) | 49.5 (22.4) | SAE - and 3/8” Stud (Pos.) 5/16” Stud (Neg.) | 60 (6.8) | 2.5 | 3100A |
34/78-PC1500 | 12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 135 | 10.85 (275.6) | 7.08 (179.8) | 7.88 (200.2) | 49.5 (22.4) | TOP SAE SIDE 3/8” Receptacle | 60 (6.8) | 2.5 | 3100A |
78-PC1500 | 12 | 1500 | 850 | 1250 | 1050 | 68 | 62 | 135 | 10.85 (275.6) | 7.08 (179.8) | 7.34 (186.4) | 49.5 (22.4) | SIDE 3/8” Receptacle | 60 (6.8) | 2.5 | 3100A |
PC1700 | 12 | 1550 | 810 | 1325 | 1175 | 68 | 65 | 142 | 13.03 (331.0) | 6.63 (168.4) | 7.78 (197.6) | 60.9 (27.6) | M6 Receptacle† or SAE 3/8” Receptacle | 60 (6.8) | 3.5 | 3500A |
65-PC1750 | 12 | 1750 | 950 | 1350 | 1070 | 74 | 65 | 145 | 11.83 (300.5) | 7.20 (182.9) | 7.50 (190.5) | 58.0 (26.3) | SAE | 60 (6.8) | 2.0 | 5000A |
PC1800-FT | 12 | 1800 | 1300 | 1600 | 1450 | 214 | 190 | 475 | 22.75 (577.9) | 4.9 (125.0) | 12.44 (316.0) | 132.3 (60.0) | 3/8" Stud | 80 (9.0) | 3.3 | 3800A |
31-PC2150 | 12 | 2150 | 1150 | 1545 | 1370 | 100 | 92 | 205 | 13.06 (331.7) | 6.89 (175.0) | 9.59 (243.6) | 77.8 (35.3) | 3/8" Stud or SAE | 150-220 (16.9-22.6) | 2.2 | 5000A |
31M-PC2150 | 12 | 2150 | 1150 | 1545 | 1370 | 100 | 92 | 205 | 13.00 (330.2) | 6.80 (172.7) | 9.39 (238.5) | 77.8 (35.3) | SAE - and 3/8” Stud (Pos.) 5/16” Stud (Neg.) | 150-220 (16.9- 22.6) | 2.2 | 5000A |
PC2250 | 12 | 2250 | 1225 | 1730 | 1550 | 126 | 114 | 240 | 11.26 (286.0) | 10.59 (269.0) | 9.17 (233.0) | 86.0 (39.0) | SAE Terminal and 3/8" Stud | 100 (11.0) for 3/8" Stud Only | 2.1 | 5000A |
I purchased an Odyssey PC-625 from AC Spruce on August 5, 2022. It failed less than a year later. I followed ACS warranty instructions. It has now been 7 weeks since making the warranty submission. No adjustment has been made. ACS did not respond to my last request for an update. I give up!
ODYSSEY EXTREME BATTERY ODS-AGM16CL ( PC-625 )
This battery is an exact replacement for a battery that is 11 years old. The old battery would sit unused from mid November till mid May without being recharged or float charged. Every spring and all summer it started every time.
ODYSSEY EXTREME BATTERY ODS-AGM16CL ( PC-625 )
Battery is fine, Spruce service was great.
ODYSSEY EXTREME BATTERY ODS-AGM28LMJ ( PC925MJ)
These batteries are amazing little beasts. I have been flying them for 10 years in my RV-7A. I get about 3 years out of them before I feel like they are just not up to it for my plane. Old ones go into my riding lawn mower and tractor where they live many more years. Great product.
ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )
ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )
Good job. Order as expected
ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )
to be installed...
ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )
This is a great battery for the firewall battery conversion!
ODYSSEY EXTREME BATTERY ODS-AGM16CL ( PC-625 )
Im replacing the 11 year old (still functioning) battery in my Sonex. These batteries are awesome!!
ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )
These batteries are quite dependable. this my second one since I first flew my airplane in 2013. I had unfortunately left my master switch on and drained the battery completely a few times over the years but it always came back to full power when charged. I just thought I wouldnt press my luck with it and purchased another one. The old one still works well in my lawn tractor!
ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, the Odyseey dry cell batteries, including the PC625 model, are not FAA Approved and cannot be installed in certified aircraft.
This is not a TSO'd battery. As every FSDO is different, you would need to check with your local FSDO prior to purchase to see if they will accept this for a field test.
The only model that is FAA Approved for installation in certiefied aircraft is the SBS J-16, our part number 11-01945. It is approved for installation in the Piper PA18 and PA19. Any other certified installation will require a field approval.
Per the manufacturer: The odyssey dry cell battery can be charged using a regular battery charger. A deep cycle charger is recommended, as long as the charger does not exceed 15V the amperage can be any value.
A regular battery charger can be used. There is no limit to the inrush current, so any amount of amps are fine. The voltage cannot exceed 15.2. Deep cycle and AGM are the better settings for odyssey.
Yes, the PC-625 can be mounted in a horizontal orientation.
Yes, a trickle charger is recommended to keep your batteries charged while they are not in use.
