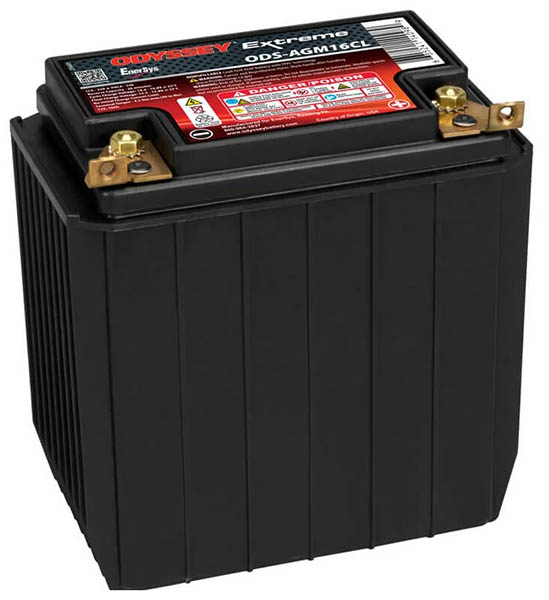

ODYSSEY DRY CELL BATTERY PC625

0 Reviews 6 Answered Questions
$140.99/Each
Add to cart for current price
Quantity
Add to Wishlist View More In This Series →
Part# 11-08080
MFR Model# PC625

Overview

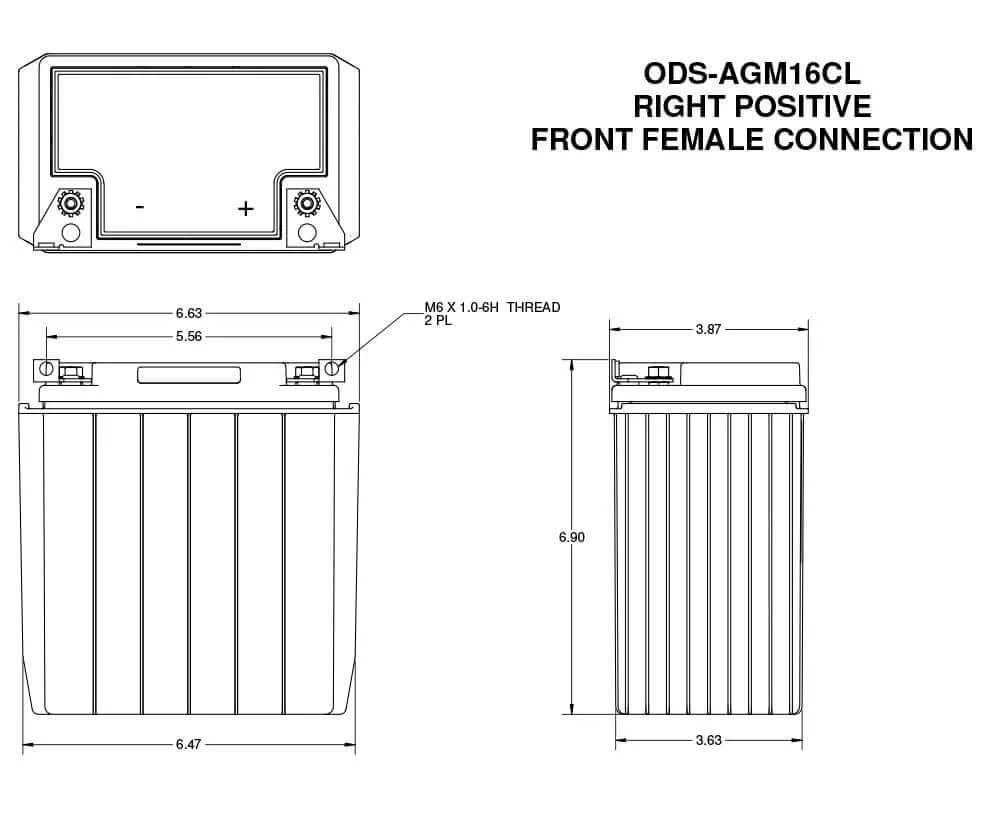

The PC625 measures 6.7" length, 3.90" wide, and 6.89" tall. The battery weighs 13.2 pounds.

  • YB16-CLB replacement
  • 625 cranking amps for 5 seconds
  • 545 cranking amps for 10 seconds
  • 480 cranking amps for 20 seconds
  • Short circuit current over 1800A
  • 27 minute reserve capacity with 25amp load

Model Differences


Odyssey batteries, with an eight year design life saves you time and money because you do not have to replace your battery as often. It is also the only battery that is capable of delivering a large number of deep cycles ­ up to 400 when fully discharged or up to 500 when discharged to 80%. Plus, the battery is specially designed for high vibration applications.

Unlike conventional batteries that need to be recharged every six to twelve weeks, the Odyssey battery will maintain up to 50% state of charge after 2 yrs if stored at room temperature (77ºF). At temperatures lower than 77°F, storage times will be even longer. The cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40ºF. Odyssey batteries may be shipped worry free by UPS/Federal Express or air. 2 Year Warranty
P/N 11-01945 is FAA Approved for PA18/PA19.
Part
Dimensions
PN
The PC625 measures 6.7" length, 3.90" wide, and 6.89" tall. The battery weighs 13.2 pounds.
  • YB16-CLB replacement
  • 625 cranking amps for 5 seconds
  • 545 cranking amps for 10 seconds
  • 480 cranking amps for 20 seconds
  • Short circuit current over 1800A
  • 27 minute reserve capacity with 25amp load
11-08080

The PC545 measures 6 7/8" in length, 3-3/16" wide, and 5 1/8" tall. The PC545 weighs 11.7 pounds.

  • 545 cranking amps
    for 5 seconds
  • 495 cranking amps
    for 10 seconds
  • 420 cranking amps
    for 20 seconds
  • Short circuit current over 1200A
  • 14Ah
  • 18 minute reserve capacity with 25amp load
11-08081

The PC545 MJ measures 7.0" in length, 3 3/8" wide, and 5 1/8" tall. The PC545 MJ weighs 12.6 pounds.

  • 545 cranking amps
    for 5 seconds
  • 495 cranking amps
    for 10 seconds
  • 420 cranking amps for 20 seconds
  • Short circuit current over 1200A
  • 14Ah
  • 18 minute reserve capacity with 25amp load
11-08082

General use engine start, no metal jacket, low temperature applications.

The PC680 measures 7 1/16" in length, 3" wide, and 6 9/16" tall. The PC680 weighs less than 15 pounds.

  • 680 cranking amps for 5 seconds
  • 595 cranking amps for 10 seconds
  • 525 cranking amps for 20 seconds
  • Short circuit current over 1800A
  • 17Ah
  • 25 minute reserve capacity with 25amp load
11-02233
The PC925 measures 6-15/32" in length, 6-78" wide, and 4-7/8" tall. The battery weighs less than 24 pounds.

  • 925 cranking amps for 5 seconds
  • 870 cranking amps for 10 seconds
  • 765 cranking amps for 20 seconds
  • Short circuit current over 2400A
  • 28 amp hours
  • 50 minute reserve capacity with 25amp load
  • Female brass terminal w/M6 SS bolt
11-01651
FAA-PMA certified sealed aircraft battery for Piper models PA18 and PA19 aircraft. It can be used on other makes of aircraft, but will require local FAA field certification

The SBS J-16 measures 7.15" in length, 3" wide, and 6-616" tall. The battery weighs less than 15.4 pounds.
  • 5 second 80°F (27°C) cranking
    amps to 7.2V: 680 amps
  • CCA @ 0°F (-17.8°C): 220 amps
  • CA @ 32°F (0°C): 300 amps
  • HCA @ 80°F (27°C): 370 amps
  • Reserve Capacity: 25 minutes @25amps
  • Terminals: Brass female for M6 stainless steel bolt
  • Terminal Torque: 50 in-lb
11-01945

Specifications

MODEL Volt PHCA**
5 sec		 CCA* HCA MCA Nominal Capacity Res
Cap
Min.		 Length
In.
(mm)		 Width
In.
(mm)		 Height
In.
(mm)		 Weight
lbs
(kg)		 Terminal Torque
Spec
lbs
(max)		 Internal
Res
(mΩ)		 Short
Circuit
Current
20HrAh 10HrAh

PC310		 12 310 100 200 155 8 7 9 5.43
(138.0)		 3.39
(86.0)		 3.98
(101.0)		 5.9
(2.7)		 M4 - Receptacle 8.9
(1.0)		 27.1 455A

PC370		 12 425 200 315 270 15 14 25 7.9
(200.0)		 3.0
(77.0)		 5.5
(140.0)		 12.5
(5.7)		 M6 Stud 35
(3.9)		 13.5 891A

PC535		 12 535 200 300 265 14 13 21 6.70
(170.2)		 3.90
(99.1)		 6.24
(158.5)		 12.0
(5.4)		 M6 - Receptacle 40
(4.5)		 8 1000A

PC545		 12 460 150 280 220 13 12 18 7.00
(177.8)		 3.38
(85.9)		 5.17
(131.3)		 11.4
(5.2)		 M6 - Receptacle 50
(5.6)		 10 1200A

PC625		 12 540 220 420 340 18 17 26 6.70
(170.2)		 3.90
(99.1)		 6.95
(176.5)		 13.2
(6.0)		 M6 - Receptacle 40
(4.5)		 7 1800A
PC680 12 520 170 350 280 16 16 24 7.27
(184.7)		 3.11
(79.0)		 7.55
(191.8)		 15.4
(7.0)		 M6 - Receptacle† or SAE 3/8” Receptacle 50
(5.6)		 7 1800A

PC925		 12 900 330 610 480 28 27 48 6.64
(168.7)		 7.05
(179.1)		 5.83
(148.1)		 26.0
(11.8)		 M6 - Receptacle† or SAE 3/8” Receptacle 60
(6.8)		 5 2400A

PC950		 12 950 400 600 500 34 32 60 9.8
(250.0)		 3.8
(97.0)		 6.1
(156.0)		 20.0
(9.0)		 M6 Stud 35
(3.9)		 7.1 1700A

PC1100		 12 1100 500 800 650 45 43 87 9.8
(250.0)		 3.8
(97.0)		 8.1
(206.0)		 27.5
(12.5)		 M6 Stud 35
(3.9)		 5.1 2450A

PC1200		 12 1200 540 860 725 42 40 78 7.87
(199.9)		 6.66
(169.2)		 7.60
(193.0)		 38.2
(17.4)		 M6 - Receptacle† or SAE 3/8” Receptacle 60
(6.8)		 4.5 2600A

PC1220		 12 1220 680 960 860 70 64.8 135 10.94
(278.0)		 6.88
(175.0)		 7.48
(190.0)		 45.6
(20.7)		 DIN Lead Post N/A 5.7 2200A

75-PC1230		 12 1230 760 1050 815 55 50 110 9.46
(240.3)		 7.08
(179.8)		 7.22
(183.4)		 45.5
(20.6)		 SIDE 3/8” Receptacle 60
(6.8)		 2.5 3100A

75/86-PC1230		 12 1230 760 1050 815 55 50 100 9.46
(240.3)		 7.08
(179.8)		 7.92
(201.2)		 45.5
(20.6)		 Top SAE SIDE 3/8”
Receptacle		 60
(6.8)		 2.5 3100A

PC1350		 12 1350 850 1080 960 95 88.5 195 13.90
(353.0)		 6.88
(175.0)		 7.48
(190.0)		 60.4
(27.4)		 DIN Lead Post N/A 4.2 2900A

25-PC1400		 12 1400 850 1150 950 65 55 130 9.46
(240.3)		 6.84
(173.7)		 8.69
(220.7)		 50.0
(22.7)		 SAE 60
(6.8)		 2.5 3100A

35-PC1400		 12 1400 850 1150 950 65 55 130 9.46
(240.3)		 6.84
(173.7)		 8.69
(220.7)		 50.0
(22.7)		 SAE 60
(6.8)		 2.5 3100A

34-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 6.76
(171.7)		 7.88
(200.2)		 49.5
(22.4)		 SAE 60
(6.8)		 2.5 3100A

34R-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 6.76
(171.7)		 7.88
(200.2)		 49.5
(22.4)		 SAE, Positive Right Terminal 60
(6.8)		 2.5 3100A

34M-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 6.76
(171.7)		 7.95
(201.9)		 49.5
(22.4)		 SAE - and 3/8” Stud (Pos.)
5/16” Stud (Neg.)		 60
(6.8)		 2.5 3100A

34/78-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 7.08
(179.8)		 7.88
(200.2)		 49.5
(22.4)		 TOP SAE SIDE 3/8”
Receptacle		 60
(6.8)		 2.5 3100A

78-PC1500		 12 1500 850 1250 1050 68 62 135 10.85
(275.6)		 7.08
(179.8)		 7.34
(186.4)		 49.5
(22.4)		 SIDE 3/8” Receptacle 60
(6.8)		 2.5 3100A

PC1700		 12 1550 810 1325 1175 68 65 142 13.03
(331.0)		 6.63
(168.4)		 7.78
(197.6)		 60.9
(27.6)		 M6 Receptacle† or SAE 3/8”
Receptacle		 60
(6.8)		 3.5 3500A

65-PC1750		 12 1750 950 1350 1070 74 65 145 11.83
(300.5)		 7.20
(182.9)		 7.50
(190.5)		 58.0
(26.3)		 SAE 60
(6.8)		 2.0 5000A

PC1800-FT		 12 1800 1300 1600 1450 214 190 475 22.75
(577.9)		 4.9
(125.0)		 12.44
(316.0)		 132.3
(60.0)		 3/8" Stud 80
(9.0)		 3.3 3800A

31-PC2150		 12 2150 1150 1545 1370 100 92 205 13.06
(331.7)		 6.89
(175.0)		 9.59
(243.6)		 77.8
(35.3)		 3/8" Stud
or SAE		 150-220
(16.9-22.6)		 2.2 5000A

31M-PC2150		 12 2150 1150 1545 1370 100 92 205 13.00
(330.2)		 6.80
(172.7)		 9.39
(238.5)		 77.8
(35.3)		 SAE - and 3/8” Stud (Pos.)
5/16” Stud (Neg.)		 150-220
(16.9-
22.6)		 2.2 5000A

PC2250		 12 2250 1225 1730 1550 126 114 240 11.26
(286.0)		 10.59
(269.0)		 9.17
(233.0)		 86.0
(39.0)
SAE Terminal and 3/8" Stud 		100
(11.0)
for 3/8"
Stud Only		 2.1 5000A
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Submit a Review

Q&A

Submit
Q: Is it possible to install the Odyssey Dry Cell Battery flat?

Per the manufacturer, it is fine to install the Odyssey dry cell battery PC625 in any direction except inverted upside-down.

Q: Is this PC625 Odyssey battery TSO'd for installation in certified aircraft?

Per the supplier: No, this battery is not FAA Approved.

Q: Do you sell a battery box/hold down box for the PC625? I want to install in my RV7

Unfortunately we do not have a supplier for a box or battery rack for this model battery.

Q: Is there a HOLD DOWN BRACKET FOR ODYSSEY PC 625?

There is no hold down bracket for this battery.

Q: What battery charger is recommended for this Odyssey PC625 battery?

Odyssey does not have a specific charger they recommend but if the battery is discharged the charger would need to be 6 amps or higher.

Q: Can I use this battery in my experimental aircraft and charge it thru my alternator, just like a lead-acid battery?

Yes, it will work with a normal alternator.
