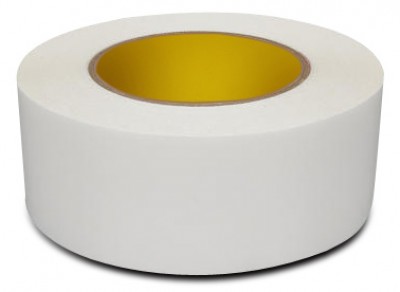

UHMW Polypropylene Tape 3 Inch

Add to Wishlist
Part# 09-02561
MFR Model# 76445A715


Provides a nonstick, low-friction surface similar to PTFE (polytetrafluoroethylene) tape but with higher abrasion and impact resistance. Ideal for chutes, packaging lines, slides, and anywhere high-pressure sliding contact occurs. Also eliminates squeaks and rattles caused by adjacent parts movement. Tape has a UHMW (ultra-high molecular weight) polyethylene film and 0.0015" of acrylic adhesive. 0.0045" thick tape has a temperature range of 40 to +225 F and includes a peel-off polyethylene liner. 18 Yard roll (54 ft.)

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


I used this tape to replace an earlier wear tape that I had originally installed on the leading edge of the flaps where it rubs on the wing skin overhang on my RV6-A. It is thinner than the previous material that I replaced because of sun damage. It goes on very clear and smooth, seems to have excellent adhesion. I also used a thin strip under the wing skin overhang so it will only have poly to poly contact as the flaps move. I do not know how it will hold up to the suns UV so I will retract flaps when parked out at airshows. Hangar neighbor is getting some from me to use on intersection fairings on Mustang Two.

Mark B
June 3, 2017

Generally unacceptable for AC usage- Isnt Transparent, but actually a pale yellow- VERY THIN, while it may be slippery, it isnt THICK by any means- EXTREMELY hard to separate from its backing during installation, and if you even breath hard the inside tacky edge, it will show through. Fingerprints on the inside look like a crime scene. After aprox 20 hours on a cessna 206 strut ( to protect from strut chafe) and tape started separating from tacky lining- Terrible- Never again-

Samair P
August 16, 2019


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What color is this UHMW PolyPropylene tape?

This tape will go on clear. Re: P/N 09-02561
