Whelen 71414 Series LED Inspection Light - 28V

$589.00/Each
Quantity
Add to Wishlist
Part# 11-16938
MFR Model# 01-0771414-00

Overview

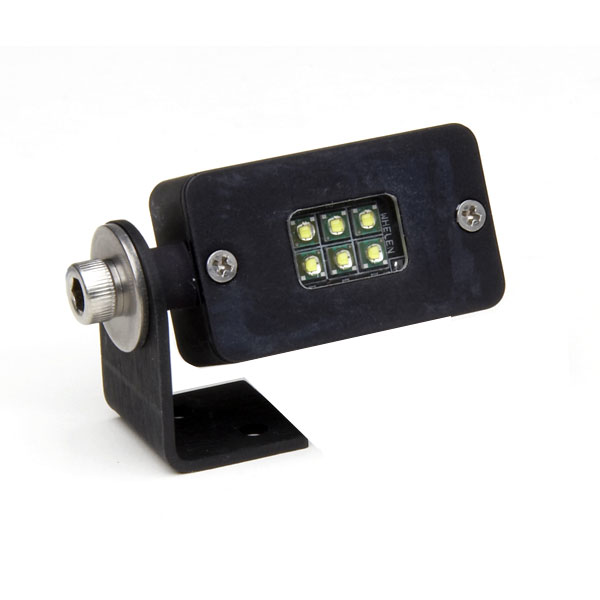

Model 71414 28V is an LED inspection light designed to replace GRIMES A5395-23 on the S76 Helicopter. The product comes standard with a black anodize finish and a clear polycarbonate lense. 71414 also comes with a Bracket and has a hex head locking assembly to hold the light at the desired angle. 71414 produces more (>13) candela than the GRIMES light it replaces,unit comes with 12 flying leads.

California Prop 65 Warning Symbol

WARNING: This product may expose you to chemicals including Lead, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

  • Replaces Grimes A5395-23

Specifications

  • Model # 7141400 01-077414-00 LED Inpection Light (28V)
  • Drawing Number: 71414
  • Weight: 0.08lbs (36.29gm)
  • Length: 2.17(55.12mm)
  • Height: 1.19 (30.23mm)
  • Width: 0.80 (20.32mm)
  • Voltage: 24VDC
  • Viewing Angle: Up to 70Deg
