D B Assembly Apu Power Supply Series P28100/1

Select Version:
Power Supply OnlyPower Supply w/ Piper PlugPower Supply Only (Pilatus P12)Power Supply Only (Eclipse e500)Power Supply (Extra Meter)Power Supply 110V (Extra Meter)
Add to Wishlist

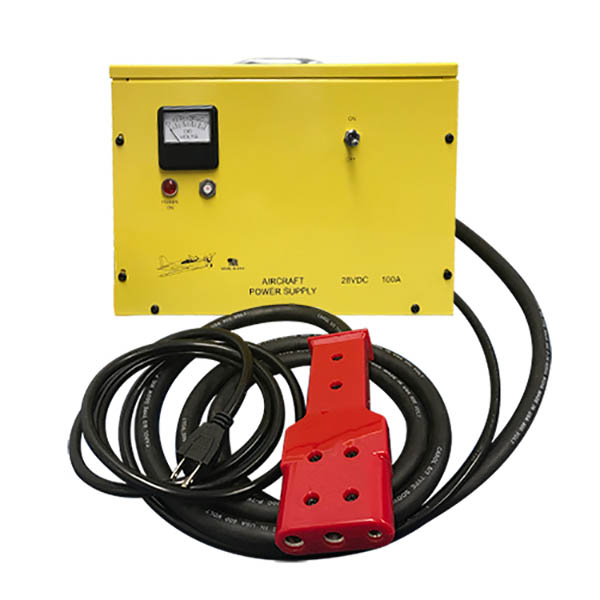

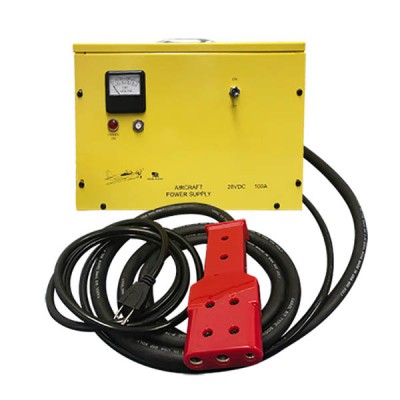

The D B Assembly, Inc. P-28100 series is the latest to join the family of power supplies for commercial aircraft servicing.

This equipment will provide the amps needed for gear retraction tests as well as the filtered power for all types of avionics service.

The P-28100 series will furnish up to 100 amps at 28 VDC. It plugs into the APU connector on the engine cowling and automatically disconnects the battery so that it will not be drained by the servicing processes. A valuable ramp accessory.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


  • 100 amperes filtered 28 volt supply
  • Aircraft APU connectors furnished
  • Operates from P-28100, P-28100PL 110/ 120 / 208 / 220 / 240 VAC, 60 Hz (Leaves the factory at 110 VAC unless other voltage is specified)
  • 8 foot DC cable furnished -- P-28100E from 230 VAC, 50 Hz -- P-28100ECL from 220-230 VAC, 50 Hz
  • Ferro-resonant regulated supply
  • DC current limited
  • Front panel meter, controls
  • Portable, weighs only 64 lb.
  • One year warranty
  • Extensive testing by FBO's
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items



Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the PS-28100PL unit also compatible with Beechcraft and Cessna Aircraft?

Yes, P/N# P-2810011 is compatible with Beechcraft and Cessna aircraft as long as they do not exceed 100 amps.
