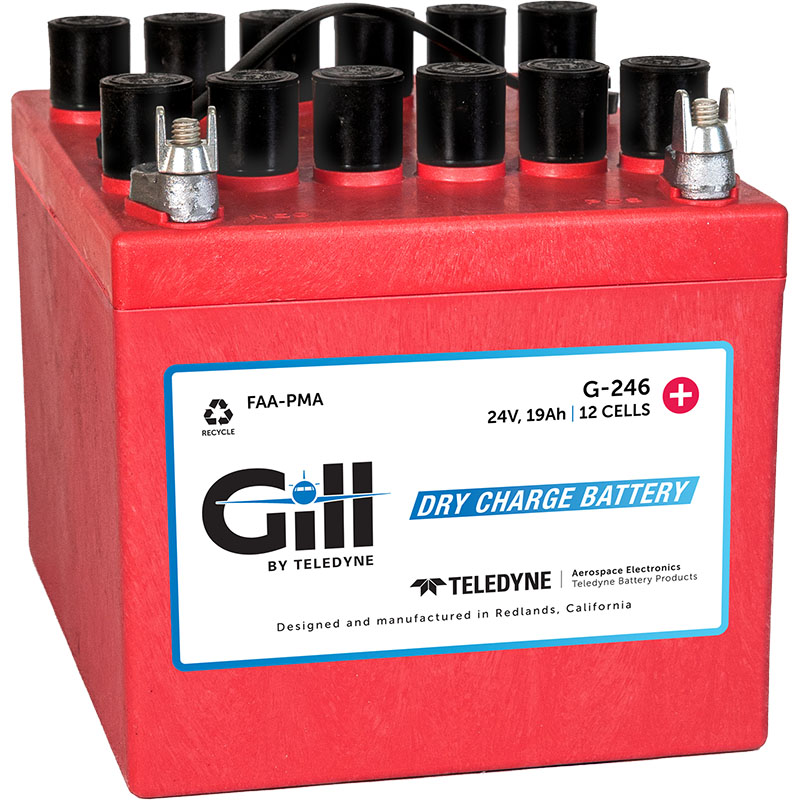

Gill G-246 Battery

Select Model:
with Acidwithout Acid
Quantity
Add to Wishlist

Overview

The Gill Electric Company was founded by Mr. Lawrence Gill in 1920, in Redlands, California, where the factory remains today. At that time, Gill Electric manufactured lead-acid batteries for the automotive industry. During the war years, Gill manufactured batteries for military ground vehicles and aircraft; some of these batteries are still in production today. Gill Electric improved the drycharged process which provides a fresh charged product when the electrolyte is added. Gill has become the OEM "original equipment battery" for Raytheon, Cessna, LearJet, Mooney, Piper, Ayres, Airtractor, Maule, Scheizer and others in the aviation industry and Gill continues to be the industry's choice for quality battery products.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Application Guide

Manufacturer Model PMA SUP. #
Air Tractor AT-300, AT-400 77
Cessna 310R, T310R, 404 77
Piper PA-31, PA-31P, PA-31-300 77

Warranty Info

Warranty Information

Specifications

  • Rate (Amps): 1 hr (C1) 19, 30 min (2C) 32, 60 sec/0 deg F (CCA) 250
    Model Weight Part No.

    G-246
    24 Volt

    With Acid

    41.5 Lbs. (full)
    Electrolyte (4 Qts.)
    11-01661

    G-246
    24 Volt

    W/O Acid

    41.5 Lbs. (full)
    Electrolyte (4 Qts.)
    11-01680

Reviews

EXCELLENT

Bernard K Verified Purchase

Gill Battery Without Acid G-246

October 6, 2022

haven’t used it yet sorry

Sunflower A Verified Purchase

Gill Battery G-246 With Acid

June 30, 2022

Ok

Eliel A Verified Purchase

Gill Battery G-246 With Acid

August 17, 2021

Very good service

Maximo O Verified Purchase

Gill Battery G-246 With Acid

July 24, 2021

I have a Gill G-246 in my Cessna 421B that is now 7 years old (careful attention to servicing fluid level and not abusing). Never used a battery minder on it but fly at least every other week. Has been a great battery (3rd one I have owned in 25 years of ownership of this aircraft. Highly recommended. GSS

Gary S
March 6, 2021

Excellent product, fast -same day shipping

Jim P
January 30, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: what is the total service life of the Gill G - 246 battery

Gill has a 12 month, 12,000 hour warranty on their G-200 series batteries. A claim within the first 6 months or 300 hours is a full warranty, and a claim between the 6 and 12 month period, or 1200 hrs, is a pro rated coverage. Batteries have lasted much longer than the warranty period, but it depends on the recommended maintenance and conditions the battery has during this time.

Q: What is the life time of battery Gill G-246?

There are too many environmental, maintenance, and usage issues to answer this. These have a 2 year warranty, the first 6 months are full replacement and then it is prorated after that.
