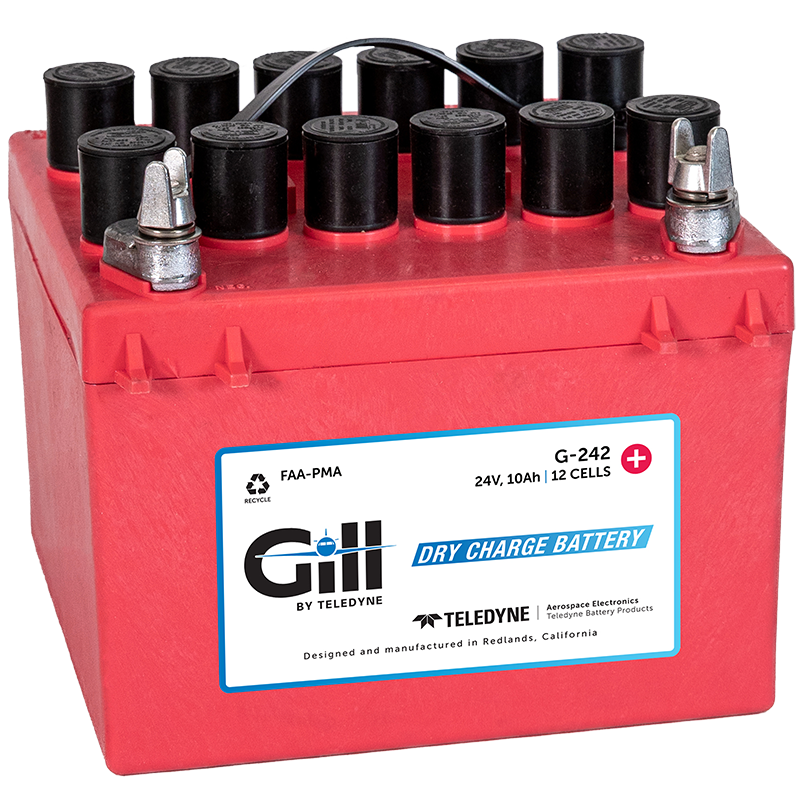

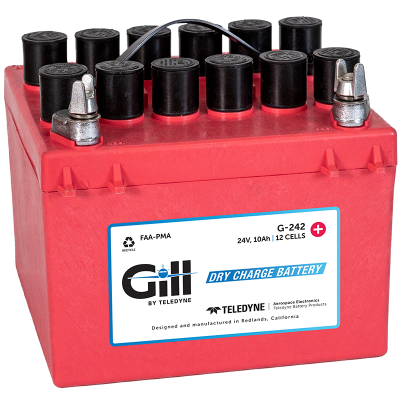

GILL® G-242 BATTERY

Select Model:
with Acidwithout Acid
Quantity
Add to Wishlist

Overview

The Gill Electric Company was founded by Mr. Lawrence Gill in 1920, in Redlands, California, where the factory remains today. At that time, Gill Electric manufactured lead-acid batteries for the automotive industry. During the war years, Gill manufactured batteries for military ground vehicles and aircraft; some of these batteries are still in production today. Gill Electric improved the drycharged process which provides a fresh charged product when the electrolyte is added. Gill has become the OEM "original equipment battery" for Raytheon, Cessna, LearJet, Mooney, Piper, Ayres, Airtractor, Maule, Scheizer and others in the aviation industry and Gill continues to be the industry's choice for quality battery products.

Application Guide

Cessna models: 152, 172, 177, 182, 207, 210, 336, 337 Piper models: PA-23, PA-31, PA-36

Note: The data listed in this chart is intended as a suggested reference guide only. Some installations may vary and require airframe or battery box modification. Installations not shown on D.O.T. FAA/PMA listings will require field approval using FAA form 337 or FAA approved STC.

Warranty Info

Warranty Information

Specifications

  • Rate (Amps): 1 hr (C1) 8, 30 min (2C) 13, 60 sec/0 deg F (CCA) 106
    Model Weight Part No.

    G-242
    24 Volt
    With Acid

    27 Lbs. (full)
    Electrolyte (3 Qts.)
    11-01657

    G-242
    24 Volt

    W/O Acid

    27 Lbs. (full)
    Electrolyte (3 Qts.)
    11-01675
  • Customers Also Viewed
  • Frequently Purchased With
  • Accessories

Reviews

Shipping was fast, and it fits like it was built for the box. I know, the box was built for it, but Im reviewing the battery! Easy to add the acid, only a couple spills.started the 152 right up, no problems there. I am hoping this battery will last longer than my last Gill. The review lost a star for historically short life on this product.

Cris A
August 4, 2019

Didnt even last a year....unfortunately it is the approved one

Sushil P
June 11, 2019

I have had my Mooney 252TSE for 13 years and have gone through only 2 batteries (G-242) in that time. After 13 years I am now buying a third one. The previous one I bought and installed 4/2012. That’s 6 1/2 years of regular usage. In the past year I haven’t flown much and had to charge it a couple of times before a flight but overall I’m happy with the performance. I wish they weren’t so expensive though. Kind of crazy beings a car battery is 1/5 the cost.

Jon Y
November 18, 2018

In our 185 and lasted 6 or 7 years. Not happy about the huge pricetag, but other companies charge the same

Williams C
July 22, 2018

I own a Cessna 337B with this battery since June 2016. Lasted one and a half years only. Another owner of similar aircraft has had same battery for four years Cheaper battery that doesnt last is the general opinion. Guess it depends on your luck. Bought a Concorde so I dont have to guess in the future.

Tim
April 11, 2018

Lasted one year then let me down twice. Done with it false economy to buy this rather than the concorde one. Not happy.

Richard B
March 21, 2018

Ive been getting 8 years on these batteries! Ive owned my Cessna 185F for 25 years and just now need my third battery! The tech folks at Gill tell me I need to upgrade to the 7242-14 which is sealed and more reserve life. That is nice, but its $150 more, so Im torn which way to go this time. I suspect those experiencing short battery lives arent taking care when they do their initial charge to bring them up very slowly. As advised by a Gill engineer, youll want to initial charge at only 2AMPS! This instant gratification mentality is killing their investment. If youre leaving it up to the mechanic, remember, he makes more money by doing a rush job. Also, clean your battery top before servicing, and then only service with distilled water & do your charge top off out side of the airplane!

Greg Y
February 19, 2018

Our experience has been much better than previous reviewers. We have run 242s in Cessna 185s and get usually better than 5 years of service. I just pulled one out with over 6 years on it because the ground post became loose, but we definitely got our money out of it.

Ken
February 9, 2018

I had the same experience as the last person with this battery. Mine lasted a year and a half just out of warranty and the post that comes of the battery fell off rendering the battery useless. There goes $460 I think I will buy the Concorde one this time.

J.c.
November 5, 2017

Had my IA install this battery and it only lasted 7 months. I took to back to the factory and they advised that the battery failed the test and they would replace it. So, I went and did what they told me to do and bought another Gill 242 battery. They were said they would refund my money. THEY PRO-RATED the battery!!! SO, they only expect this battery to last one year and thats it!! No replacement!! Just pro-rated for what was left of the year!! Stay away!! This is either a bad company or have very bad communication.

Harold M
April 22, 2017

Q&A

Q: Does the model with acid come with the acid already poured or on the side?

The model with acid will come with a dry battery (11-01675) and 3 qts of acid (11-00305) on the side.

Q: What is the capacity (A/H) for Gill G-242 battery?

Per the supplier: 10 amp/hour.

Q: What are the combined voltages for the cells?

24V 10 AMP.

Q: Are the Gill batteries with acid included shippable by air?

Yes, but only 1 qt per box and it is expensive.
