Whelen Orion™ 650E Series Lighting

From $535.00 to $535.00
Model Num. Description Approvals Part Number Price Buy
OR6501GEEmbedded PTA Green, 12VFAA TSO-C96a Class II/TSO-C30c Type II & III
11-11971
$535.00 Add to cart for current price
Quantity
OR6501REEmbedded PTA Red, 12VFAA TSO-C96a Class II/TSO-C30c Type I & III
11-11972
$535.00 Add to cart for current price
Quantity
OR6502GEEmbedded PTA Green, 28VFAA TSO-C96a Class II/TSO-C30c Type II & III
11-11973
$535.00 Add to cart for current price
Quantity
OR6502REEmbedded PTA Red, 28VFAA TSO-C96a Class II/TSO-C30c Type I & III
11-11974
$535.00 Add to cart for current price
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Whelen Engineering is proud to introduce the ORION650E Series of FAA/TSO approved LED aviation lighting. Incorporating the latest state-of-the-art LED Technology available in an all-inclusive package, the ORION650E series eliminates the need for external flasher boxes. Flush mountable for a wide variety of applications with minimal integration and easily retrofit-able to the Whelen legacy strobe products. The ORION650E series is quite simply the brightest form of LED Anti-collision and Position lighting available.

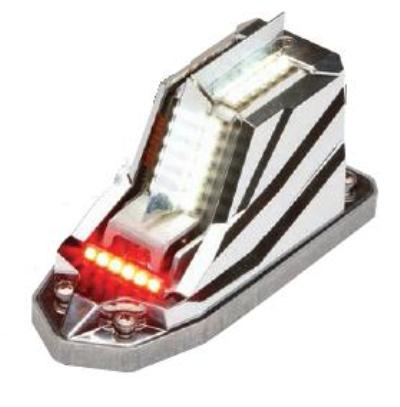

ORION™ 650E Position/Anti-Collision Light-head:
All LED self-contained wingtip mounted Position/Anti-Collision system. Eliminates the need for external power supplies and reduces current draw and provides thousands of hours of operation.
  • Fully FAA/TSO-C96a & TSO-C30c Approved
  • FAR SPEC Certified
  • STC SA800EA
  • Exceeds FAA minimum intensity requirements for maximum visibility and increased safety of flight
  • Environmentally tested and certified to RTCA/D0-160G standards

California Prop 65 Warning Symbol

WARNING: This product may expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Drawing Number: 90701
  • Weight: .27 lbs (122gm)
  • Current Draw (12V/28V): 0.30/0.15 Amp (Position), 0.70/0/35 Amp (Anti-Collision)
  • Position LED Colors: Red (left) and Green (right)
  • Anti-Collision LED Color: Aviation White
  • Lenses: N/A

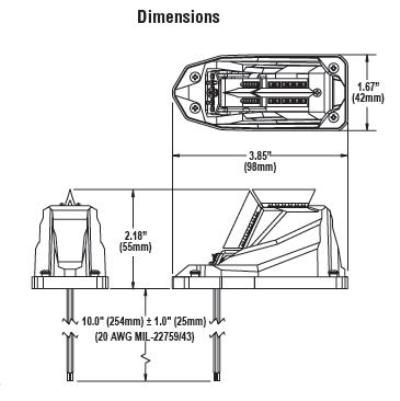

  • Dimensions (H x W x L): See Dimension Drawing Above.

Drawing

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Mario N Verified Purchase

WHELEN ORION 6501GE 12V EMBEDDED PTA GREEN

December 19, 2023

Mario N Verified Purchase

WHELEN ORION 6501RE 12V EMBEDDED PTA RED

December 19, 2023

Hill C Verified Purchase

WHELEN ORION 6501GE 12V EMBEDDED PTA GREEN

November 9, 2023

Very bright, great finish, well built product by Whelen!

Spencer A Verified Purchase

WHELEN ORION 6501GE 12V EMBEDDED PTA GREEN

December 8, 2022

Very bright, great finish, well built product by Whelen!

Spencer A Verified Purchase

WHELEN ORION 6501RE 12V EMBEDDED PTA RED

December 8, 2022

Far superior than factory strobes on my 1997 M20J

Glen A Verified Purchase

WHELEN ORION 6502GE 28V EMBEDDED PTA GREEN

April 3, 2022

Far superior than factory strobes on my 1997 M20J

Glen A Verified Purchase

WHELEN ORION 6502RE 28V EMBEDDED PTA RED

April 3, 2022

I purchased the L and R combined Nav and Strobe lights to compliment the combined Tail and Strobe light already installed. The units are very lightweight and straight forward to install. The quality of the Orion series of lights seems excellent.

Kenneth C Verified Purchase

WHELEN ORION 6502GE 28V EMBEDDED PTA GREEN

January 21, 2022

As advertised. Much brighter than old factory nav lights.

Brad D Verified Purchase

WHELEN ORION 6501GE 12V EMBEDDED PTA GREEN

November 12, 2021

Bought this one before form you guys. Worked great, but I had a little incident so had to replace it.

Charles M
April 26, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: When will the whelen orion 650 be availabl to ship?

Q: Can you confirm that the Whelen OR6502GE and OR6502RE combined with the OR5002V LED position/strobes do NOT require a power supply? Which Whelen cable/wire installation kit do you recommend with these three items?

Per the supplier: the mentioned assemblies do not require any external power supply as they are self contained. Also, the Whelen cable kits that we sell would not work for these lights as they are 16 gauge shielded wires. These assemblies are DC current and require no shielding as well as smaller gauge wire. We would recommend that they get standard aircraft cable which does not need to be shielded.

Q: I know you can sync the OR6502GE and ORG502RE together. My question is can you sync the OR5002V with the other Nav/Strobes so that all the strobes pulse at the same time?

Yes, all Orion series lights have a sync wire attached. Simply attach all sync wires together and they will all flash at the same time.

Q: Regarding the Whelen Orion 650E Series lighting: What is the lighting arrangement of this unit? I understand the red/geen position lights are constant but do ALL remaining LEDs flash or do some stay on steady while some flash?

All white LED's flash, the only steady burning ones are the red/green.

Q: Are the Whelen Orion 650E lights sold as a set or sold separately?

These lights are priced and sold separately.

Q: What gauge wire do these have for the 4 leads coming off the OR6501GE?

Per the manufacturer, these will use 20 awg wire.

Q: Can the Whelen Orion 650E strobe be wired on a separate off/on switch?

Yes, the strobe can be wired on separate switch as each wire has separate power.

Q: I have the Whelen Model A610 lights. If i changed them out to the new 650E series would I have to change the wiring? And would they mount the same?

The footprint would be the same but the wiring would need to be changed. The 650E does not require the power supply that the 610 strobe needed so you would have remove it or wire around it.

Q: The white strobe appears to shine forward and side only. Do you have to have a tail strobe also to meet the visibility specs?

Yes we offer led taillights. Customers commonly pair these wingtips with the OR5001V / OR5002V tail.

Q: I have the Whelen A610 lights now. Will these lights work with current wiring or will new wiring be needed?

They would need to be rewired bypassing the power supply.
