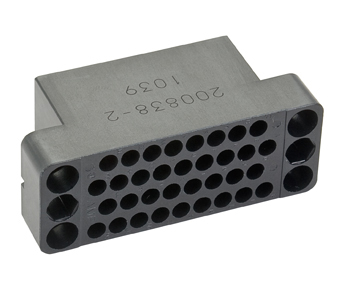

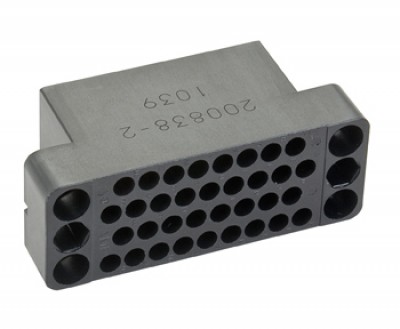

Grounding blocks are ideally suited for aircraft applications, where wire is to be grounded to an airframe. The ground wires are crimped to size 16 socket contacts. The contacts are loaded into a standard 6,14 or 34 position connector housing. The connector then can be mated to the grounding block which is fastened to the aircraft frame.
Click Here for 34 pin grounding block.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No hardware is included. It is the receptacle only.
There is no backshell for this receptacle.
