Part No. | Style | Tab Width | AWG | Tab Thk. | Price Each | Buy |
---|---|---|---|---|---|---|
640903-1 | B | 0.250 | 22-18 | .032 | $0.36 | |
640905-1 | B | 0.250 | 16-14 | .032 | $0.38 | |
42844-1 | B | 0.250 | 14-12 | .032 | $0.95 | |
640907-1 | B | 0.250 | 12-10 | .032 | $0.55 | |
640909-1 | B | 0.205 | 22-18 | .020 | $0.38 | |
640911-1 | B | 0.205 | 22-18 | .032 | $0.55 | |
640913-1 | B | 0.205 | 16-14 | .020 | $0.49 | |
640915-1 | B | 0.205 | 16-14 | .032 | $0.35 | |
640917-1 | B | 0.187 | 22-18 | .020 | $0.38 | |
640919-1 | B | 0.187 | 16-14 | .020 | $0.34 | |
61048-1 | B | 0.110 | 22-18 | .016 | $0.58 | |
61060-1 | B | 0.110 | 22-18 | .020 | $0.30 | |
60894-1 | B | 0.110 | 22-18 | .032 | $0.37 | |
640923-1 | A | 0.110 | 22-18 | .020 | $0.42 | |
640925-1 | A | 0.110 | 22-18 | .032 | $0.30 | |
640929-1 | A | 0.110 | 16-14 | .020 | $0.37 | |
66023-2 | - | - | 22-16 | - | $1.09 |

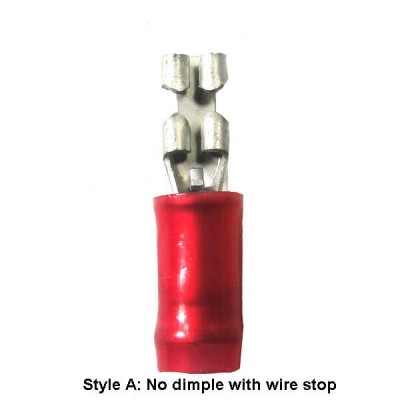

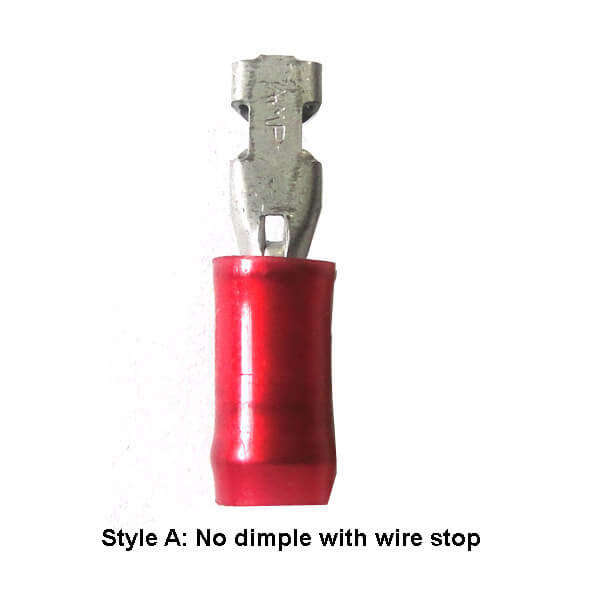

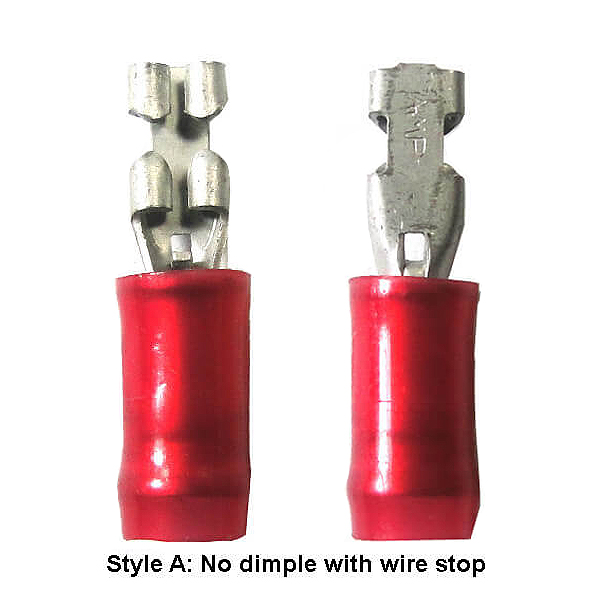

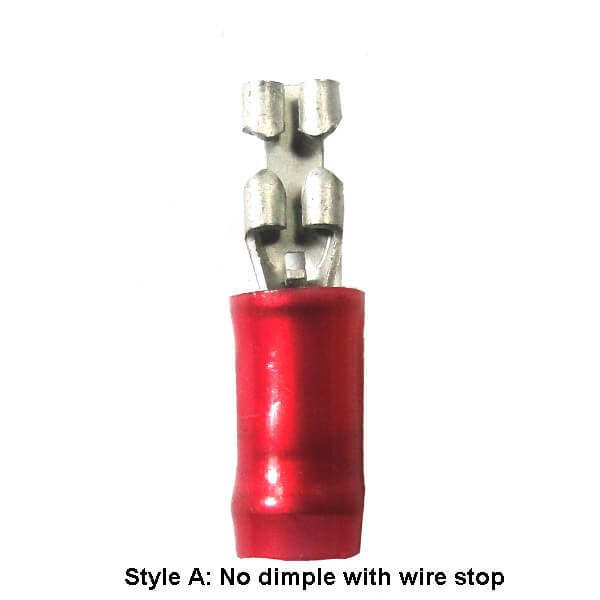

*Style A: Has no dimple with wire stop.

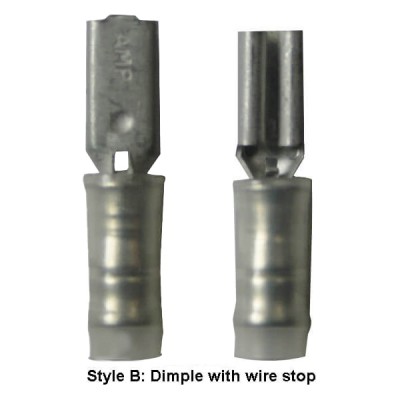

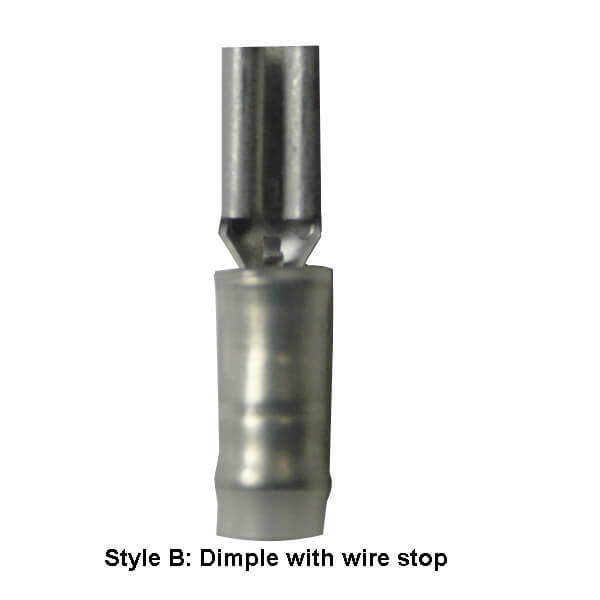

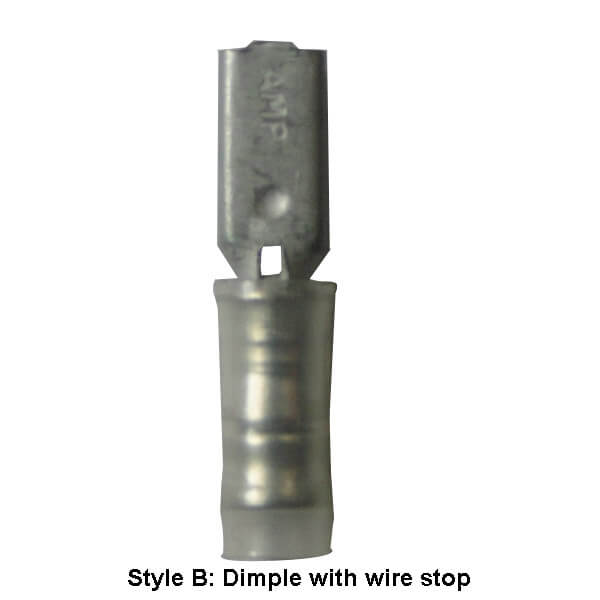

**Style B: Has small dimple on the backing with wire stop. |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Great product. Well recommended
TE Connector 640905-1 PIDG Faston Tabs
They are what I wanted, yet the photo does not match 1/4” tab
TE Connector 640903-1 PIDG Faston Tabs
This item will make one particular job very easy in the future.
61048-1 PIDG Faston Tabs
Best part for the job Aircraft Quality
TE Connector 640903-1 PIDG Faston Tabs
TE Connector 640923-1 PIDG Faston Tabs
TE Connector 640925-1 PIDG Faston Tabs
always good products and good delivery from A/C Spruce
TE Connector 640905-1 PIDG Faston Tabs
always good products and good delivery from A/C Spruce
TE Connector 640903-1 PIDG Faston Tabs
I like using blade connectors whenever possible. 👍🏽
TE Connector 640903-1 PIDG Faston Tabs
Not crazy about this type of faston. Hard to get on bends easily. In the future, I would get the non segmented faston
61060-1 PIDG Faston Tabs
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The male end is attached to older electronic units. We recommend using ring terminals for modern avionics.
The dimple would make the connection a little more secure. It puts a little pressure on the tab when the two ends are put together.
tab width: .250 | tab thickness: .032
