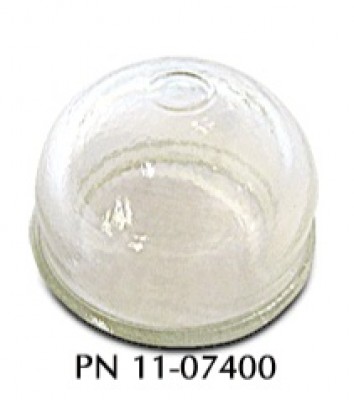

|Lens for Model S Tail Light|
This lens is a Perfect fit!
WHELEN WA45131 CLEAR GLASS LEN
A little pricey for a pyrex bulb, but this is the one you need. Dont try to get the plastic imitation because it wont fit.
I was on-line having trouble identifying the correct part that I needed - tail nav light lens for my 1956 Cessna 172. So I called in and got a very helpful young lady on the phone who led me to this part number. I wish I could remember her name. Arrived in a couple of days. It is a perfect fit and about half the price of a local FBO.
This is the tail light lens for my 78 M20J. Also fits the strobe lens on wing which I could not find by its correct number. I am using to replace strobe lens.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Diameter is approximately 1-9/16". Height is approximately 1-1/4". Approximate thickness at the bottom is 3/16".
The retainer is part of the light assembly and not sold separately.
Yes, please see our part # 11-02755 for the green lens.
Whelen does not make a replacement gasket but this would use a standard Grimes A2364 gasket.
