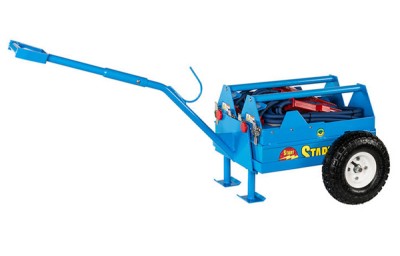

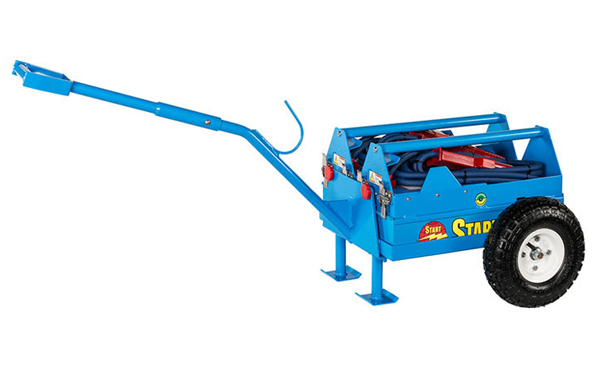

Start Pac Li2700Qc Starting Unit Twin Pac

$9158.00/Each
Quantity
Add to Wishlist
Part# 11-14749
MFR Model# LI2700QC TWIN PAC

Overview

This powerful Lithium Ion starting unit is a full 26VDC portable battery pack and will provide superior starts on all electrically-started turbine engines. This versatile Twin Pac can be used as a single unit or separated for two complete Lithium units that can be easily carried on board. It has redundant chargers with a total of 18 amps output and a recharge time of approximately four hours.

The engineers at Start Pac specifically designed the Li2700QC as an airplane starting unit with voltage protection relays that are set lower than most aircraft so that they cannot accept more than 29.5 volts from an external starting source. Some of these aircraft include the Agusta Westland AW139, Sikorsky S-76, Eclipse 500, Phenom 100 and Phenom 300.

This unit is designed for engine starting only.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

    The Start PacŪ Model Li2700 QC Twin Pac utilizes the latest technology in Lithium batteries. These batteries provide the same power as the lead-acid type but are 42% lighter and 32% smaller. In addition, lithium batteries have two other major advantages:

    1. Twice the battery life of lead-acid batteries
    2. No sulfation problems (can be left in a discharged state without causing damage)

    PLEASE NOTE:Lithium ion batteries can be damaged by deep discharges. Do not run the batteries down below 22 volts, a spike during a start is okay. Voltages below 22 begin the damage to the batteries. At 20 volts, the batteries will be damaged beyond repair.

Specifications

  • 31 AMP hours @ 10 Hour Rate
  • 62 AMPS Peak Current
  • 2400 AMPS Peak Current
  • L 38.4″ x W 7.5″ x H 9.75″/ L 98cm x W19cm x H29cm
  • 120 lbs./ 55 kilos Complete with Twin Pac trolley
  • Not to be used as an aircraft battery charger.
Note: When storing the Start PacŪ for more than 30 days, remove the battery box from the charging unit and store separately.
  • Accessories
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is start pac Li2700Qc categorized as dangerous goods by UN3480?

Yes, this is considered DG with code UN3480.
