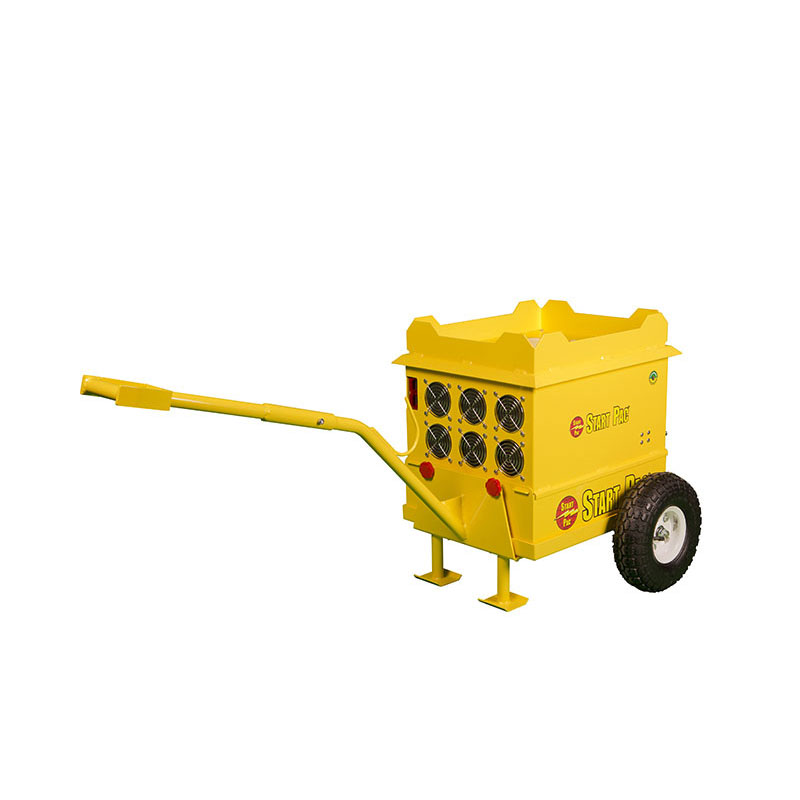

START PAC QUICK BATTERY CHANGE GROUND POWER UNIT 28 VOLTS - 3328QC

Select Amp:
50 amp105 amp200 amp300 amp400 amp
Quantity
Add to Wishlist

Overview

The 3328QC is a full 28.5 Volt starting unit that will give faster, cooler starts on all turbine engines. The power supply is large enough to power various systems such as inverters, avionics and GPS. Always recharge immediately after use until the green charger light appears to achieve maximum battery life. Once charged, leave the unit plugged in. Avoid fully discharging the batteries as damage to the cells may result.

To recharge the unit, simply plug it into an AC wall power outlet and leave it plugged in when not in use. The high tech proprietary chargers will maintain 100% battery charge without over charging the batteries. Built with the only cost effective patented Quick Change design in the world, the batteries in this unit can be easily changed in a matter of seconds without tools, training, or downtime. The environmentally responsible low VOC powder coating protect the case from wear and poor weather conditions and all-weather cover accessory is also available as an option for this unit to further protect it from inclement weather to gain the maximum performance and product life.

Specifications

Batteries
  • 26 - 52 Amp hours @ a 10 Amp rate
  • 28.5 Volt DC; 30.5 Volts at rest
  • Sealed cells non-hazardous
  • Valve regulated high amperage output lead acid
  • 2800 - 3200 Amps peak current
Power supply/charger
  • AC Input: 110 Volts OR 220 Volts (specify)
  • 50 Amps DC continuous output @ 28.5 V
  • Battery recharge time: 6 hours
L 38” x W 21” x H 20”/ 97cm x 53cm x 51cm
Handle height: 48”/ 122cm
241 Lbs./ 109.31 Kilos complete
