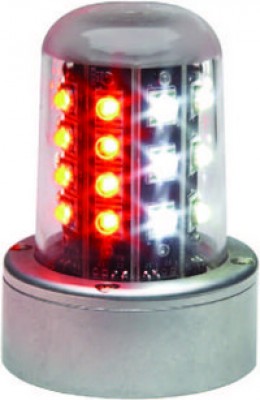

Whelen LED Flashing Beacon Red & White 90520 Series

From $698.00 to $803.00
Mfg Model# Description Part Number Price Buy
9052001LED red/white, 28 VDC & mount
11-07615
$733.00 Add to cart for current price
Quantity
9052051LED red/white, 14 VDC & mount
11-07616
$799.00 Add to cart for current price
Quantity
9052004LED red/white, 28 VDC & 5 hole mount
11-07617
$722.70
Quantity
9052014LED red/white, 28 VDC & 5 hole lower mount
11-07618
$722.70
Quantity
9052005LED red/white, 28 VDC, 3.75" adapter
11-07619
$715.50
Quantity
9052055LED red/white, 14 VDC, 3.75" adapter
11-09908
$715.50
Quantity
9052015LED red/white, 28 VDC, 3.75" adapter, lower mount
11-07620
$715.50
Quantity
9052007LED red/white, 28 VDC, 3.75" adapter
11-07621
$722.70
Quantity
9052017LED red/white, 28 VDC, 3.75 adapter, lower mount
11-07622
$722.70
Quantity
9052008LED red/white, 28 VDC, 5 hole mount
11-07623
$722.70
Quantity
9052018LED red/white, 28 VDC, 5 hole lower mount
11-07624
$628.20
Quantity
Subtotal $0.00
Add to Wishlist

Overview

90520 series LED beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class I - 100 effective candlepower). They are designed to replace strobe lightheads as small as the A470A with available models to replace HR self-contained beacons (HRCFA) or our legacy 70900 LED beacon. Mounting plate included with select assemblies. Refer to models and descriptions below.

ELECTRICAL:
Models: -01, -04, -05, -14, -15-51, -55: Ship with 12” Flying Leads Models: -07, -17, -08, -18: MS3102R10SL-3P Connector

MECHANICAL:
Models: -04, -14, -08, -18 are designed to replace existing beacons utilizing a 5 Hole mounting pattern on 4.656 diameter bolt circle (Whelen 70285 series / 7090501 series or 70900 with A440 adapter). Models: -05, -15, -07, -17 are 3 ¾” opening designed to fit inside an A440 mounting adapter, mounting holes to fit in place of rotating beacons, Whelen model HRCFA, or 7090004, -05 series LED beacons.


California Prop 65 Warning Symbol

WARNING: This product may expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Current: 0.67 amps Average,
  • 3.0 amps Peak
  • Weight: 0.65 lbs. (295gm)
  • (-01 & -51)
  • Lens: Clear polycarbonate
  • Dimensions: 2.6” (66mm) Diameter, Exposed Height, 3.74” (95mm)
  • (-01 & 51)
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

This thing is expensive, but its BRIGHT. I lost the lens on our old one and decided to spend the extra money to upgrade. Money well spent. Can put a price on being the MOST visible.

John B Verified Purchase

Whelen 9052051 Red/White 14VDC

November 26, 2024

I purchased to replace a broken Whelen Legacy Strobe. My strobe was a split White/Red and I figured it would be a simple install. While the replacement was easy, a few things popped up that were surpising. First, the depth of the light was lower than my old light. I need to add a decent silicone bead to seal the gap between the fin cap and the light. Second, the screw holes that were already in the fin cap did not allow for the perfect alignement of the White/Red split. There is no adjustment to get this aligned perfectly, but it was close enough for now. Third, and most important, I was under the impression that there was no STC and therefore a pilot can replace without IA sign-off and 337. After I received the light I went to Whelen website and found that they had an STC issued for most airframes in 2019. One can argue the regs from there, but it would have been nice to know that there was an STC. Lastly, propbably should have gotten the Orion 360, the light is smaller and seems to use a better lens that disperses the light better.

Mike Z
September 12, 2024

Well, worth the investment. A lot brighter than my strobe that I had before. And with less noise in my headset, highly recommended

Joe S Verified Purchase

Whelen LED Red/White Beacon 14V 9052055

July 16, 2024

excellent replacement, easy replacement, total satisfaction

Dean B Verified Purchase

Whelen LED Red/White Beacon 14V 9052055

May 30, 2023

Extremely bright and 15 minute install. A bit overpriced but happy with the product.

David A Verified Purchase

Whelen LED Red/White Beacon 14V 9052055

May 12, 2022

Bill L Verified Purchase

Whelen 9052001 Red/White 28VDC

September 18, 2021

Drop in replacement for the whelen A470 strobe assembly.

Fairbanks A Verified Purchase

Whelen LED Red/White Beacon 14V 9052055

September 14, 2021

shirring was fast, and the install was easy on my 1968 cherokee

Nicholas B Verified Purchase

Whelen LED Red/White Beacon 14V 9052055

July 24, 2021

Had a Whelen unit, mfg in 1984, in my C172F. Nearly 40 yrs later the Strobe was inoperative. So ... a search on the Whelen website & an e-mail with photos asking what would work with my system lead me to purchasing the Red/White Beacon from Aircraft Spruce to be used under the fuselage. Easy ordering, sent out virtually the same day and arrived to the wilds of Wyoming within a couple of days. Timed the install with an AP to assist me. Figured out Red to the front White to the back. Then the head scratching deciding how that was accomplished with the (3) hole attachment. Thought the holes would have been drilled symmetrical ... but .... nope. Once figured out then an easy installation. Electrical hookup a breeze ... then ... the test!! All I can say is .... dont look directly at the unit when ON! Its rather blinding. Which is GOOD. So .... an extended 6 week trip will see how it holds up. Should at least be seen @ night.

Michael C Verified Purchase

Whelen LED Red/White Beacon 14V 9052055

June 25, 2021

Oh very impressive lot! Installation was a breeze on my 172. I cannot say anything good about the price though. That price is outrageous.

Weston F
February 16, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this a legal replacement for a Whelen A469A strobe?

Per the supplier: This is a LED replacement but it depends on the aircraft as these are STC'd.

Q: What is the difference between the 5-hole mount and the 5-hole lower mount?

Lower mount has a drain hole in it.

Q: On model # 9052051 - 14 volt, it comes with a mount. what is the mount for and/or can you send me a picture?

The mount is part of the assembly. Please review the 'Documents' tab. We have posted the dimensional drawing so you can get a better understanding of the assembly.

Q: WHEELEN LED RED/WHITE BEACON 14V #9052055 ... Spruce # 11- 09908 .... do I need a mount? Is it the A440? Or does a mount come with it?

This unit, p/n 11-09908, does have a 3-3/4" mount that would fit a Whelen A440 style mount, or same size fairing. Base has 3 mounting holes to attach to an A440 or like fairing.

Q: Does this unit require a separate strobe power supply, or can it be wired direct from the switch?

There is no separate power supply required. You can wire this directly from the switch.

Q: Regarding WHELEN LED FLASHING BEACON (RED & WHITE) 90520 SERIES: Does the red face towards the front of the aircraft and the white towards the back or the other way around?

The mounting holes are "keyed" so that it can only be mounted red forward.

Q: Can this be installed as a new addition to a plane? My 150 currently doesnt have strobe/beacon lights. The STC mentions it being installed as a replacement. Does the STC still hold for a new install with a 337?

The STC would cover such an installation.

Q: Is this Whelen LED 90520 light a PMA part?

It is TSO compliant.

Q: I have a Whelen 70509 Beacon mounted on the bottom of my plane. Is there an adapter that makes this a simple replacement?

The 9052001 comes with a universal mounting adapter plate and will fit the original hole pattern of the 70509 assembly. This should be a very straightforward install.

Q: What size breaker and gauge wire to mount 15 feet from switch?

The max output on the 01-0790520-01 (11-07615) is 2amps. We recommend 1.25 times the max output so a 3 amp breaker should be sufficient. In regards to the wiring the customer can utilize 18 gauge wire 2 conductor.
